2: Overview
2
The max input/output current is de-rated to 16A when using the optional NEMA
5-20P (20A) cable (p/n SLPP012410-01, SLPP012510-01, SLPP012610-01).

Serial Connections

All devices attached to the device ports and the console port must support the RS-232C
(EIA-232) standard. Category 5 cabling with RJ45 connections is used for the device port
connections and for the console port. (For pinout information, see D: Adapters and
Pinouts.)
Note: RJ45 to DB9/DB25 adapters are available from Lantronix.
Device ports and the console port support eight baud-rate options: 300, 600, 1200, 2400,
4800, 9600, 19200, 38400, 57600, and 115200 baud.

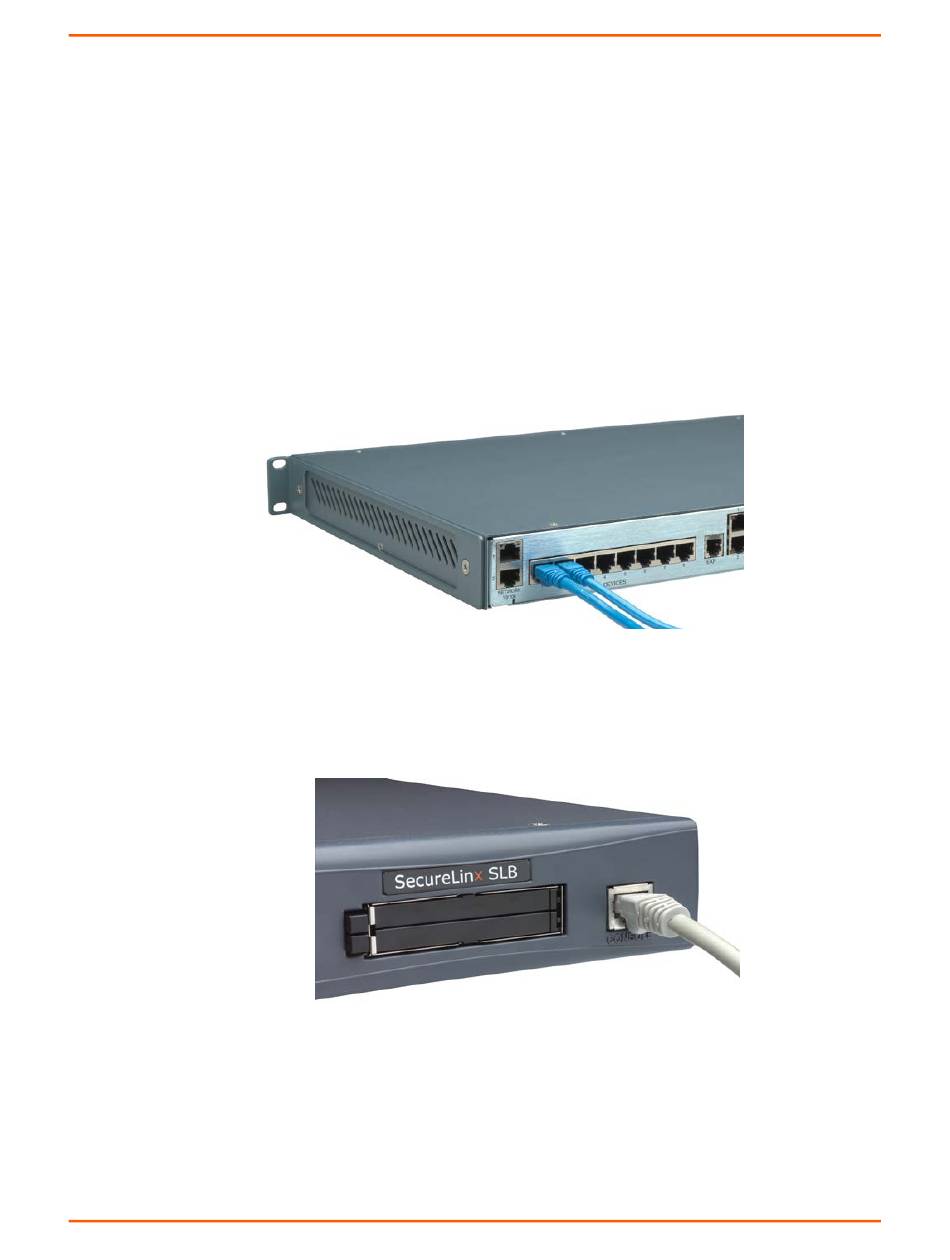

Figure 2-3. Device Port Connections

Figure 2-4. Console Port Connection

SLB™ Branch Office Manager User Guide 20
