3: Installation

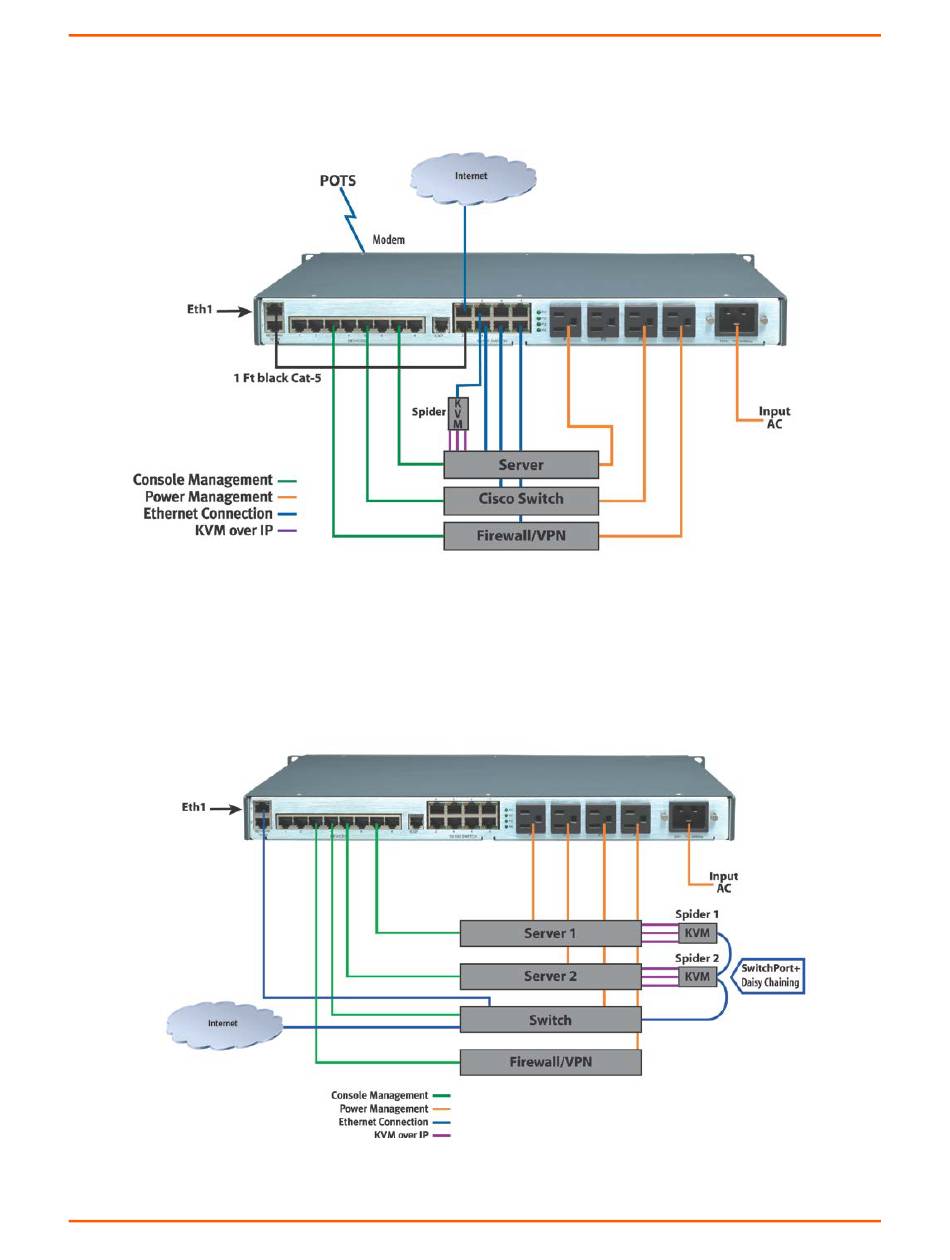

Figure 3-4. SLB Installation Using the Integrated Ethernet Switch
In
Figure
3-5, the SLB branch office manager controls four serial devices and
provides power to them. The devices use a managed switch to connect to the
network. The figure also shows how Lantronix Spiders can be daisy chained.
Figure 3-5. SLB Installation Using a Managed Switch
SLB™ Branch Office Manager User Guide
28
