- Page 1 SISTP1040-342-LRT SISTP1040-382-LRT SISTP10x0-3xx-LRT Series Unmanaged Hardened Gigabit Ethernet PoE+ Switches Install Guide Part Number 33733 Revision G April 2022...
- Page 2 Intellectual Property © 2021-2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Safety Warnings And Cautions
Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale. -
Page 4: Table Of Contents
Lantronix SISTP10x0-3xx-LRT Install Guide Contents ............................. 3 Safety Warnings and Cautions ..............................5 About This Manual ..............................5 Related Information ................................5 Key Features ..............................5 Ordering Information ................................6 Specifications .................................10 Front Panel ............................10 Back and Bottom Panels ................................11 RESET Button ..............................12... -
Page 5: About This Manual
This manual describes how to install, configure, and troubleshoot the SISTP10x0-3xx-LRT switches. It also describes how to determine LED meanings and how to reset the switch. Related Information A printed Quick Start Guide is shipped with each SISTP10x0-3xx-LRT. For Lantronix Drivers, Firmware, Manuals, Brochures, Data Sheets, etc. go to the Lantronix Technical Resource Center. -
Page 6: Specifications
Lantronix SISTP10x0-3xx-LRT Install Guide Specifications Port Configuration RJ45 Available PoE Model Total Ports Console (10M/100M/1G) (100M/1G) Power SISTP1040-342-LRT 120W SISTP1040-382-LRT 240W Hardware Performance Forwarding Switching Mac Table Jumbo Frames Model Capacity (Mpps) Capacity (Gbps) (Bytes) SISTP1040-342-LRT 8.928 SISTP1040-382-LRT 14.88 Environmental Ranges... - Page 7 Lantronix SISTP10x0-3xx-LRT Install Guide PoE Power Capacity Available PoE Model Number of Ports That Support PoE (15.4W) and PoE+ (30.0W) Power SISTP1040-342-LRT 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power SISTP1040-382-LRT 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power...
- Page 8 Lantronix SISTP10x0-3xx-LRT Install Guide DC Power Consumption SISTP1040-382-LRT 1. DC 52V Input (SISTP1040-382-LRT) DC Current DC Power Status Operation Interface DC Voltage (V) Consumption (A) Consumption (W) Non-loading None 0.07 3.64 1G TP Port x 8 Standby mode 4.55 236.60...
- Page 9 Lantronix SISTP10x0-3xx-LRT Install Guide SISTP1040-342-LRT 1. DC 52V Input (SISTP1040-342-LRT) DC Current DC Power Status Operation Interface DC Voltage (V) Consumption (A) Consumption (W) Non-loading None 0.07 3.64 1G TP Port x 4 Standby mode 2.29 119.08 1G SFP Port x 2...
-
Page 10: Front Panel

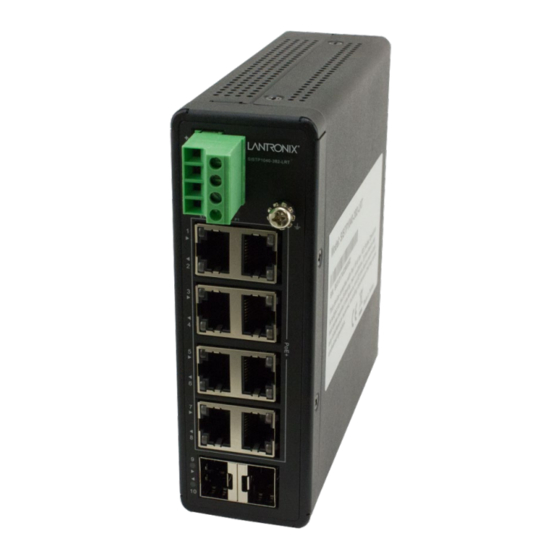

Lantronix SISTP10x0-3xx-LRT Install Guide Front Panel The SISTP1040-382-LRT front panel is shown below. Back and Bottom Panels The SISTP1040-382-LRT back and bottom panels are shown below. Back: Bottom: Page 10 of 31 33733 Rev. G https://www.lantronix.com/... -
Page 11: Reset Button
Lantronix SISTP10x0-3xx-LRT Install Guide RESET Button You can press the bottom panel RESET button to reboot the switch. Page 11 of 31 33733 Rev. G https://www.lantronix.com/... -
Page 12: Installation And Setup
Lantronix SISTP10x0-3xx-LRT Install Guide Installation and Setup Unpacking/ Package Contents Carefully unpack the switch. Please save the packing material for possible future use. Make sure you have received these items: • One Switch with Terminal Block attached • One printed Quick Start Guide Four rubber feet •... -
Page 13: Mounting The Switch On A Din Rail
Lantronix SISTP10x0-3xx-LRT Install Guide Mounting the Switch on a DIN Rail 1. Attach the DIN Rail mounting kit to the rear panel of the chassis. Insert screws and tighten with a screwdriver to secure the kit. 2. Insert the upper lip of the DIN rail into the DIN-rail mounting kit and press the switch towards the DIN rail until it snaps into place. -
Page 14: Install And Connect Sfps Via Fiber Optic Cable
Install and Connect SFPs via Fiber Optic Cable The Switch lets you install a Small Form-Factor Pluggable (SFP) device of your choice to make a fiber connection via the 100/1000Base-X SFP Ports. See the Lantronix SFP page for SFP models. See the related SFP manual for safety precautions and warnings specific to your SFP model. -
Page 15: Poe / Poe+ Spec Comparison
Lantronix SISTP10x0-3xx-LRT Install Guide PoE / PoE+ Spec Comparison PoE Plus (PoE+) provides extended support for new end devices with higher power requirements. The IEEE 802.3at standard provides up to 30W of power to include newer end devices such as IEEE 802.11n wireless access points, security surveillance cameras, etc. -
Page 16: Grounding
Lantronix SISTP10x0-3xx-LRT Install Guide Grounding After the Switch is mounted and connected, the front panel grounding screw ( ) can be used for grounding. Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting devices. -
Page 17: Power Supply Features And Specifications
Lantronix SISTP10x0-3xx-LRT Install Guide Power Supply Features and Specifications The Industrial Power Supplies (25104 and 25105) are optional accessories (sold separately). 25104 Input: 85-264 VAC, 124-370 VDC. Output: 48~55 VDC, 5.0A, 240 Watts. • 25105 Input: 85-264 VAC, 124-370 VDC. Output: 48~55 VDC, 2.5A, 120 Watts. -
Page 18: Industrial Power Supply 25104
Lantronix SISTP10x0-3xx-LRT Install Guide Industrial Power Supply 25104 Output Output Voltage 48VDC Current Rating Power Rating 240 Watts Ripple & Noise Max 120mVp-p Voltage Range 48~55VDC Voltage Tolerance ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Setup, Rise Time 300ms, 60ms... -
Page 19: Connecting To Power
Lantronix SISTP10x0-3xx-LRT Install Guide Connecting to Power After the Switch is mounted, connected, and grounded, use he Terminal Block (Euro Block) to provide DC Power Inputs P1 and P2. Warning: Connect the wires to the terminal block before plugging power into the Switch product. Plug the Terminal Block into the switch before powering on. -
Page 20: Led Descriptions
Lantronix SISTP10x0-3xx-LRT Install Guide LED Descriptions The front panel LEDs provide switch status checking and monitoring. The three types of LEDs are: • PWR (Power) LEDs indicate if the switch is powered up correctly. • SYS (System) LED indicates if the system is ready. - Page 21 Lantronix SISTP10x0-3xx-LRT Install Guide The front panel port status LEDs are described below. Color State Description The port is enabled and established a link to connected device, and the Green connection speed is 1000Mbps. The port is transmitting/receiving packets, and the connection speed is...
-
Page 22: Troubleshooting
Lantronix SISTP10x0-3xx-LRT Install Guide Troubleshooting General Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see Specifications on page 6. 2. Check if the correct power cord is connected firmly to the switch and to the DC outlet socket. -
Page 23: Led Troubleshooting
Lantronix SISTP10x0-3xx-LRT Install Guide LED Troubleshooting Symptom Possible Cause Suggested Solution 1. Check if correct power cord is connected firmly to the switch and to the DC outlet socket. The switch is not 2. Perform power cycling the switch by unplugging and plugging the System LED is Off receiving power. - Page 24 • 802.3af/at "compatible" PDs typically can provide power using only Mode B. Typical PD Power Requirements 1.8 Watts: Lantronix’ M/GE-ISW-SFP-01-PD (Class 1 Powered Device (0.44 Watts - 3.84 Watts). • 13W: IP Camera, VoIP Phone, Wireless Access Point, Networked Audio.
-
Page 25: Troubleshooting Poe Problems
2. PoE cables are intended for intrabuilding use only. Connecting your Lantronix switch directly to PoE cables that run outside the building in which the switch is housed will void the user's warranty and could create a fire or shock hazard. - Page 26 Lantronix SISTP10x0-3xx-LRT Install Guide 13. Pre-standard and post-standard VoIP phones may use different detection and connect / disconnect methods. Note that PD detection occurs when an Ethernet device is first connected to a PoE port. If a non-PoE device is connected to a PoE port, detection is deactivated.
-
Page 27: Declaration Of Conformity
Lantronix SISTP10x0-3xx-LRT Install Guide Declaration of Conformity Declaration of Conformity Manufacture’s Name: Lantronix, Inc. Manufacture’s Address: 7535 Irvine Center Drive, Suite100, Irvine, CA 92618, USA Declares that the products: SISTP1010-360-LRT, SISTP1010-380-LRT-C, SISTP1040-342-LRT, SISTP1040-382-LRT, SISTG1040-242-LRT, SISTG1040-282-LRT Conform to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010 Directive 2014/30/EU, Directive 2015/863/EU Low-Voltage Directive 2014/35/EU IEC 62368-1:2014 (Second Edition);... -
Page 28: Cautions And Warnings
Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. - Page 29 Lantronix SISTP10x0-3xx-LRT Install Guide Warning and Caution - Proper Installation and Operation (English) These devices are open-type devices that are to be installed in an enclosure only accessible with the use of a tool, suitable for the environment. This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or non-hazardous locations only.
- Page 30 Describe any action(s) already taken to resolve the problem (e.g., changing switch mode, rebooting, etc.): ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ The serial and revision numbers of all involved Lantronix products in the network: ________________________________________________________________________________________ A description of your network environment (layout, cable type, PoE / PoE+, PD, etc.): __________________ ________________________________________________________________________________________...
- Page 31 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 31 of 31 33733 Rev. G https://www.lantronix.com/...
