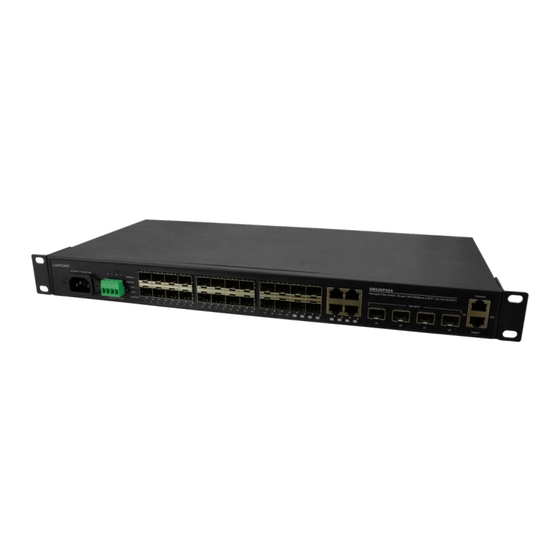

SM24DP4XA

Managed Gigabit Ethernet Fiber Switch

Install Guide

(20) 100/1000Base-X SFP Slots + (4) 100/1000Base SFP/RJ-45 Combo Ports + (4) 1G/10GBase-X SFP+ Slots

Part Number 33769

Revision F October 2024

Table of Contents

Troubleshooting

Need help?

Do you have a question about the SM24DP4XA and is the answer not in the manual?

Questions and answers

Summary of Contents for Lantronix SM24DP4XA

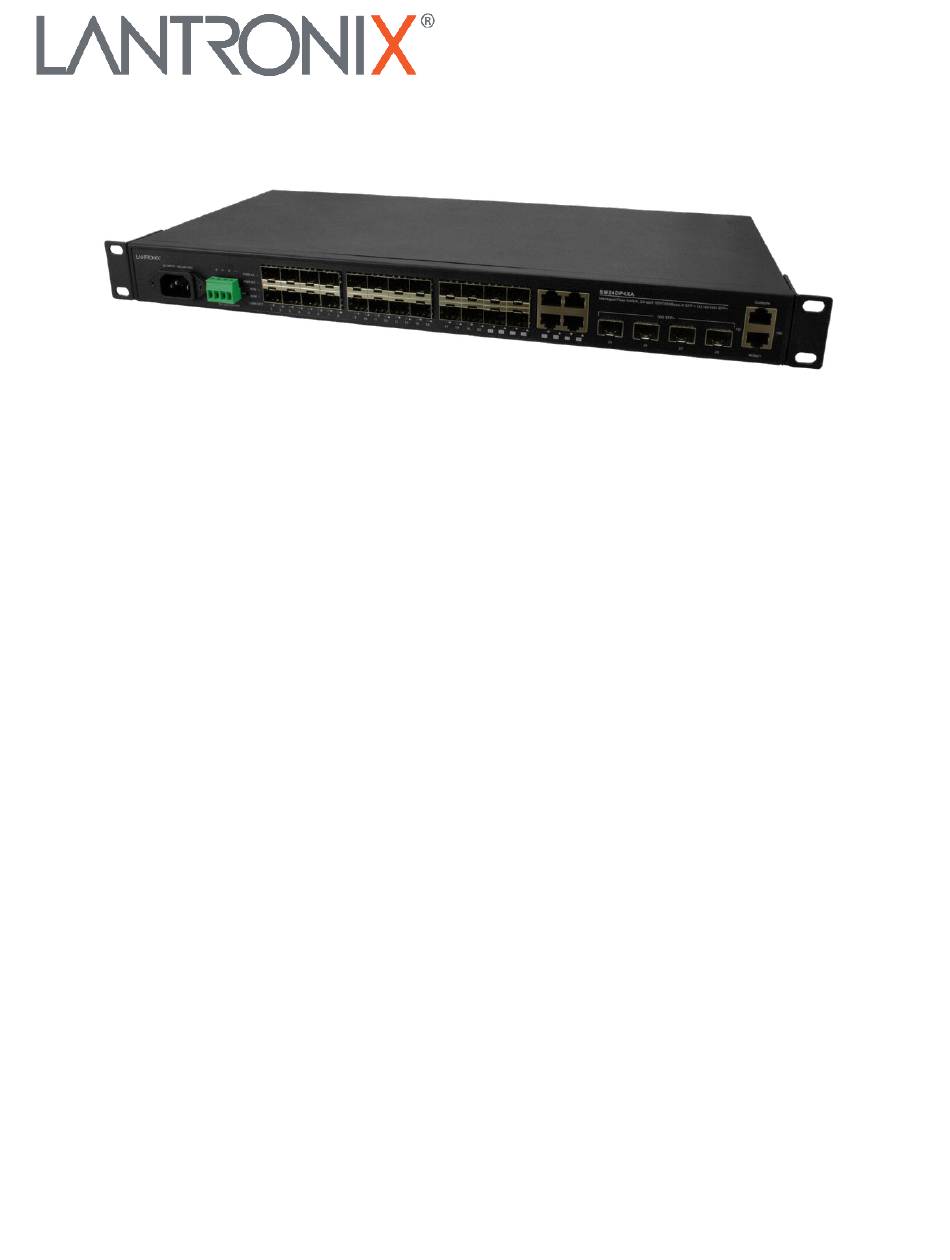

Page 1 SM24DP4XA Managed Gigabit Ethernet Fiber Switch Install Guide (20) 100/1000Base-X SFP Slots + (4) 100/1000Base SFP/RJ-45 Combo Ports + (4) 1G/10GBase-X SFP+ Slots Part Number 33769 Revision F October 2024...
Page 2: Intellectual Property
SM24DP4XA Install Guide Intellectual Property © 2022-2024 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
Page 3: Table Of Contents
Lantronix SM24DP4XA Install Guide Contents Safety Warnings and Cautions ..........................4 Chapter 1 - Overview ..............................5 Key Features ................................5 Benefits ..................................5 Ordering Information ..............................6 Specifications ................................6 Software Features ..............................7 Front Panel ................................17 LEDs ..................................18 RST (Reset) button ............................... 20 Back Panel ................................
Page 4: Safety Warnings And Cautions
Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale.
Page 5: Chapter 1 - Overview
Chapter 1 - Overview The SM24DP4XA is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports; it’s an ideal switch for fiber aggregation applications.
Page 6: Ordering Information
Lantronix SM24DP4XA Install Guide expenditures and allows for troubleshooting without expensive truck rolls. Ordering Information Description Managed fiber switch, (20) 100/1000BASE-X + (4) 100/1000 SFP/RJ-45 Combo + (4) SM24DP4XA 1G/10G SFP+ with 19” Rack Mount ears included 25131 Industrial DIN rail mounted Power Supply, 48VDC, 76.8Watts (option;...
Page 7: Software Features
Lantronix SM24DP4XA Install Guide Voltage and Frequency Input Voltage and Frequency AC Voltage Single 100-240 VAC AC Frequency 50-60 Hz DC Voltage Dual +24/+48 VDC or -24V/-48V VDC Industry Standards IEEE 802.3™, IEEE 802.3u, IEEE 802.3z, IEEE802.3ae, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, Standard IEEE 802.1w, IEEE802.1s IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad,IEEE 1588v2, IEEE802.3ah,...
Page 8 Lantronix SM24DP4XA Install Guide Used to support a Layer 2 multicast domain of snooping switches in the absence of a IGMP Querier multicast router IGMP snooping with proxy reporting or report suppression actively filters IGMP IGMP Proxy packets in order to reduce load on the multicast router...
Page 9 Lantronix SM24DP4XA Install Guide Quality of Service (QoS) Supports 8 hardware queues Hardware Queue • Strict priority and weighted round-robin (WRR) Scheduling • Queue assignment based on DSCP and class of service • Port based • 802.1p VLAN priority based Classification •...
Page 10 APIs and data dashboards. See the Percepxion product page. Lantronix Provisioning Manager is a software application that provisions, configures and updates Lantronix devices for local site installations and deployments. LPM discovery is enabled by default and is not configurable. See the LPM product page.
Page 11: Power Consumption
Lantronix SM24DP4XA Install Guide Power Consumption DC Power Consumption Measure the DC power consumption after 60 minutes under full loading with wire speed forwarding. DC Input: 24V DC Current DC Power Status Operating Interface DC Voltage (V) Consumption (A) Consumption (W)
Page 12 Lantronix SM24DP4XA Install Guide DC Input: 48V DC Current DC Power Status Operation Interface DC Voltage (V) Consumption (A) Consumption (W) Non-loading None 0.37 17.76 20-Port 1G SFP Full-load 4-Port 1G RJ45 0.82 39.36 5 minutes 4-Port 10G SFP 20-Port 1G SFP...
Page 13 Lantronix SM24DP4XA Install Guide AC Power Consumption * Measure the AC power consumption after 30 minutes under full loading with wire speed forwarding. 1. AC 100V Input AC Current AC Voltage Power Apparent Real Power Status Test Status Consumption Factor...
Page 14 Lantronix SM24DP4XA Install Guide 2. AC 110V Input AC Current AC Voltage Power Apparent Real Power Status Test Status Consumption Factor Power (VA) No Loading None 0.34 0.53 37.40 19.82 20-Port 1G SFP Full-load 5 minutes 4-Port 1G RJ45 0.63 0.54...
Page 15 Lantronix SM24DP4XA Install Guide 3. AC 220V Input AC Current AC Voltage Power Apparent Real Power Status Test Status Consumption Factor Power (VA) No Loading None 0.20 0.45 44.00 19.80 20-Port 1G SFP Full-load 5 minutes 4-Port 1G RJ45 0.37 0.46...
Page 16 Lantronix SM24DP4XA Install Guide 4. AC 240V Input AC Current AC Voltage Power Apparent Real Power Status Test Status Consumption Factor Power (VA) No Loading None 0.19 0.44 45.60 20.06 20-Port 1G SFP Full-load 5 minutes 4-Port 1G RJ45 0.36 0.45...
Page 17: Front Panel
SM24DP4XA Install Guide Front Panel The SM24DP4XA front panel provides the ports, LEDs, buttons, and power inputs as shown and described below. Connectors: Provides 1 Console Port, 1 Management port, 20 100/1000 SFP slots, 4 100/1000 SFP/RJ-45 Combo, and 4 1G/10G SFP+ slots.
Page 18: Leds
Lantronix SM24DP4XA Install Guide LEDs The front panel LEDs provide with switch status checking and monitoring as shown and described below. AC/DC Power LED: Indicates if the switch is powered up correctly. SYS (System) Status LED : Indicates if the system is ready.
Page 19 Lantronix SM24DP4XA Install Guide Table 4: Port Status LEDs Color State Description The port is enabled and established a link to connected device, and the Green connection speed is 1000Mbps. The port is transmitting/receiving packets, and connection speed is Green Blinking 1000Mbps.
Page 20: Rst (Reset) Button
Back Panel The SM24DP4XA back panel provides the Ground Screw as shown below. Side Panel The SM24DP4XA left side panel has two fans. Make sure that the left side panel fan vents are not blocked after installation. 33769 Rev. F...
Page 21: Manual Overview
• • Troubleshoot the switch. Note that this manual provides links to third party web sites for which Lantronix is not responsible. For More Information A printed Quick Start Guide is shipped with each device. For Lantronix Documentation, Firmware, App Notes, etc. go to https://www.lantronix.com/technical-support/.
Page 22: Chapter 2 - Installing The Switch
5. Reliable Earthing: maintain reliable earthing of rack-mounted equipment; pay particular attention to supply connections other than direct connections to the branch circuit (e.g., use of power strips). Note: The SM24DP4XA left side panel has two fans. Do not block the left side panel fan vents during installation. 33769 Rev. F...
Page 23: Mounting The Switch In A 19-Inch Rack
Lantronix SM24DP4XA Install Guide Mounting the Switch in a 19-inch Rack 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten with a screwdriver to secure the brackets. 2. Place the switch on a rack shelf in the rack. Push it in until the oval holes in the brackets align with the mounting holes in the rack posts.
Page 24: Grounding The Switch
Lantronix SM24DP4XA Install Guide Grounding the Switch The SM24DP4XA back panel provides the Ground Screw as shown below. ATTENTION: This case must be earth grounded. No DC input may be earth grounded. Use Isolated Power Supply. Installing SFP Modules You can install or remove a mini-GBIC SFP/SFP+ module from an SFP/SFP+ port without having to power off the switch.
Page 25: Connecting Network Devices
Lantronix SM24DP4XA Install Guide Connecting Network Devices The switch is designed to be connected to 10, 100 or 1000Mbps network cards in PCs and servers, as well as to other switches and hubs. It may also be connected to remote devices using optional SFP transceivers.
Page 26 Lantronix SM24DP4XA Install Guide Network Wiring Connections The punch-down block is an integral part of many of the newer equipment racks. It is a part of the patch panel. Instructions for making connections in the wiring closet with this type of equipment follows.
Page 27: Ac/Dc/Dc Redundant Power
Lantronix SM24DP4XA Install Guide AC/DC/DC Redundant Power The three power inputs (AC/DC/DC) are redundant but in active/standby mode. There is failover between the three inputs but selecting primary and secondary is not supported. To select the primary and secondary inputs: 1.
Page 28: Connecting To Dc Power
SM24DP4XA Install Guide Connecting to DC Power The SM24DP4XA supports dual 24/48 VDC or -24/-48 VDC inputs. The power source must be powered off when connecting and disconnecting this product. 1. Insert the negative or positive voltage DC power source wires into the DC INPUT terminals, respectively as shown below: 2.
Page 29 Lantronix SM24DP4XA Install Guide 3. Insert the terminal block connector prongs into the terminal block receptor. 4. Turn the power source On. 5. Check the SYS LED. If it is ON, the power connection is correct. Connecting DC Power Input 33769 Rev.
Page 30: Power Supply Specifications
Lantronix SM24DP4XA Install Guide Power Supply Specifications Two DC Power Supply options are available which must be ordered separately. 25131 for 48VDC 25131 Industrial DIN rail mounted power supply, 48VDC, 76.8 Watts See https://www.lantronix.com/products/25131-2/. 25131 Features Auto-Negotiation Variable AC input range...
Page 31 Lantronix SM24DP4XA Install Guide 25131 Product Views 33769 Rev. F https://www.lantronix.com/...
Page 32: Optional Power Supply 25175
Lantronix SM24DP4XA Install Guide Optional Power Supply 25175 25175 Features Variable AC input range • Protected against Short Circuit, Overload, Over Voltage, Overheating • • Convection air cooling • DIN rail mountable - can be mounted on a TS35 Standard DIN rail (TS35/7.5 or 15) •...
Page 33 Lantronix SM24DP4XA Install Guide 25175 Certifications Safety: UL508, TUV 62368-1; IEC60068-2-6 (Vibration); EMC Emission: EN55032(CISPR32), EN61204-3 Class B, EN61000-3-2, EN61000-3- EMC Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024, EN61000-6-2, EN50082-2, EN61204-3, EAC TP TC 020 Warranty 5 Years...
Page 34: 25175 Installation
Lantronix SM24DP4XA Install Guide 25175 Installation 1. Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit in use to prevent it from overheating. Also, a 10-15 cm clearance must be kept when the adjacent device is a heat source.
Page 35 Lantronix SM24DP4XA Install Guide For rail fastening：（a）Tilt the unit slightly rearwards. （b）Fit the unit over top hat rail. （c）Slide it downward until it hits the stop. （d）Press against the bottom for locking. （e）Shake the unit slightly to ensure the locking action.
Page 36 Lantronix SM24DP4XA Install Guide Terminal Pin Assignments 25175 Install Views 33769 Rev. F https://www.lantronix.com/...
Page 37 Lantronix SM24DP4XA Install Guide +V ADJ Screw A small front panel hole provides access to a small Phillips screw; turn clockwise to increase or decrease voltage. Adjustable from 24V to 28VDC. No adjustment is usually needed. The 25175 power supply ships from the factory set to 24 VDC.
Page 38: Chapter 3 - Initial Switch Setup
Lantronix SM24DP4XA Install Guide Chapter 3 - Initial Switch Setup Initial Switch Setup via Web Browser After powering up the switch for the first time, you can perform the initial switch setup using a web browser. For managing switch features, see the Web User Guide for details.
Page 39: Initial Switch Setup Via Cli
Data bits: Parity: Flow control: none The command-line interface (CLI) is a text-based interface. You can access the CLI through either a direct serial connection to the switch or a Telnet session. The SM24DP4XA default values are: Username: admin Password: admin After you login successfully, the prompt displays as if you are the first person to login;...
Page 40: Chapter 4 - Troubleshooting
Lantronix SM24DP4XA Install Guide Chapter 4 - Troubleshooting Basic Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see Key Features on page check the Release Notes for your firmware version. 2. Verify the install process; see Chapter 2 –...
Page 41: Led Troubleshooting
Lantronix SM24DP4XA Install Guide LED Troubleshooting Type Color Function Global PWR AC Green Lights when AC power is on. Global PWR DC Green Lights when DC power is on. Blinking when system is booting; Global Green Lit when system is coming up.
Page 42: Record Device And System Information
Describe any action(s) already taken to resolve the problem (e.g., changing mode, rebooting, etc.): ________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ The model and serial numbers of other Lantronix products in the network: _____________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Describe your network environment (layout, cable type, etc.): ________________________________________________________...
Page 43: Chapter 5 - Regulatory And Safety Information
High Risk Activities. Accessibility Statement In our effort to help provide a fully accessible and optimized experience for our website visitors, lantronix.com has taken careful measures to help ensure an enhanced user experience, whether the website visitor is using assistive technologies such as a screen reader, magnifier or other assistive technology to access the website.
Page 44: Ce Emc Test
Lantronix SM24DP4XA Install Guide CE EMC Test Standard: EN 55032:2012/AC:2013 Class A EN61000-3-2:2014 EN61000-3-3:2013 AS/NZS CISPR 32:2013 Class A EN 55024:2010/A1:2015 Test Standards Test Item Test Standard and Procedure Radiated and Conducted European Standard EN 55032 Class A. Australian Standard AS/NZS CISPR 32...
Page 45: Eu Declaration Of Conformity
Lantronix SM24DP4XA Install Guide EU Declaration of Conformity 33769 Rev. F https://www.lantronix.com/...
Page 46: Uk Declaration Of Conformity
Lantronix SM24DP4XA Install Guide UK Declaration of Conformity 33769 Rev. F https://www.lantronix.com/...
Page 47: Cautions And Warnings
Lantronix SM24DP4XA Install Guide Cautions and Warnings Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and understand the information identified by this symbol could result in poor equipment performance, damage to the equipment, or injury to persons.
Page 48: Electrical Safety Warnings
Lantronix SM24DP4XA Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne.
Page 49 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33769 Rev. F https://www.lantronix.com/...
