INVT Goodrive350A Series Operation Manual page 412

Goodrive350A series high-performance multifunction VFD
Input reactor
VFD model
GD350A-1R5G/2R2P-4
GD350A-2R2G/003P-4
GD350A-004G/5R5P-4
GD350A-5R5G/7R5P-4
GD350A-7R5G/011P-4
GD350A-011G/015P-4
GD350A-015G/018P-4
GD350A-018G/022P-4
GD350A-022G/030P-4
GD350A-030G/037P-4
GD350A-037G/045P-4
GD350A-045G/055P-4
GD350A-055G/075P-4
GD350A-075G/090P-4
GD350A-090G/110P-4
GD350A-110G/132P-4
GD350A-132G/160P-4
GD350A-160G/185P-4
GD350A-185G/200P-4
GD350A-200G/220P-4
GD350A-220G/250P-4
GD350A-250G/280P-4
GD350A-280G/315P-4

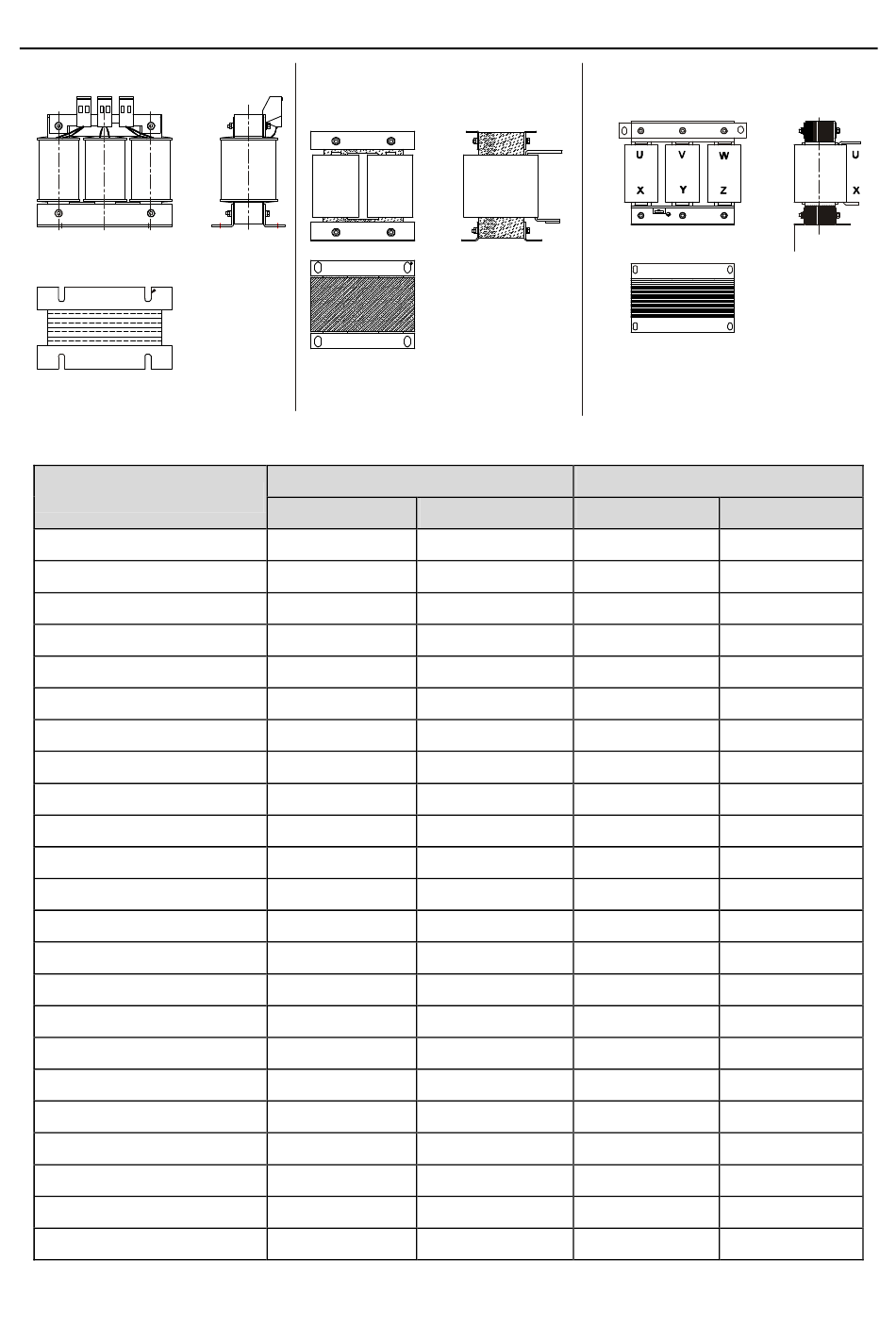

Table D.3 Reactors for AC 3PH 380V(-15%)–440V(+10%)
Input reactor
G type
ACL2-1R5-4
ACL2-2R2-4
ACL2-004-4
ACL2-5R5-4
ACL2-7R5-4
ACL2-011-4
ACL2-015-4
ACL2-018-4
ACL2-022-4
ACL2-037-4
ACL2-037-4
ACL2-045-4
ACL2-055-4
ACL2-075-4
ACL2-110-4
ACL2-110-4
ACL2-160-4
ACL2-160-4
ACL2-200-4
ACL2-200-4
ACL2-280-4
ACL2-280-4
ACL2-280-4
DC reactor
P type
ACL2-2R2-4
ACL2-004-4
ACL2-5R5-4
ACL2-7R5-4
ACL2-011-4
ACL2-015-4
ACL2-018-4
ACL2-018-4
ACL2-037-4
ACL2-037-4
ACL2-045-4
ACL2-055-4
ACL2-055-4
ACL2-075-4
ACL2-110-4
ACL2-160-4
ACL2-160-4
ACL2-200-4
ACL2-200-4
ACL2-280-4
ACL2-280-4
ACL2-280-4
ACL2-350-4
-407-
Optional peripheral accessories
Output reactor
Output reactor
G type
OCL2-1R5-4 OCL2-1R5-4
OCL2-2R2-4 OCL2-2R2-4
OCL2-004-4 OCL2-5R5-4
OCL2-5R5-4 OCL2-7R5-4
OCL2-7R5-4 OCL2-011-4
OCL2-011-4 OCL2-015-4
OCL2-015-4 OCL2-015-4
OCL2-018-4 OCL2-018-4
OCL2-022-4 OCL2-022-4
OCL2-037-4 OCL2-037-4
OCL2-037-4 OCL2-037-4
OCL2-045-4 OCL2-045-4
OCL2-055-4 OCL2-055-4
OCL2-075-4 OCL2-075-4
OCL2-110-4 OCL2-110-4
OCL2-110-4 OCL2-200-4
OCL2-200-4 OCL2-200-4
OCL2-200-4 OCL2-200-4
OCL2-200-4 OCL2-200-4
OCL2-200-4 OCL2-280-4
OCL2-280-4 OCL2-280-4
OCL2-280-4 OCL2-280-4
OCL2-280-4 OCL2-350-4
P type
