INVT Goodrive350A Series Operation Manual page 23

Goodrive350A series high-performance multifunction VFD

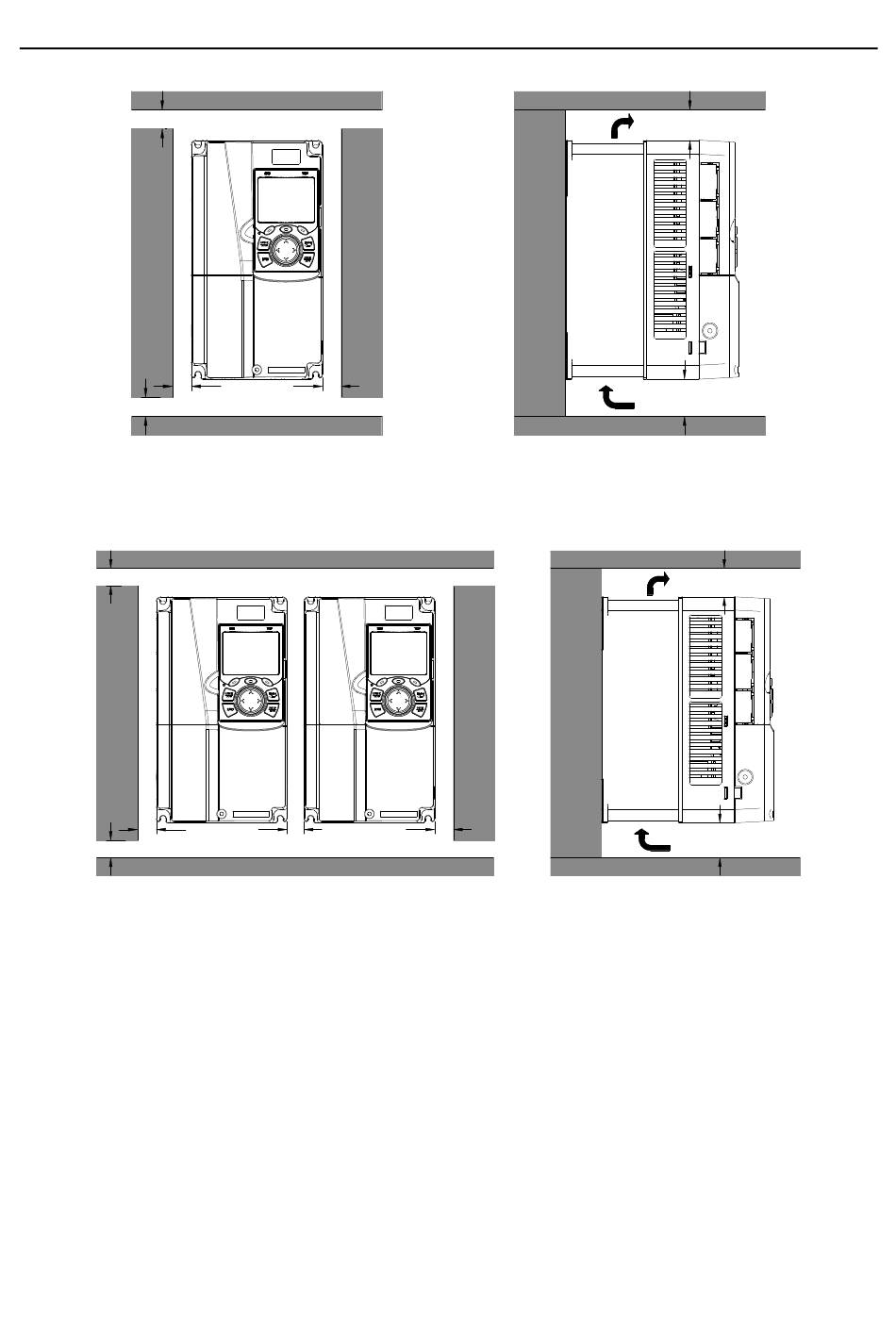

4.2.4 Single-unit installation
A
B
A
Note: The min. dimension of B and C is 100mm.
4.2.5 Multiple-unit installation
A
B
A
Note:

When you install VFDs in different sizes, align the top of each VFD before installation for the
convenience of future maintenance.

The min. dimension of B, D and C is 100mm.
B
Figure 4.3 Single-unit installation
D
B
Figure 4.4 Parallel installation
-18-
Installation guidelines
C
Hot air
Cold air
C
Hot air C
Cold air
C
