Goodrive350A series high-performance multifunction VFD
Function
Name
code
AO1 output lower
P06.17
limit
AO1 output
P06.18 corresponding to
lower limit
AO1 output upper
P06.19
limit
AO1 output
P06.20 corresponding to
upper limit
AO1 output filter
P06.21
time
P06.22 Reserved
P06.23 PTC constant
Description
twice the motor rated synchronous speed)
31: Output torque (Actual value, 100%
corresponds to twice the motor rated torque)
32: AI/AO temperature detection output
33–63: Reserved
Note:
When the output comes from the
programmable card (28–29), if the card is a
Codesys programmable card, P27.00 must
be set to 1.
When AO1 is of the current output type, 100%
corresponds to 20mA; when AO1 is of the
voltage output type, 100% corresponds to
10V; 100% of HDO corresponds to the output
of P06.30.

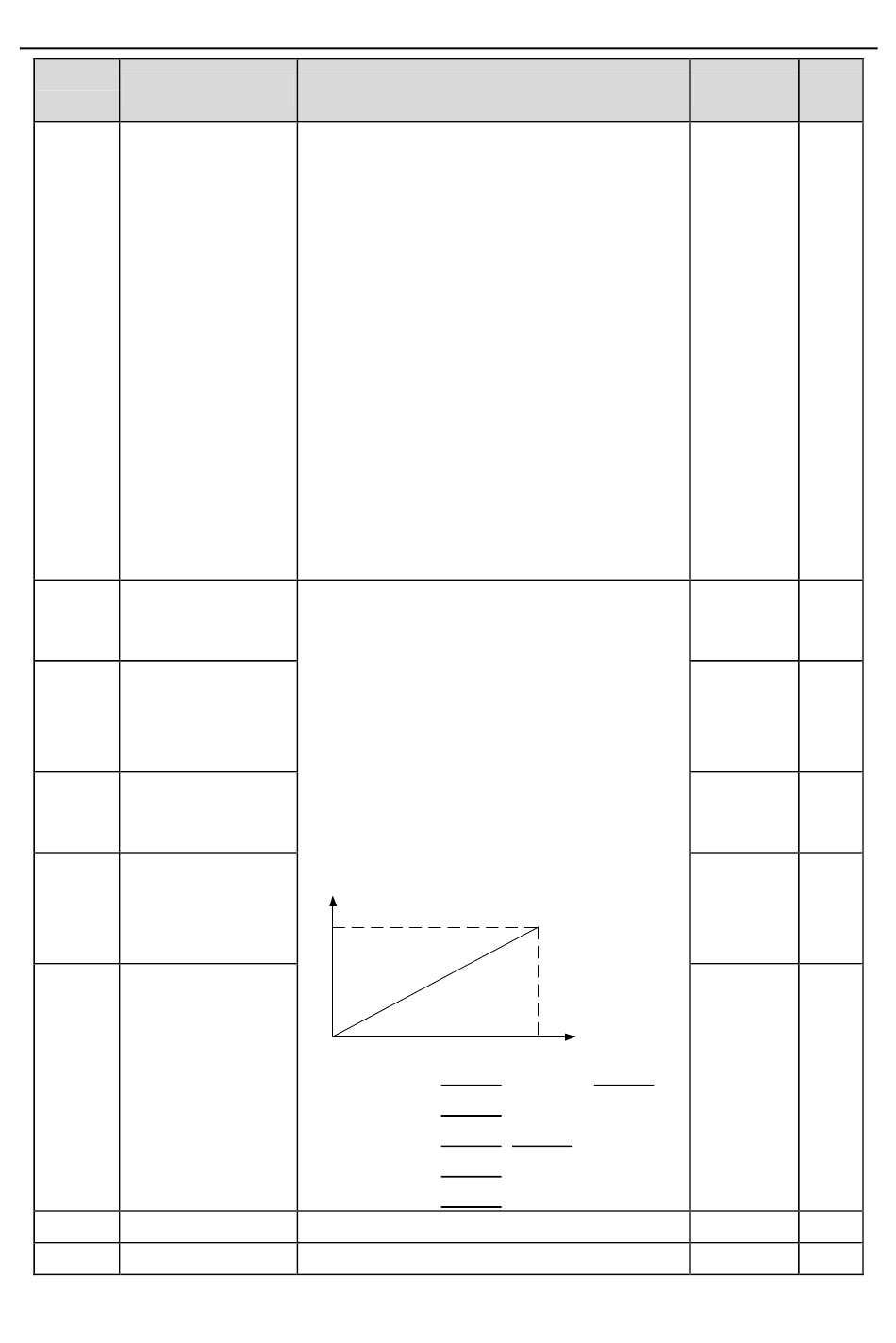

Used to define the relationship between the
output value and analog output. When the
output value exceeds the allowed range, the
output uses the lower limit or upper limit.
When the analog output is current output,
1mA equals 0.5V.
In different cases, the corresponding analog
output of 100% of the output value is different.
See each application for detailed information.
10V (20mA)
AO
0.0%
Setting range of P06.17: -300.0%–P06.19
Setting range of P06.18: 0.00V–10.00V
Setting range of P06.19: P06.17–300.0%
Setting range of P06.20: 0.00V–10.00V
Setting range of P06.21: 0.000s–10.000s
0.000–20.000mA
-183-
Function parameter list
100.0%
Default Modify
○
0.0%
○
0.00V
○
100.0%
○
10.00V
○
0.000s
○
4.000
