5 Basic operation guidelines

5.1 What this chapter contains

This chapter describes how to operate the VFD by using the keypad.

5.2 Keypad introduction

The VFD has been equipped with the LCD keypad as a standard configuration part. You can use the
keypad to control the start and stop, read status data, and set parameters of the VFD.
1
3
7
9
Note:

The LCD keypad is equipped with a real-time clock, which can run properly after being installed
with batteries even if the power line is disconnected. The clock battery (type: CR2032) is user
purchased.

The LCD keypad has the parameter copying function.

If you need install the keypad on another position rather than on the VFD, use M3 screws or a
keypad installation bracket for fixing, and use a keypad extension cable with a standard RJ45
crystal head.
Item
Status
1
indicator
12
5
4
6
11

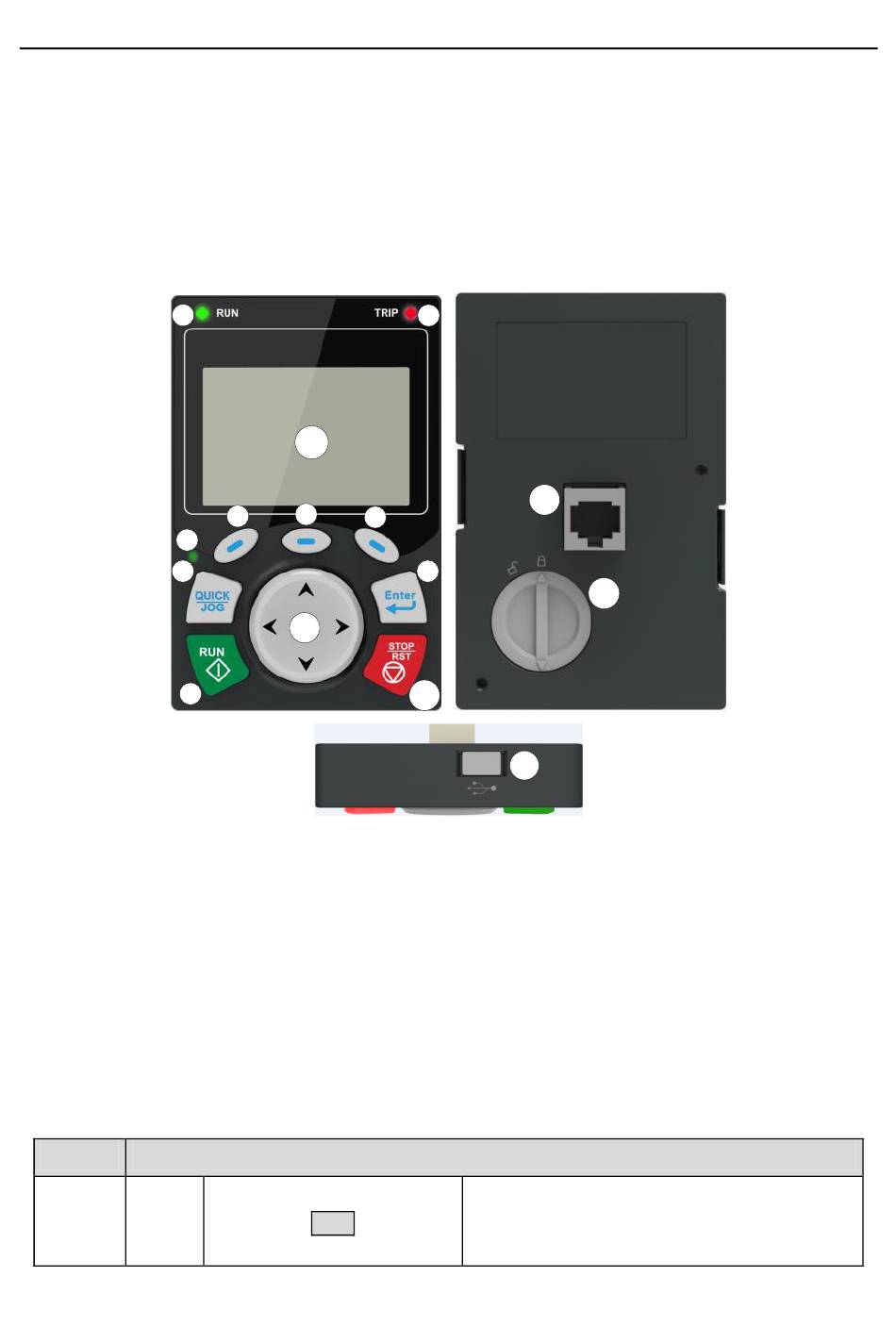

Figure 5.1 Keypad diagram
RUN
2
13
8
10
15
Description
VFD running status indicator.
LED off: The VFD is stopped.
-30-
