INVT Goodrive350A Series Operation Manual page 367

Goodrive350A series high-performance multifunction VFD

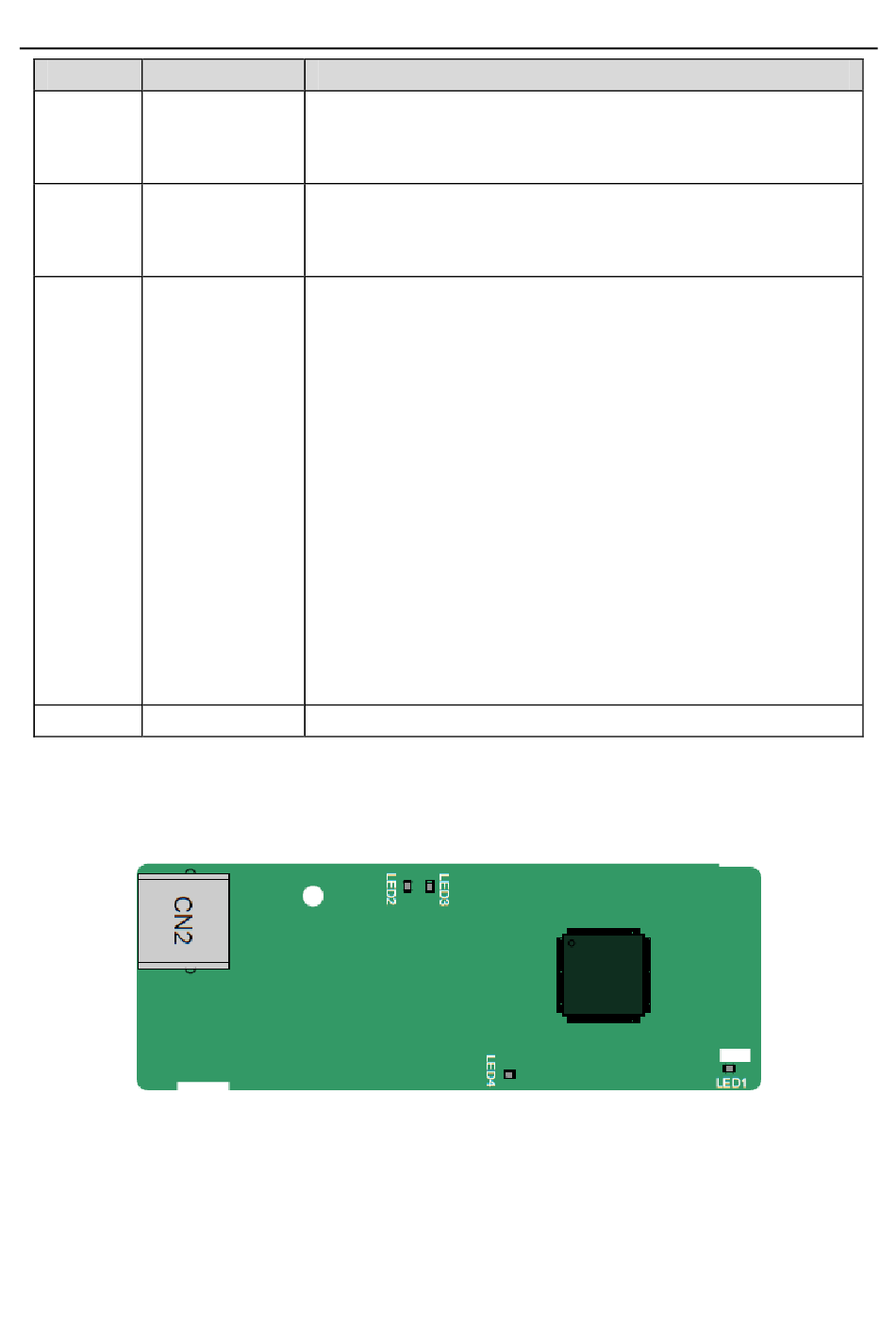

Indicator
LED2 Online indicator
Offline/Fault
LED3
indicator
LED4 Power indicator
For details about the operation, see the Goodrive350 Series VFD Communication Expansion Card
Operation Manual.
A.6.3 Ethernet communication card (EC-TX504)
The EC-TX504 communication card adopts standard RJ45 terminals. It is used only on the upper
computer that supports INVT Workshop. If you want to support the standard EtherNet/IP protocol,
select the card EC-TX510.
Indicator definition
Name
other 0.5s).
Off: The expansion card is disconnected from the control
board.
On: The communication card is online and data exchange can
be performed.
Off: The communication card is not in the online state.
On: The communication card is offline and data exchange
cannot be performed.
Blinks: The communication card is not in the offline state.
Blinks at the frequency of 1 Hz: A configuration error occurs:
The length of the user parameter data set during the
initialization of the communication card is different from that
during the network configuration.
Blinks at the frequency of 2 Hz: User parameter data is
incorrect. The length or content of the user parameter data set
during the initialization of the communication card is different
from that during the network configuration.
Blinks at the frequency of 4 Hz: An error occurs in the ASIC
initialization of PROFIBUS communication.
Off: The diagnosis function is disabled.
On: The control board feeds power to the communication card.
Description
-362-
Expansion cards
