Functional Principle, Technical Data

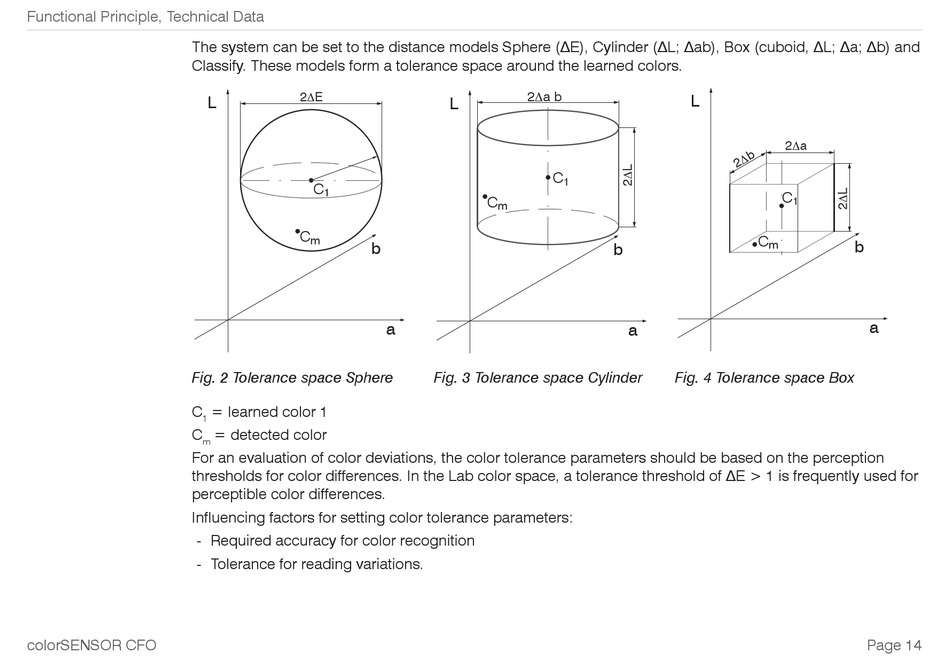

The system can be set to the distance models Sphere (∆E), Cylinder (∆L; ∆ab), Box (cuboid, ∆L; ∆a; ∆b) and
Classify. These models form a tolerance space around the learned colors.
Fig. 2 Tolerance space Sphere
C
1
C
m
For an evaluation of color deviations, the color tolerance parameters should be based on the perception
thresholds for color differences. In the Lab color space, a tolerance threshold of ∆E > 1 is frequently used for
perceptible color differences.
Influencing factors for setting color tolerance parameters:
- Required accuracy for color recognition
- Tolerance for reading variations.
