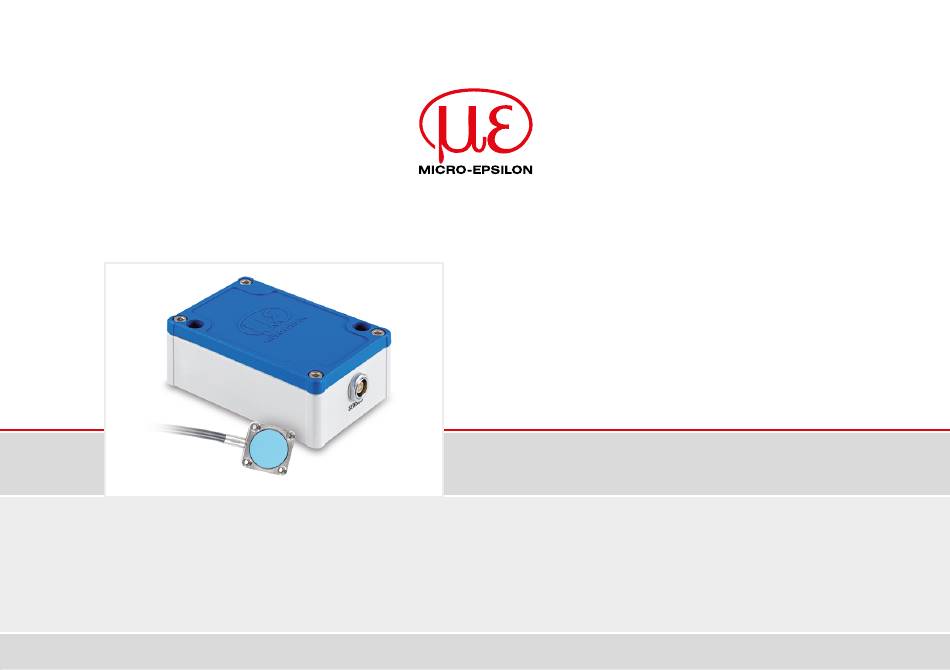

- Page 1 Operating Instructions capaNCDT 6114/6124 CSHA2FL-CRa5 CSHA2FL-CRa15...
- Page 2 Active capacitive measuring system for long signal transmission paths MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Straße 15 94496 Ortenburg / Deutschland Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 e-mail info@micro-epsilon.de www.micro-epsilon.com...
-
Page 3: Table Of Contents
Contents Safety ............................5 Symbols Used ..............................5 Warnings ................................5 Notes on CE Marking ............................6 Intended Use ..............................6 Proper Environment ............................7 Functional Principle, Technical Data ..................8 Measuring Principle ............................8 Structure ................................9 2.2.1 Sensors ............................11 2.2.2 Sensor Cable.......................... - Page 4 RS485 Interface ........................21 Hardware Interface ............................21 Protocol ................................21 5.2.1 Reading Measurements ....................... 22 5.2.2 Scaling of Measurements ......................23 5.2.3 Example for Transmitting Measurements ..................24 5.2.4 Setting the RS485 Address ......................26 Commands and Settings ..........................27 Operation ..........................
-
Page 5: Safety
Safety Safety System operation assumes knowledge of the operating instructions. Symbols Used The following symbols are used in these operating instructions: Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. Indicates a situation that may result in property damage if not avoided. Indicates a user action. -
Page 6: Notes On Ce Marking
Safety The supply voltage must not exceed the specified limits. > Damage to or destruction of the sensors and/or the controller Avoid shocks and impacts to the sensor and the controller. > Damage to or destruction of the sensors and/or the controller Protect the sensor cable against damage. -
Page 7: Proper Environment
Safety Proper Environment - Protection class: IP 40 - Temperature range (operation) ƒ Sensor, sensor cable: -40 ... +80 °C ƒ Controller: +10 ... +60 °C - Temperature range (storage) ƒ Sensor, sensor cable: -10 ... +75 °C ƒ Controller: -10 ... -
Page 8: Functional Principle, Technical Data
Functional Principle, Technical Data Functional Principle, Technical Data Measuring Principle The capacitive distance measuring principle of the capaNCDT system is based on the functioning of an ideal plate capacitor. In the case of conductive targets, the sensor and the target located opposite form the two plate electrodes. If a constant alternating current flows through the sensor capacitor, the amplitude of the alternating voltage at the sensor is directly proportional to the distance between the capacitor electrodes. -
Page 9: Structure
9...36 V 31 kHz processing Active 5 pol. connector Sensor sensor Signal cable Demodulator Preamplifier Fig. 2 Block diagram of capaNCDT 6114 1) DT6124 controller: Additionally includes an AD converter for conversion to an RS485 interface. capaNCDT 61x4 Page 9... - Page 10 Functional Principle, Technical Data Oscillator Voltage 9...36 V 31 kHz processing Active 6 pol. connector sensor Sensor Signal cable Demodulator Preamplifier A/D converter Fig. 3 Block diagram of capaNCDT 6124 0xF00000 10 V Displacement, mm 50 % 100 % Target Sensor Measuring range (MR) Fig.
-
Page 11: Sensors
Functional Principle, Technical Data 2.2.1 Sensors Sensors with an integrated preamplifier can be used in the measuring system. For accurate measurement results, keep the front of the sensor clean Min. target and avoid damaging it. diameter The capacitive measuring method is area-based. A minimum area is re- quired depending on the sensor model and measuring range, see Fig. -
Page 12: Controller
Functional Principle, Technical Data 2.2.3 Controller The DT61x4 controller contains a voltage processor, oscillator, demodulator and an output stage. The voltage processor generates all required internal voltages from the supply voltage. The oscillator supplies the sensor with an alternating voltage that has a constant frequency and amplitude. The frequency is 31 kHz. The demodulator and output stage trans- form the measurement signal into a standardized voltage signal. -
Page 13: Technical Data For Controllers
Functional Principle, Technical Data Technical Data for Controllers Model DT6114/5 DT6114/15 DT6124/5 DT6124/15 Resolution Static (2 Hz) 0.01% FSO Dynamic (1 kHz) 0.015% FSO Frequency response (-3dB) 1 kHz Measuring rate Selectable: max. Selectable: max. 2 kSa/s 2 kSa/s < ±0.1% FSO <... -
Page 14: Technical Data For Sensors
130 g (incl. cable) approx. 360 g (incl. cable) Compatibility Compatible with capacitive controllers of DT61x4 series by Micro-Epsilon 1) Based on the nominal measuring range 2) Sensor linearity must be added to the controller linearity 3) In recommended mounting position... -
Page 15: Delivery
Delivery Delivery Unpacking/Included in Delivery 1 Controller 1 Power supply and output cable, SCAC3/5 (DT6114) or SCAC3/6 (DT6124) 1 Quick manual Optional accessories: 1 Sensor with integrated sensor cable 1 IF1032/ETH interface converter from analog (DT6114) or RS485 Ethernet (DT6124) to Ethernet/EtherCAT Other optional accessories Carefully remove the components of the measuring system from the packaging and ensure that the goods are forwarded in such a way that no damage can occur. -
Page 16: Installation And Assembly
Installation and Assembly Installation and Assembly Precautions No sharp or heavy objects should be allowed to affect the cable sheath. Protect the cable from compressive stress in regions exposed to higher pressure Avoid folding the cables. Check the plug connections for a tight fit. Sensor During installation, take care that the polished sensor front face is not scratched. -
Page 17: Sensor Cable
Installation and Assembly ø4 (4x) (.16 dia.) ø2.2 (4x) (.09 dia.) appr. 37 (1.46) Cable length 5 m or 15 m 20 (.79) 15.5 (.61) 9 (.35) Fig. 8 Dimensional drawing of CSHA2FL-CRAxx flat sensor with integrated cable, measuring range = 2 mm nominal, dimensions in mm Cable length x = 5 or 15 m Sensor active measuring area Sensor Cable... -
Page 18: Controller
Installation and Assembly Controller 42.0 (1.65) 53.0 (2.09) Mounting holes for M4 screws Fig. 9 Dimensional drawing of controller Ground Connection, Grounding Ensure sufficient grounding of the target, for example by connecting it to the sensor or the power supply ground. capaNCDT 61x4 Page 18... -
Page 19: Power Supply, Dt6114 Display/Output Device
Installation and Assembly Power Supply, DT6114 Display/Output Device The power supply and signal output are provided via the 5-pin connector on the front of the controller. Wire color Signal Description SCAC3/5 White +24 V +24 V supply Gray Supply ground Yellow Not used Fig. -
Page 20: Sensor Connection
Installation and Assembly Sensor Connection Fig. 14 Sensor cable connection capaNCDT 61x4 Page 20... -
Page 21: Rs485 Interface
You can read out the measurements in digital form via the RS485 interface. MICRO-EPSILON can help you with the MEDAQLib driver, which contains all commands for the capaNCDT 6120. You can download the link directly via the following link:http://www.micro-epsilon.de/link/software/medaqlib . -
Page 22: Reading Measurements
RS485 Interface 5.2.1 Reading Measurements Master: Request Data Byte: Value: 0x10 0x4C 0x16 Slave: Response Data Byte: Data[] Value: 0x68 0x68 0x08 0x16 Abbreviations: StartDelimiter (0x10: telegram without data; 0x68 telegram with variable length) Length (number of bytes without SD, LE, LErep, SDrep, FCS, ED) LErep LE repeated SDrep... -
Page 23: Scaling Of Measurements
RS485 Interface Measuring data consist of a counter, the packet length m and the measurements. The packet length m determines how many mea- surements are transmitted. The packet length m is the number of measurements that have been queried by the electronic system since the last time measuring data were queried, but is limited to the most recent 20 measurements. -
Page 24: Example For Transmitting Measurements
RS485 Interface 5.2.3 Example for Transmitting Measurements Master: Request Data Byte: Value: 0x10 0x4C 0x16 DA = Destination address = slave address = 0x7E SA = Source address = master address = 0x01 FCS = Checksum = 0x7E+0x01+0x43 = 0xC2 Slave: Response Data Byte: Data... - Page 25 RS485 Interface Value Name Explanation Data[0] 0x22 Counter [7:0] Measurement counter = 0x0122 = Data[1] 0x01 Counter [15:8] Data[2] 0x03 Packet length m [7:0] M = 3 -> 3 measurements Data[3] 0x00 Filler byte [7:0] Fillers, can be ignored Data[4] 0xB1 Measurement 1 [7:0] Measurements = 0x003244B1...
-
Page 26: Setting The Rs485 Address
RS485 Interface 5.2.4 Setting the RS485 Address You can change the RS485 address of the controller with this telegram: Master: DSAP SSAP new_addr ID_Hi ID_Lo Lock 0x68 0x09 0x43 0x37 0x3E 0x16 Destination Address (= old slave address) Source Address = master address (e.g. 0x01) Checksum (sum of all bytes without SD, LE, LErep, SDrep, FCS, ED;... -
Page 27: Commands And Settings
RS485 Interface Commands and Settings Other settings can be applied via the RS485 interface: - Filter: ƒ Off ƒ Moving mean (over 2 to 8 values) ƒ Arithmetic mean (over 2 to 8 values) ƒ Median (over 2 to 8 values) ƒ... -
Page 28: Operation
Operation Operation Connect the display/output devices via the screw terminal connection before connecting the device to the power supply, then switch it on. The measuring system is calibrated before being shipped. The user does not need to perform a calibration. Let the measuring system warm up for approx. -
Page 29: Maintenance
Disconnect the power supply before touching the sensor surface. > Static discharge, risk of injury In case of a defect in the controller, the sensor or MICRO-EPSILON MESSTECHNIK the sensor cable, please send the affected parts for GmbH & Co. KG repair or exchange. -
Page 30: Liability For Material Defects
In particular, MICRO-EPSILON shall not be liable for any consequential, special, indirect or incidental damage. In the interest of further development, MICRO-EPSILON reserves the right to make design changes without notification. For transla- tions into other languages, the German version shall prevail. -
Page 31: Appendix
Appendix | Optional Accessories Appendix Optional Accessories PS2020 Power supply for top-hat rail installation Input 100 – 240 VAC Output 24 VDC/2.5 A; L/W/H 120 x 120 x 40 mm Installation type; installation on symmetri- cal standard rail 35 mm x 7.5 mm, DIN 50022 PS2401/100-240/24V/1A Universal plug-in power supply with open... -
Page 32: Effect Of Capacitive Sensor Tilt
Appendix | Effect of Capacitive Sensor Tilt Effect of Capacitive Sensor Tilt CS10 CS10 CS02 CS02 Angle [°] Angle [°] Fig. 16 Example measuring range deviation with a Fig. 17 Example measuring range deviation with a sensor distance of 10% of the measuring range sensor distance of 50% of the measuring range CS10 CS02... -
Page 33: Measurement On Narrow Targets
Appendix | Measurement on Narrow Targets Measurement on Narrow Targets 50 % 50 % 45 % 45 % 40 % 40 % 35 % 35 % 30 % 30 % 25 % 25 % 3 mm 20 % 20 % 3 mm 4 mm 15 %... -
Page 34: A 4 Measurement On Spheres And Shafts
Appendix | Measurement on Spheres and Shafts The figures show examples of the effect on a CS05 sensor at different distances between the sensor and target and with dif- ferent target widths. The results are based on our own simulations and calculations; please ask if you would like more detailed information. - Page 36 MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Str. 15 · 94496 Ortenburg / Deutschland Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 X9751425-A012051MSC info@micro-epsilon.de · www.micro-epsilon.de Your local contact: www.micro-epsilon.com/contact/worldwide/ MICRO-EPSILON MESSTECHNIK...
