Summary of Contents for MICRO-EPSILON colorSENSOR-LT-1-ST

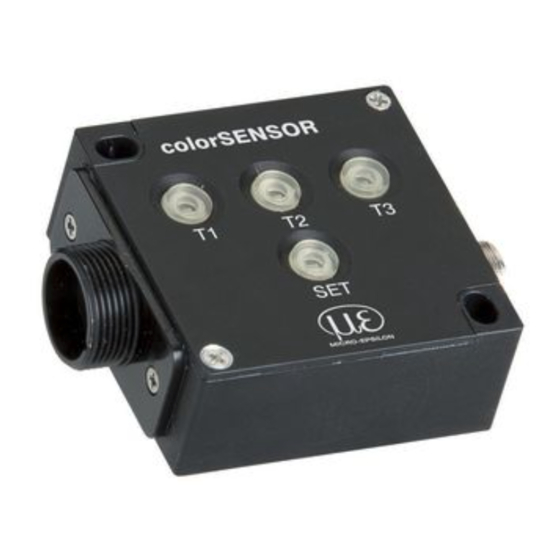

- Page 1 All manuals and user guides at all-guides.com Betriebsanleitung Instruction Manual colorSENSOR LT-1-ST...
- Page 2 All manuals and user guides at all-guides.com Kompakter Farbsensor Compact color sensor MICRO-EPSILON Eltrotec GmbH Heinkelstraße 2 73066 Uhingen / Germany Tel. +49 (0) 7161/ 98872-300 Fax +49 (0) 7161/ 98872-303 e-mail: eltrotec@micro-epsilon.de www.micro-epsilon.com Zertifiziert nach DIN EN ISO 9001: 2008...
-
Page 3: Electrical Interfaces
All manuals and user guides at all-guides.com Elektrische Anschlüsse/ Electrical interfaces Die elektrischen Anschlüsse des Sensors zeigt Fig. 1./ The electrical connections of the sensor show Fig. 1. Fig. 1 Elektrische Anschlüsse am Sensor/ Electrical interfaces Sensor connector SB1 pin description Tab. - Page 4 All manuals and user guides at all-guides.com (Gegentakt/ Push-Pull) 2 Steuereingänge/ 2 control inputs Bedientasten/ Operating buttons 1 SET Taste/ 1 SET button 3 Farbkanaltasten/ 3 Color channel buttons Anzeigen/ Displays 3 LEDs (integriert in Kanaltasten/ Integrated in channel buttons) 1 SET LED ≤...
-
Page 5: Electrical Connectors
All manuals and user guides at all-guides.com Optical d ata Tab. 4 Optische Daten/ Messsignaleinkopplung/ Coupling in per Lichtwellenleiter/ Via optical fiber measurement signal path Objektbeleuchtung/ Object illumination path per Lichtwellenleiter/ Via optical fiber Lichtquelle/ Illuminant Weißlicht-LED/ White light LED Mechanical d ata Tab. - Page 6 All manuals and user guides at all-guides.com Tab. 6 RS232 Spezifikation/ Specification 1 (GND) 2 (TXD) -5 V...+5 V 3 (RXD) -5 V...+5 V nicht verwenden/ do not connect Tab. 7 RS232 Parameter/ Parameters Parameter/ Parameters Wert/ Value Baud rate 9.600...115.200 Data bits Parity...
-
Page 7: Button Operation
All manuals and user guides at all-guides.com Tastenbedienung/ Button operation Teaching in colors 5.1 Farbe einlernen/ Sensor an Objekt ausrichten/ Position sensor to object „SET“ Taste drücken („SET“ Taste leuchtet)/ Press „SET“ button (“TOL” button is shining) Gewünschte Kanaltaste (z.B. CH1) min. 2 sec. drücken/ Press corresponding channel button (e.g. -
Page 8: Mounting Bracket
All manuals and user guides at all-guides.com 6 Montagewinkel/ Mounting Bracket Ordering numbers Bestellnummern/ Artikel/ Item Bestellnummer/ Order number colorSENSOR LT-1-ST / colorSENSOR LT-1-ST 10234061 Montagewinkel/ Mounting bracket Auf Anfrage/ on request CAB-M9-8P-St-ge; 2m-PUR; offen/ CAB-M9-8P-co-straight; 2m-PUR; open ends 11234091 CAB-M9-4P-St-ge;... - Page 9 Personen von der Gerätefunktion abhängig ist. Der Einsatz der Geräte muss durch Fachpersonal erfolgen. Reparatur nur durch MICRO-EPSILON Eltrotec GmbH Safety instructions The instruments are not to be used for safety applications, in particular applications in which safety of persons depends on proper operation of the instruments.
- Page 10 All manuals and user guides at all-guides.com MICRO-EPSILON Eltrotec GmbH X975X263-A021095HDR Heinkelstraße 2 · 73066 Uhingen / Germany Tel. +49 (0) 7161 / 98872-300 · Fax +49 (0) 7161 / 98872-303 *X975X263-A02* eltrotec@micro-epsilon.de · www.micro-epsilon.com...
