MICRO-EPSILON colorSENSOR OT Series Instruction Manual

colorSENSOR OT-3
Series
colorSENSOR OT Series
colorSENSOR OT-3-HR-50
- Measuring range typ. 20 mm ... 80 mm
- Polarization filter (very intense reduction of gloss effect)
- Up to 31 colors can be stored
- RS232 interface (USB adapter is available)
- 8x super-bright white-light LED, focused (AC-/DC-/PULSE-
operation or OFF for luminous objects can be switched)
- Color detection, contrast detection, and gray scale detection
- Insensitive to outside light
- Brightness correction can be activated
- Switching frequency up to 35 kHz
- Several TEACH functions (via PC, PLC, or push button)
- Various evaluation algorithms can be activated
- "BEST HIT" mode ("human color assessment")
- Switching state display by means of 5 yellow LEDs
- Temperature compensated in climatic cabinet
- Averaging can be activated (from 1 up to over 32000 values)
- Color control of luminous objects (LEDs, halogen lamps, displays, ...)
- 3-color filter detector (true color detector: "human color perception")
Design
Product name:
colorSENSOR OT-3-HR-30-16
colorSENSOR OT-3-HR-30-8
(incl. software colorCONTRL-S)
d5 = By use of an aperture Ø 5 mm the detection range
at the working distance of 30 mm will be reduced
to typ. 13 mm.

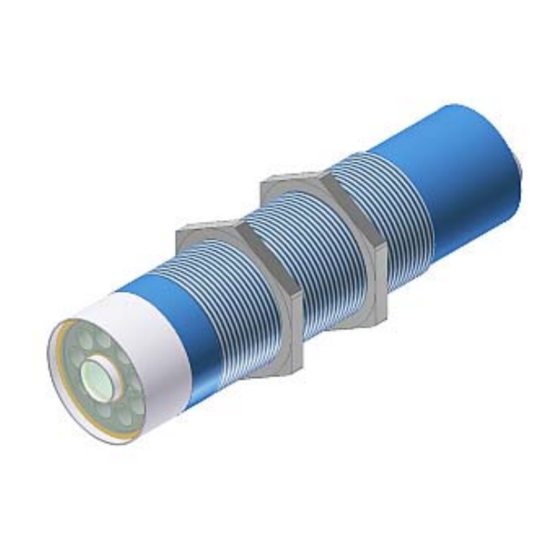

Optics holding device
(aluminum, anodized)
Receiver optics and
transmitter optics with 8x white light LED
incl. 3-color filter detector (True Color)
and polarisation filter
(scratch-resistant optics cover
made of glass)
4-pole fem. connector
Binder Series 707
RS232-interface
Connecting cable:
CAB-M5-4P-St-ge; xm-PUR; RS232 or
CAB-M5-4P-St-ge; xm-PVC; USB
MICRO-EPSILON Eltrotec GmbH
Manfred-Wörner-Straße 101 · 73037 Göppingen / Germany
Tel. +49 (0) 7161 / 98872-300 · Fax +-49 (0) 7161 / 98872-303
eltrotec@micro-epsilon.de ·
True Color Sensors
•
TEACH button 8-pole fem. connector
(external teaching Binder Series 712
via input IN0) (connection to PLC)
Connecting cable:
CAB-M9-8P-St-ge; xm-PUR; open
www.micro-epsilon.com
colorSENSOR OT-3-HR-50
Instruction Manual
Mounting screws
(M34)
LED display:
Switching state indication
by means of 5 yellow LED
Mounting
accessories:
(p. 7)
FL-34
(flange)
WFL-34
(flange)
Sturdy aluminum
housing, anodized
in blue
Page 1
