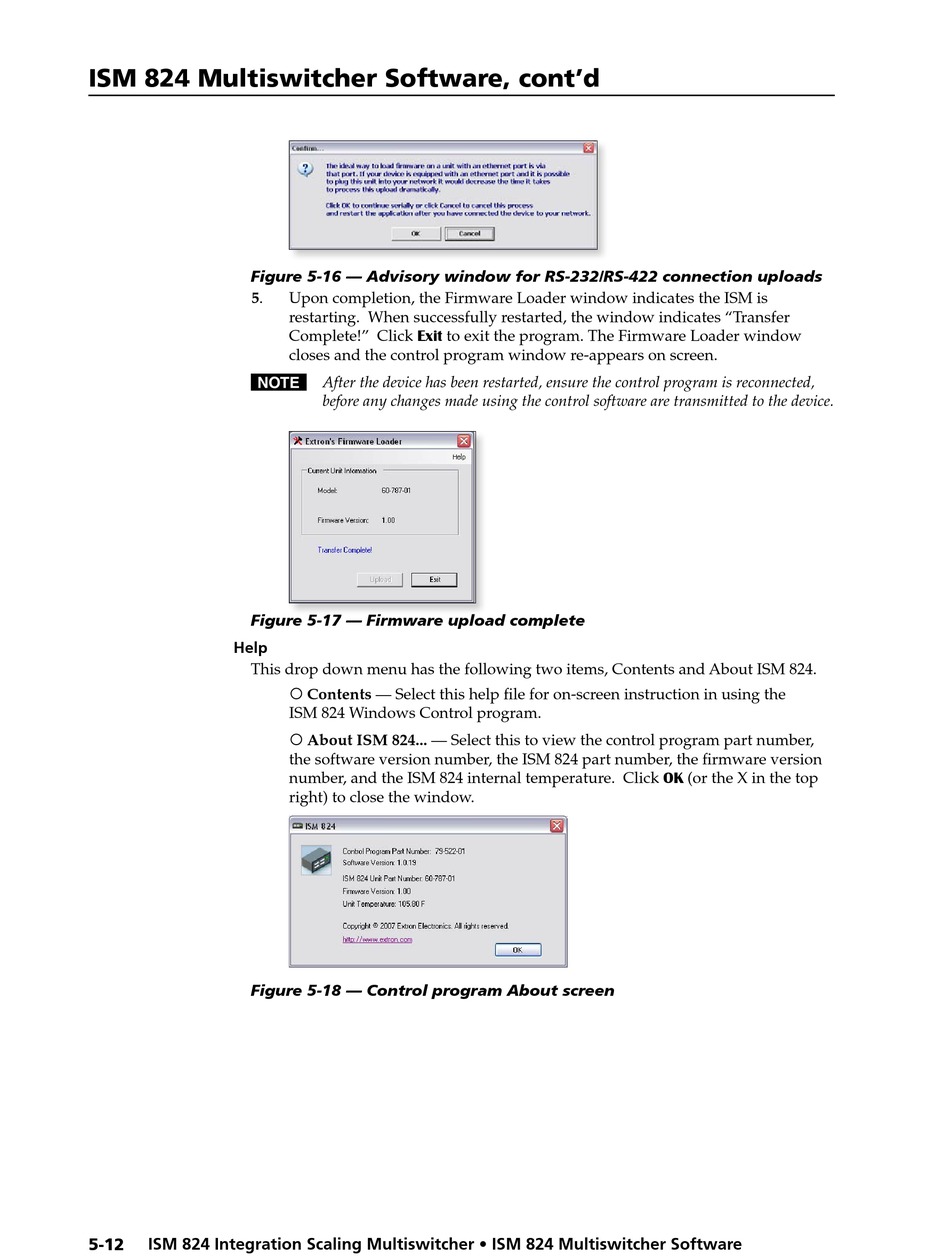

ISM 824 Multiswitcher Software, cont'd
Figure 5-16 — Advisory window for RS-232/RS-422 connection uploads
5.
N After the device has been restarted, ensure the control program is reconnected,
Figure 5-17 — Firmware upload complete

Help

This drop down menu has the following two items, Contents and About ISM 824.
Figure 5-18 — Control program About screen
5-12 ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
Upon completion, the Firmware Loader window indicates the ISM is
restarting. When successfully restarted, the window indicates "Transfer
Complete!" Click Exit to exit the program. The Firmware Loader window
closes and the control program window re-appears on screen.
before any changes made using the control software are transmitted to the device.
 Contents — Select this help file for on-screen instruction in using the
ISM 824 Windows Control program.
 About ISM 824... — Select this to view the control program part number,
the software version number, the ISM 824 part number, the firmware version
number, and the ISM 824 internal temperature. Click OK (or the X in the top
right) to close the window.
