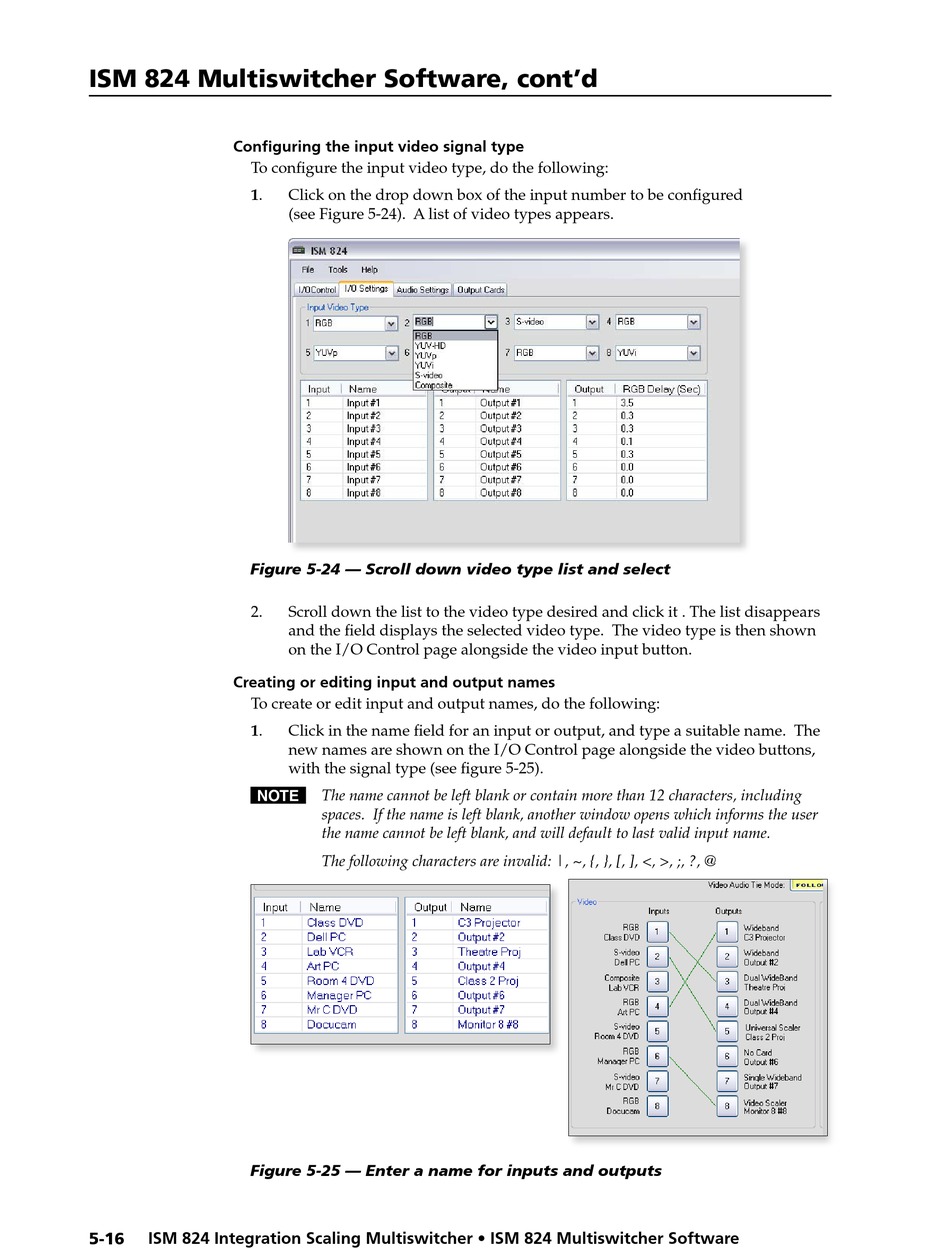

ISM 824 Multiswitcher Software, cont'd

Configuring the input video signal type

To configure the input video type, do the following:
1.
Figure 5-24 — Scroll down video type list and select
2.

Creating or editing input and output names

To create or edit input and output names, do the following:
1.
N The name cannot be left blank or contain more than 12 characters, including
Figure 5-25 — Enter a name for inputs and outputs
5-16 ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
Click on the drop down box of the input number to be configured
(see Figure 5-24). A list of video types appears.
Scroll down the list to the video type desired and click it . The list disappears
and the field displays the selected video type. The video type is then shown
on the I/O Control page alongside the video input button.
Click in the name field for an input or output, and type a suitable name. The
new names are shown on the I/O Control page alongside the video buttons,
with the signal type (see figure 5-25).
spaces. If the name is left blank, another window opens which informs the user
the name cannot be left blank, and will default to last valid input name.
The following characters are invalid: |, ~, {, }, [, ], <, >, ;, ?, @
