Remote Control, cont'd

Using the software

1. To run the software, click Start / Programs /
Extron Electronics / Universal Switcher Control
Pgm.
2. Click on the comm port that is connected to the switcher's
RS-232 port.
3. The Extron Universal Switcher Control Program window
(figure 4-2) displays the input signal status for each input
(signal present or not present), the selected input, and the
audio gain for the selected input.

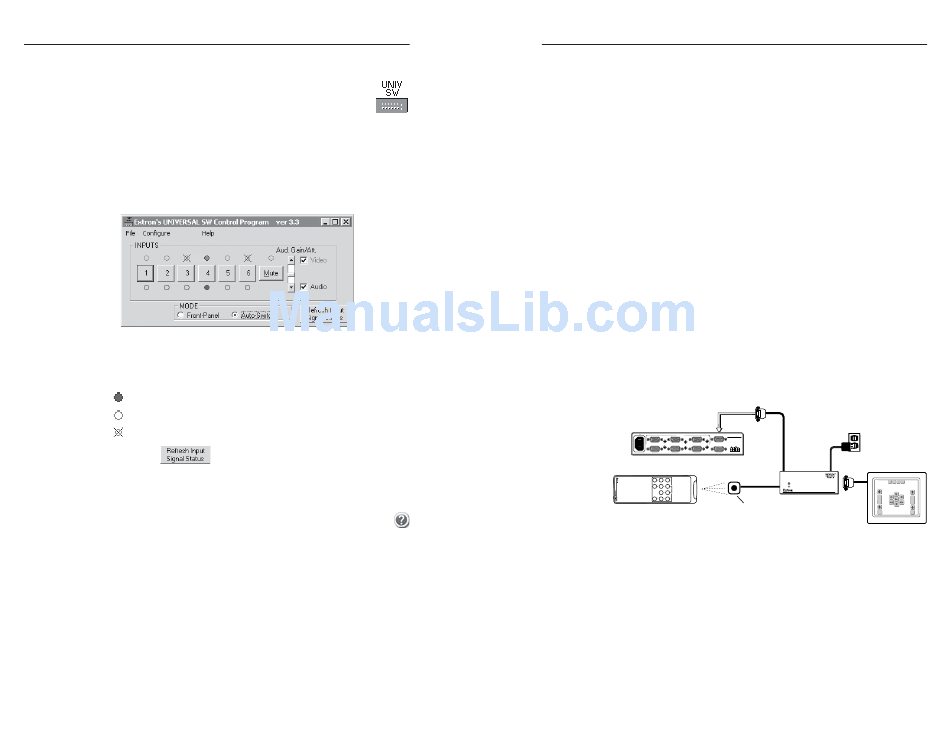

Figure 4-2 — Universal Switcher Control program
window
In the illustration above:
indicates that the input signal is present and is selected.
indicates that the input signal is present but not selected.
indicates that the input signal is not present.
Click the

Using the help system

For information about program features, you can access
the help program in any of the following ways:
• Click Start / Programs / Extron Electronics /
Universal Switcher Help.
• From within the Windows-based switcher control
program, select Help > Contents on the task bar.
• From within the Windows-based switcher control
program, press the F1 key.
www.camboard.de
SW VGArs / Ars Series Switchers • Remote Control
4-8
button to refresh the input signal status.
CAMBOARD Electronics

Contact Closure Remote Control

IR 102 Infrared Remote Control

Tel. 07131 911201
Fax 07131 911203
The Remote connector also provides a way to select an input to
the switcher using a remote contact closure device. Contact
closure control uses pins on the Remote connector that are not
used by the RS-232 interface. The contact closure pin
assignments are shown in figure 4-1 on page 4-2.
To select a different input number using a contact closure
device, momentarily short the pin for the desired input number
to logic ground (pin 5). To force one of the inputs to be always
selected, leave the short to logic ground in place. The short
overrides front panel input selections.
The optional Extron IR 102 kit consists of the following
components:
• IR 102 handheld remote control unit
• VersaTools IR 102 remote receiver with 3' cable and
RS-232 connector
• IR detector with 6' cable and captive screw connector
• External 12VDC power supply
Install and operate the remote control in accordance with the
IR 102 User's Guide (part #68-663-01) included with the remote.
SW6 VGA Ars Switcher
100-240V 0.2A INPUTS REMOTE
SW6 VGA Ars SW6 VGA Ars
1 3 5
OUTPUT
OUTPUT
2 4 6 L R
50-60Hz
6' Cable
IR 102 Remote
IR Detector
IR 102 Remote Control
Control Receiver
Figure 4-3 — IR 102 Remote application
ce-info@camboard.de
SW VGArs / Ars Series Switchers • Remote Control
Power
Supply
3' Cable
RS-232
Control
IR-102
4-9
