ISM 824 Integration Scaling Multiswitcher, continued

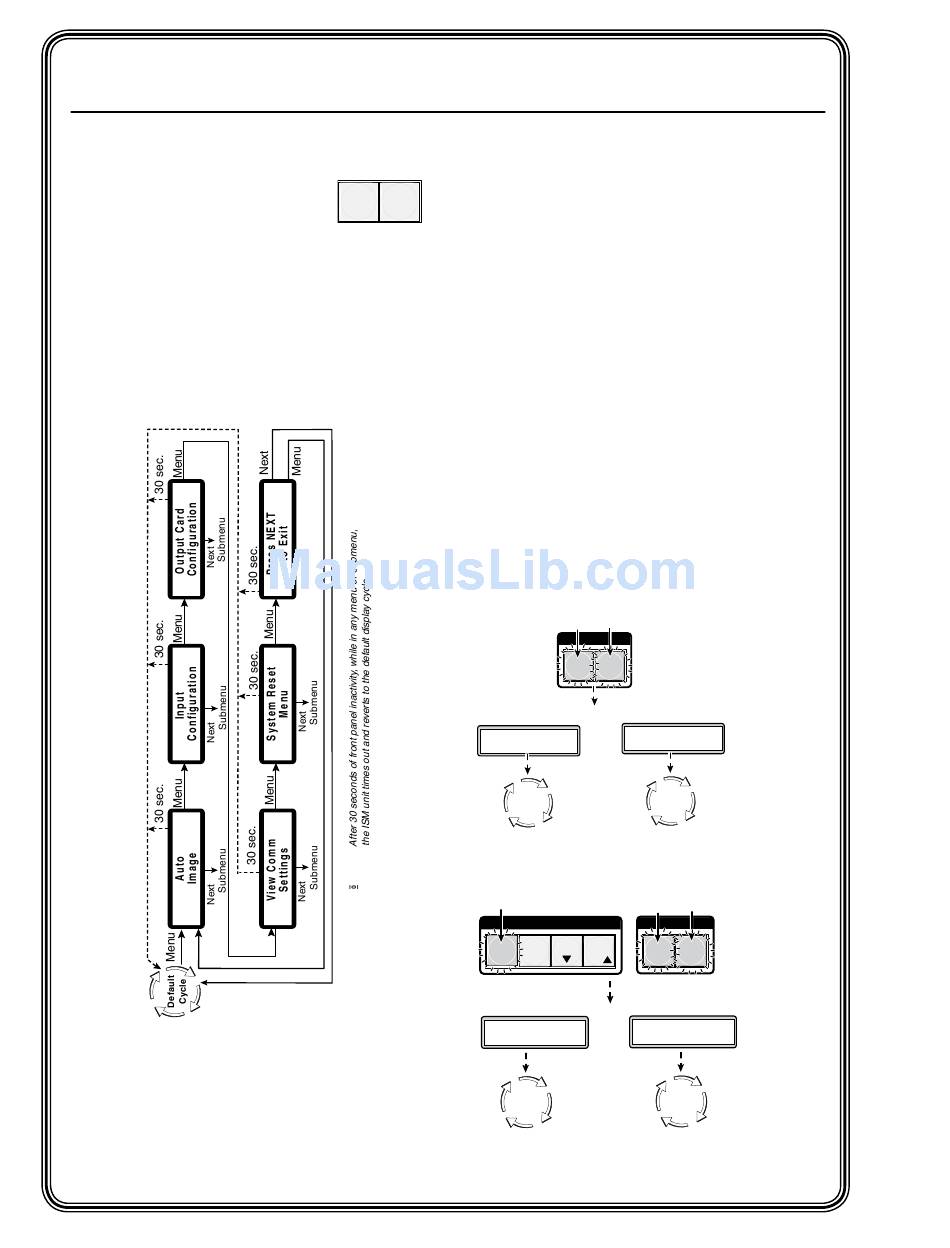

ISM 824 Menu System
The ISM 824 has a six level menu system. Access
to each level and sub level is made
by using the menu control buttons.
Menu button — The Menu
•
button enters and moves through the main
menu system in the ISM.
Next button — The Next button steps
•
through the submenus in the ISM menu
system or exits the menu system.
Each level has separate submenus, accessed by
pressing the Next button. Within any submenu,
pressing the Menu button takes the user back up
a sub level.
See chapter 3, "Operation and Setup", "ISM 824
Menu System" section, for complete step-by-step
information on configuring the ISM with the
Menu System.
QS-4 ISM 824 Integration Scaling Multiswitcher • Quick Start
Quick Start —
Front panel security lockout (Executive
mode)
The front panel security lockout limits some or
all the operation of the ISM from the front panel.
MENU NEXT
There are two levels of security available via the
front panel; Executive modes 1 and 2.
• Executive Mode 1— View Mode. Complete
front panel lockout except for viewing ties
and unlocking View mode. No changes
can be made and attempts result in the I/O
buttons blinking twice.
• Executive Mode 2 — I/O ties only. Partial
front panel lockout, allowing ties to
be changed, I/O presets recall, button
background illumination control, audio
gain/attenuation control, and unlocking
Executive 2 mode. Attempting other changes
result in the I/O buttons and the Enter
button blinking twice.
To initiate or exit Executive Mode 1 or 2 follow
the steps shown below:
To initiate or exit:
Press and hold the Video and Audio
buttons (2 seconds), until buttons
blink twice. Release.
On initiating,
the LCD displays
Executive Mode
View mode
Default
Cycle
To initiate or exit:
Press and hold Enter, Video, and Audio
buttons (2 seconds), until buttons blink twice.
ENTER
PRESET
On initiating,
the LCD displays
Executive Mode
I/O Ties Only
Default
Cycle
See chapter 3, "Operation and Setup", "Front
panel security lockout (Executive mode)"
for further information.
Executive Mode 1
I / O
VIDEO AUDIO
On exiting,
the LCD displays
OR
Executive Mode
Off
Default
Cycle
Executive Mode 2
C O N T R O L I / O
ESC VIDEO AUDIO
VIEW
On exiting,
the LCD displays
OR
Executive Mode
Off
Default
Cycle
