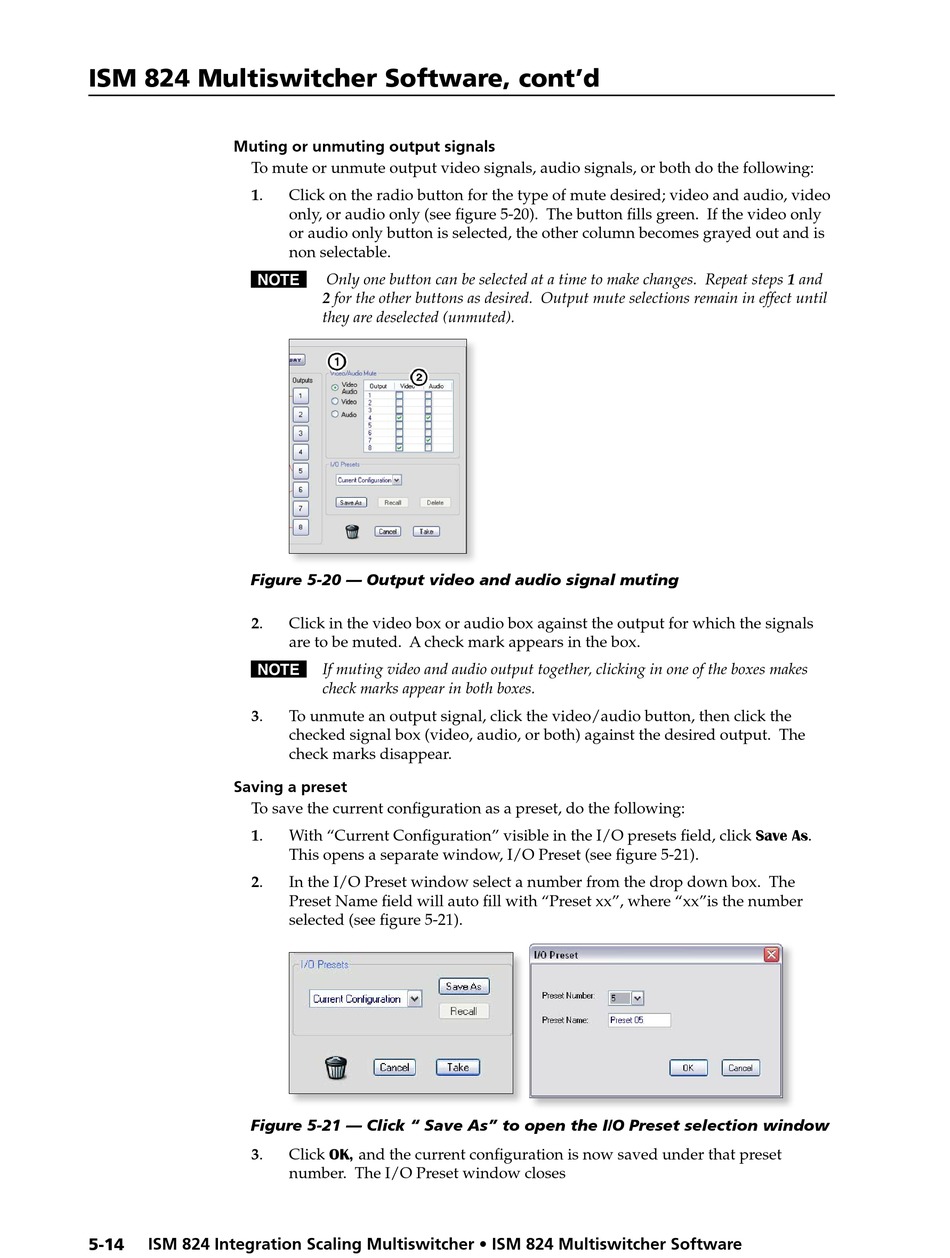

ISM 824 Multiswitcher Software, cont'd
Muting or unmuting output signals
To mute or unmute output video signals, audio signals, or both do the following:
1.
N
Figure 5-20 — Output video and audio signal muting
2.
N If muting video and audio output together, clicking in one of the boxes makes
3.

Saving a preset

To save the current configuration as a preset, do the following:
1.
2.
Figure 5-21 — Click " Save As" to open the I/O Preset selection window
3.
5-14 ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
Click on the radio button for the type of mute desired; video and audio, video
only, or audio only (see figure 5-20). The button fills green. If the video only
or audio only button is selected, the other column becomes grayed out and is
non selectable.
Only one button can be selected at a time to make changes. Repeat steps 1 and
2 for the other buttons as desired. Output mute selections remain in effect until
they are deselected (unmuted).
Click in the video box or audio box against the output for which the signals
are to be muted. A check mark appears in the box.
check marks appear in both boxes.
To unmute an output signal, click the video/audio button, then click the
checked signal box (video, audio, or both) against the desired output. The
check marks disappear.
With "Current Configuration" visible in the I/O presets field, click Save As.
This opens a separate window, I/O Preset (see figure 5-21).
In the I/O Preset window select a number from the drop down box. The
Preset Name field will auto fill with "Preset xx", where "xx"is the number
selected (see figure 5-21).
Click OK, and the current configuration is now saved under that preset
number. The I/O Preset window closes
