Operation and Setup, cont'd

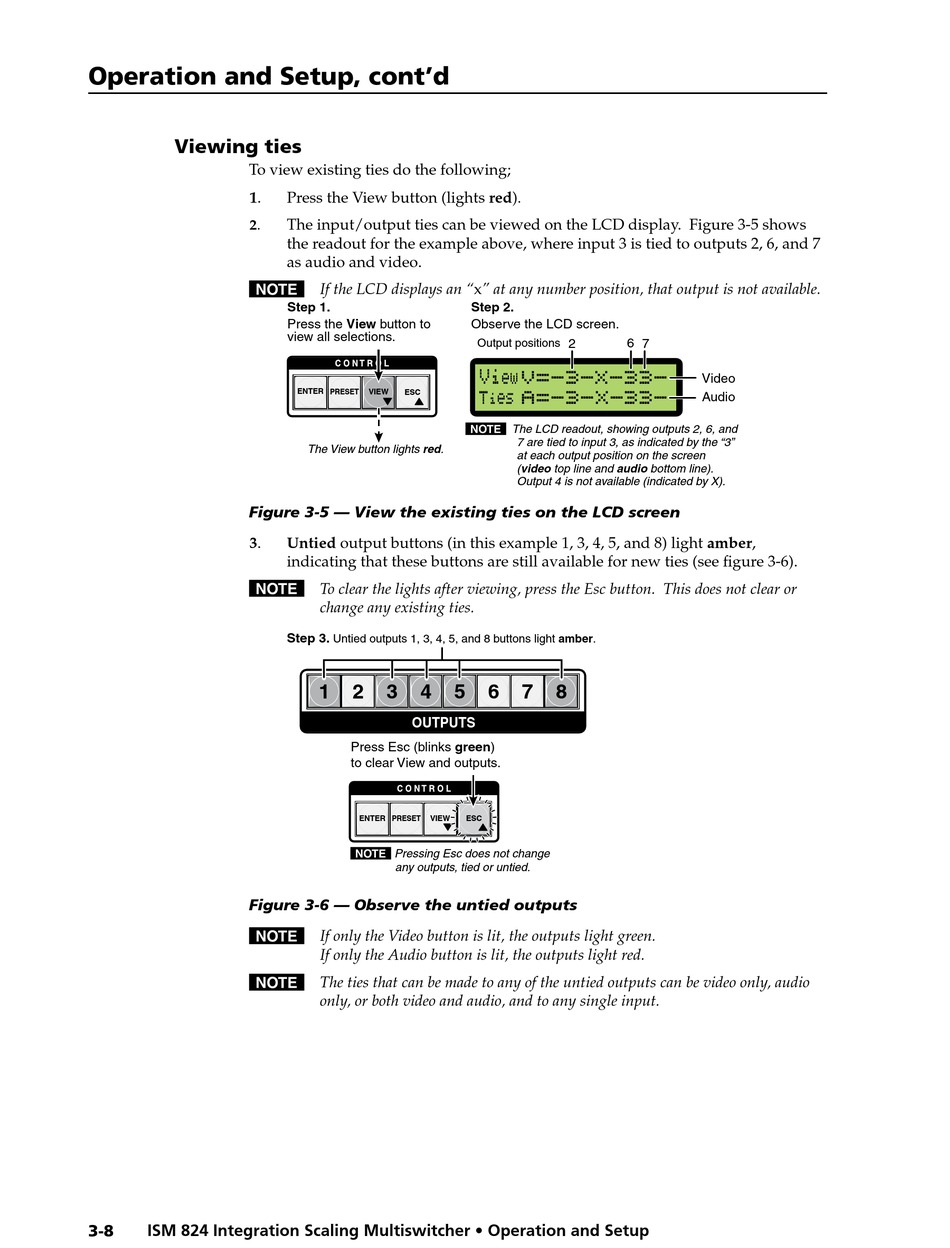

Viewing ties

To view existing ties do the following;
1.
2.
N If the LCD displays an "x" at any number position, that output is not available.
Figure 3-5 — View the existing ties on the LCD screen
3.
N To clear the lights after viewing, press the Esc button. This does not clear or
Figure 3-6 — Observe the untied outputs
N If only the Video button is lit, the outputs light green.
N The ties that can be made to any of the untied outputs can be video only, audio
3-8 ISM 824 Integration Scaling Multiswitcher • Operation and Setup
Press the View button (lights red)
The input/output ties can be viewed on the LCD display. Figure 3-5 shows
the readout for the example above, where input 3 is tied to outputs 2, 6, and 7
as audio and video.
Step 1.
Press the View button to
view all selections.
ENTER PRESET VIEW
ESC
The View button lights red.
Untied output buttons (in this example 1, 3, 4, 5, and 8) light amber,
indicating that these buttons are still available for new ties (see figure 3-6).
change any existing ties.
Step 3.
Untied outputs 1, 3, 4, 5, and 8 buttons light amber.
1 2 3 4 5
OUTPUTS
Press Esc (blinks green)
to clear View and outputs.
ENTER PRESET VIEW
N Pressing Esc does not change
any outputs, tied or untied.
If only the Audio button is lit, the outputs light red.
only, or both video and audio, and to any single input.
.
Step 2.
Observe the LCD screen.
2 6 7
Output positions
Vi
V=-3-X-33-
ew
T A=-3-X-33-
ies
N The LCD readout, showing outputs 2, 6, and
7 are tied to input 3, as indicated by the "3"
at each output position on the screen
(video top line and audio bottom line).
Output 4 is not available (indicated by X).
6 7 8
ESC
Video
Audio
