Button Label Generator

The Button Label Generator software creates labels that can be placed in the
translucent covers of front panel buttons. Labels can be created with names,
alphanumeric characters, or even color bitmaps for easy and intuitive input and
output selection.
The Extron Button Label Generator is available on the Extron Web site,
www.extron.com
Button Label Generator (figure 5-31), and download and install the program.

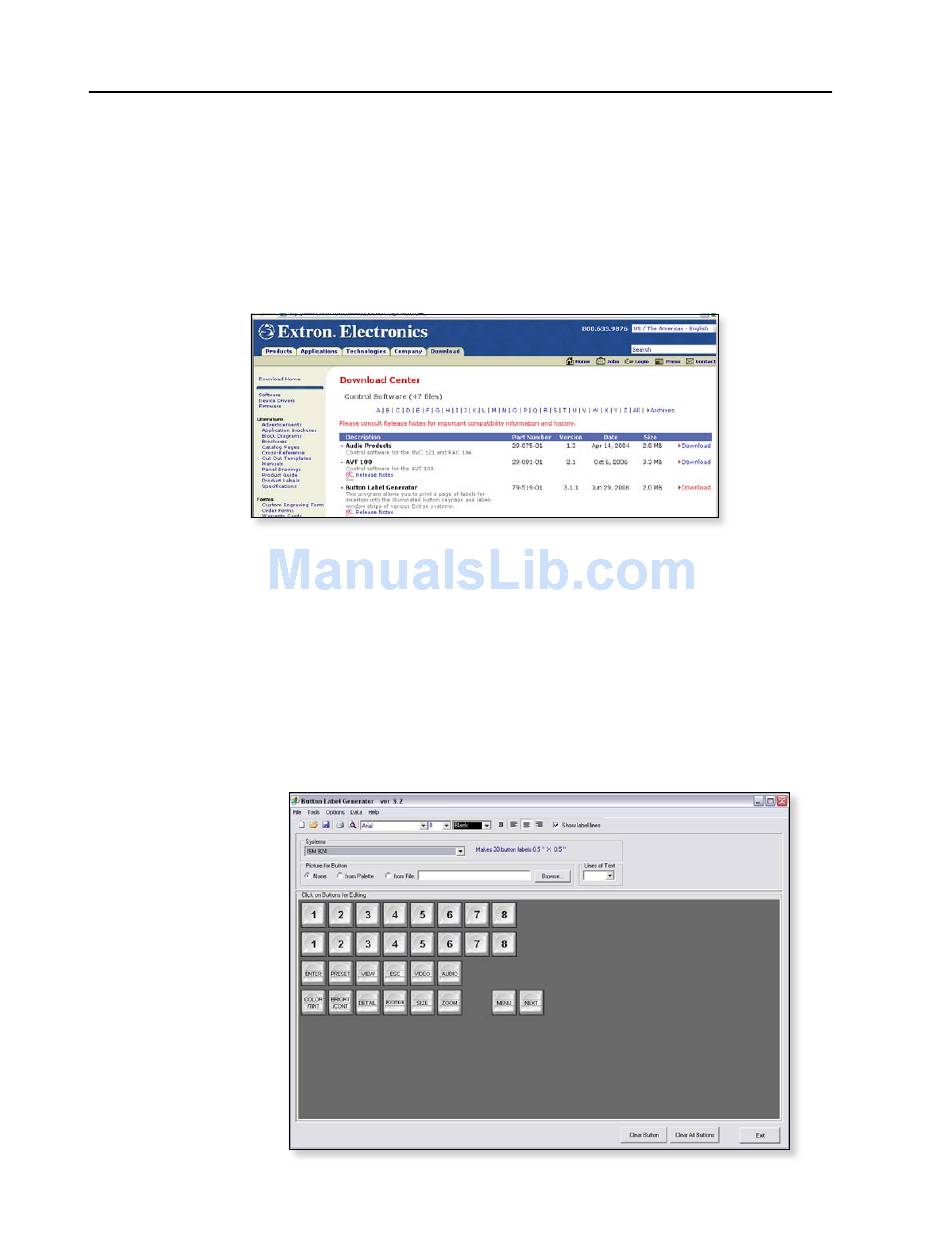

Figure 5-32 — Location of Software on the web site .
By default, the Windows installation creates a C:\Program Files\Extron\
ButtonLabelGenerator directory to place the Button Label Generator icon within.

Using the Button Label Generator software

1.
2.
Figure 5-33 — Extron's Button Label Generator window for the ISM 824
5-26 ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
, under the Download tab. Click the Control Software link, and select
To run the Button Label Generator program either click on the desk top
icon, where installed, or, select Start > All Programs >Extron > Button Label
Generator >Button Label Generator. The Button Label Generator window
opens.
In the System drop down box, select ISM 824, and the window refreshes with
the ISM 824 front panel button images (see figure 5-33).
