The following example illustrates the principles of making new video/audio ties.

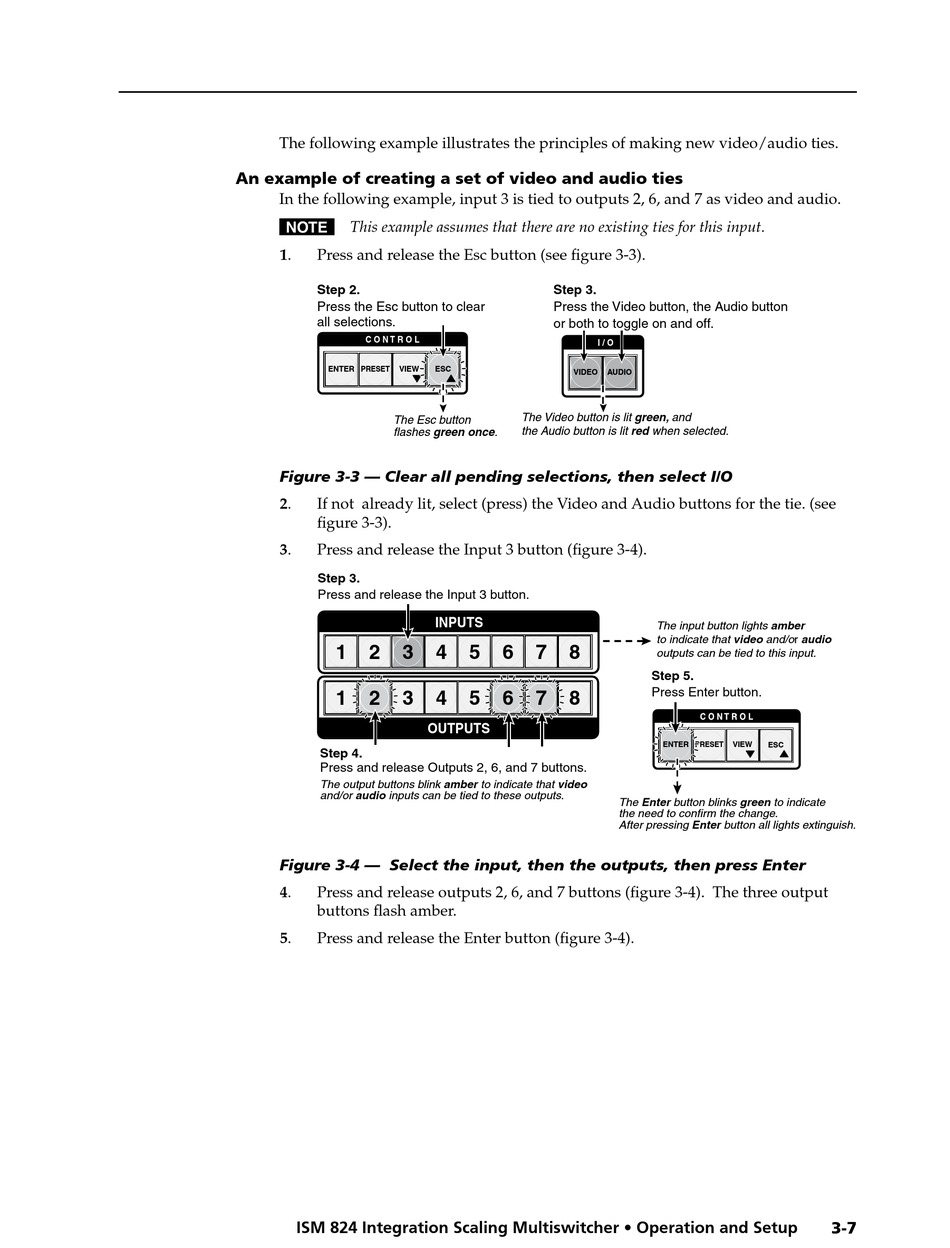

An example of creating a set of video and audio ties

In the following example, input 3 is tied to outputs 2, 6, and 7 as video and audio.
N This example assumes that there are no existing ties for this input.
1. Press and release the Esc button (see figure 3-3).
Step 2.
Press the Esc button to clear
all selections.
C O N T R O L
ENTER PRESET VIEW
The Esc button
flashes green once.
Figure 3-3 — Clear all pending selections, then select I/O
2. If not already lit, select (press) the Video and Audio buttons for the tie. (see
figure 3-3).
3. Press and release the Input 3 button (figure 3-4).
Step 3.
Press and release the Input 3 button.
1 2 3
1 2 3
Step 4.
Press and release Outputs 2, 6, and 7 buttons.
The output buttons blink amber to indicate that video
and/or audio inputs can be tied to these outputs.
Figure 3-4 — Select the input, then the outputs, then press Enter
4. Press and release outputs 2, 6, and 7 buttons (figure 3-4). The three output
buttons flash amber.
5. Press and release the Enter button (figure 3-4).
ISM 824 Integration Scaling Multiswitcher • Operation and Setup
Step 3.
Press the Video button, the Audio button
or both to toggle on and off.
I / O
ESC
VIDEO
The Video button is lit green, and
the Audio button is lit red when selected.
INPUTS
4 5 6 7 8
4 5 6 7 8
OUTPUTS
AUDIO
The input button lights amber
to indicate that video and/or audio
outputs can be tied to this input.
Step 5.
Press Enter button.
ENTER PRESET VIEW ESC
The Enter button blinks green to indicate
the need to confirm the change.
After pressing Enter button all lights extinguish.
3-7
