HTML Operation, cont'd

I/O Presets page

To access the I/O Presets page, click on the I/O Presets link on the left side of any
of the Control pages. The page opens showing the current saved presets.
This page is used to save and recall any of up to sixteen I/O presets (figure 6-14),
and to configure certain output cards installed in slots 1 through 4.

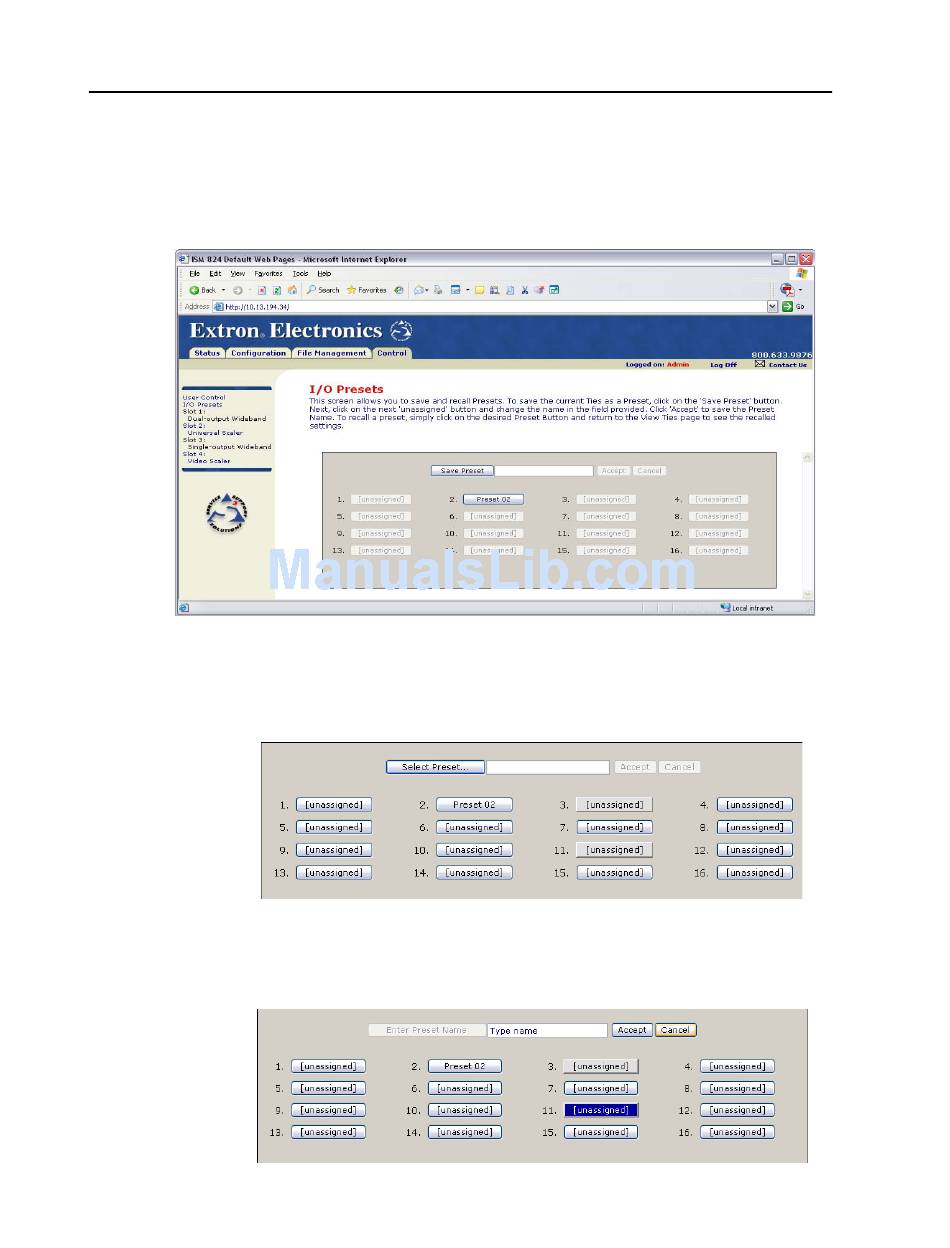

Figure 6-14 — I/O Presets page
To save a preset, do the following:
1.
Figure 6-15 — Select an unassigned preset button
2.
Figure 6-16 — Enter a name into the preset name field
6-16
ISM 824 Integration Scaling Multiswitcher • HTML Operation
Click Save Preset. The button changes to Select Preset..., and all unassigned
buttons become visible (see figure 6-15).
Click on the next unassigned number, or if all presets are taken, any preset
button. The preset button is highlighted, and the Select Preset... button
disappears. The Accept/Cancel buttons become visible (see figure 6-16).
