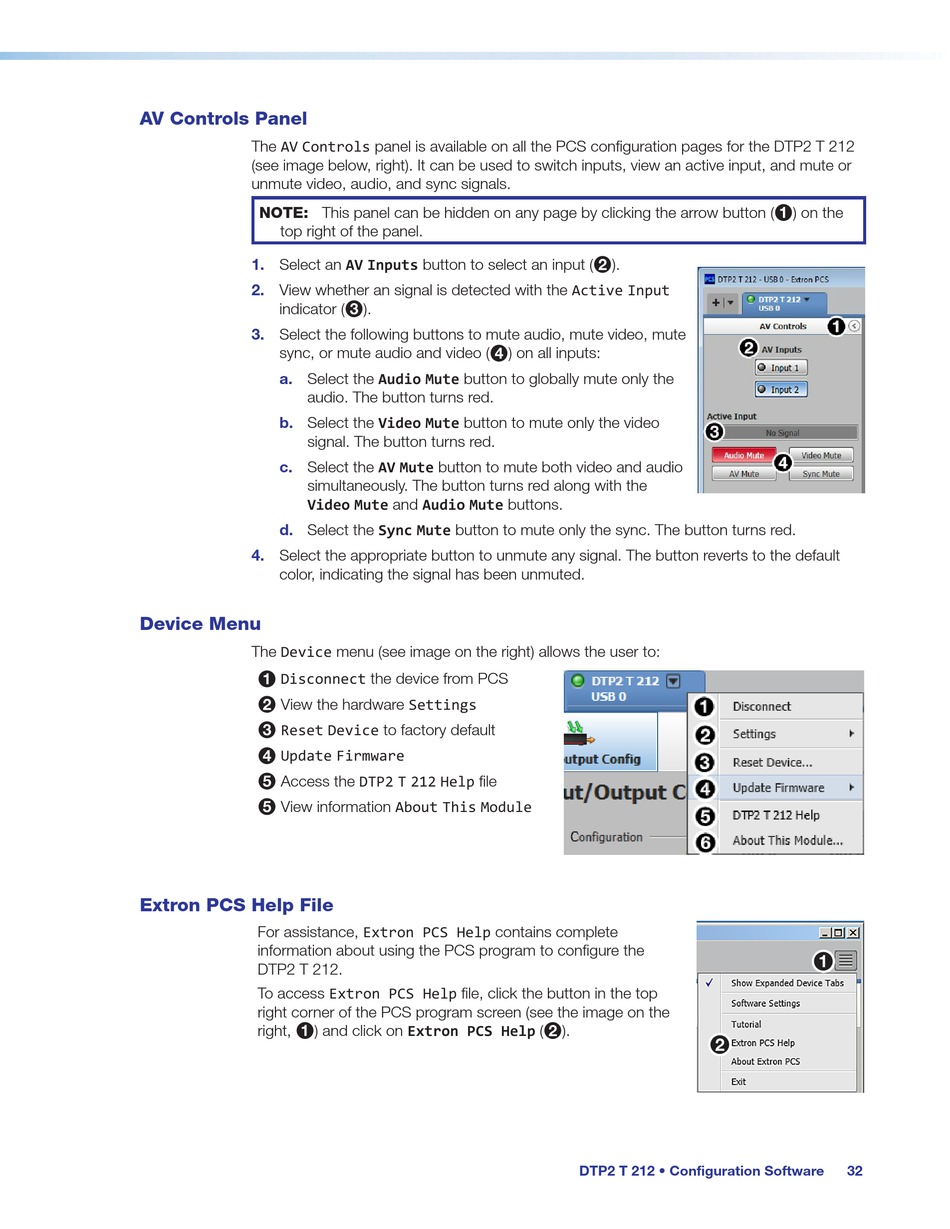

AV Controls Panel

The AV Controls panel is available on all the PCS configuration pages for the DTP2 T 212
(see image below, right). It can be used to switch inputs, view an active input, and mute or
unmute video, audio, and sync signals.
NOTE: This panel can be hidden on any page by clicking the arrow button (
top right of the panel.
1. Select an AV Inputs button to select an input (
2. View whether an signal is detected with the Active Input
indicator (
3.
Select the following buttons to mute audio, mute video, mute
sync, or mute audio and video (
a. Select the Audio Mute button to globally mute only the
audio. The button turns red.
b. Select the Video Mute button to mute only the video
signal. The button turns red.
c. Select the AV Mute button to mute both video and audio
simultaneously. The button turns red along with the
Video Mute and Audio Mute buttons.
d. Select the Sync Mute button to mute only the sync. The button turns red.
4. Select the appropriate button to unmute any signal. The button reverts to the default
color, indicating the signal has been unmuted.

Device Menu

The Device menu (see image on the right) allows the user to:
Disconnect the device from PCS
1
View the hardware Settings
2
Reset Device to factory default
3
Update Firmware
4
Access the DTP2 T 212 Help file
5
View information About This Module
5

Extron PCS Help File

For assistance, Extron PCS Help contains complete
information about using the PCS program to configure the
DTP2 T 212.
To access Extron PCS Help file, click the button in the top
right corner of the PCS program screen (see the image on the
right, ) and click on Extron PCS Help (
1
).
3
) on all inputs:
4
).
2
).
2
2 2
DTP2 T 212 • Configuration Software
