Installing the optional output cards
If the optional cards are already installed in the ISM 824, connect suitable display
devices and configure the input and outputs as applicable.
"Operation and Setup",
Programming and Control", chapter 5, "ISM 824 Multiswitcher Software",
and
chapter 6, "HTML Operation",
multiswitcher.
If the cards are not pre-installed, install the card following the steps below:
1.
Turn off the ISM 824, and remove the power cord. Repeat for all connected
devices.
2.
Remove the blank from the rear output port where the card is to be inserted.
To do this, loosen and remove the two retaining screws (top and bottom), and
lift the blank away.
N Re-use the screws to secure the new output card in place. Retain the blanks for
future use.
Before installing Dual output wideband cards, refer to
page 1-2,
Remove the card from its outer box and, holding the cards by the rear frame
3.
or BNC connectors, remove the card from the anti-ESD bag, taking care not to
touch any of the components on the board.
4.
With the card upright, align the front (non connector end) of the card with
the top and bottom plastic guides in the ISM 824 (see figure 2-11). Slide the
card in carefully, ensuring that it remains within the guides, and push it home
firmly.
-Y
8
R /R
7
6
G /Y
S
V ID
U T
IN P
5
B /C
4
B -Y
3
V
2
H /H
1
V
8
T
S E
7
R E
6
U T
S
5
IN P
4
3
2
/6 0
Hz
50
0
X.
1
24
A
MA
10 0-
1.2

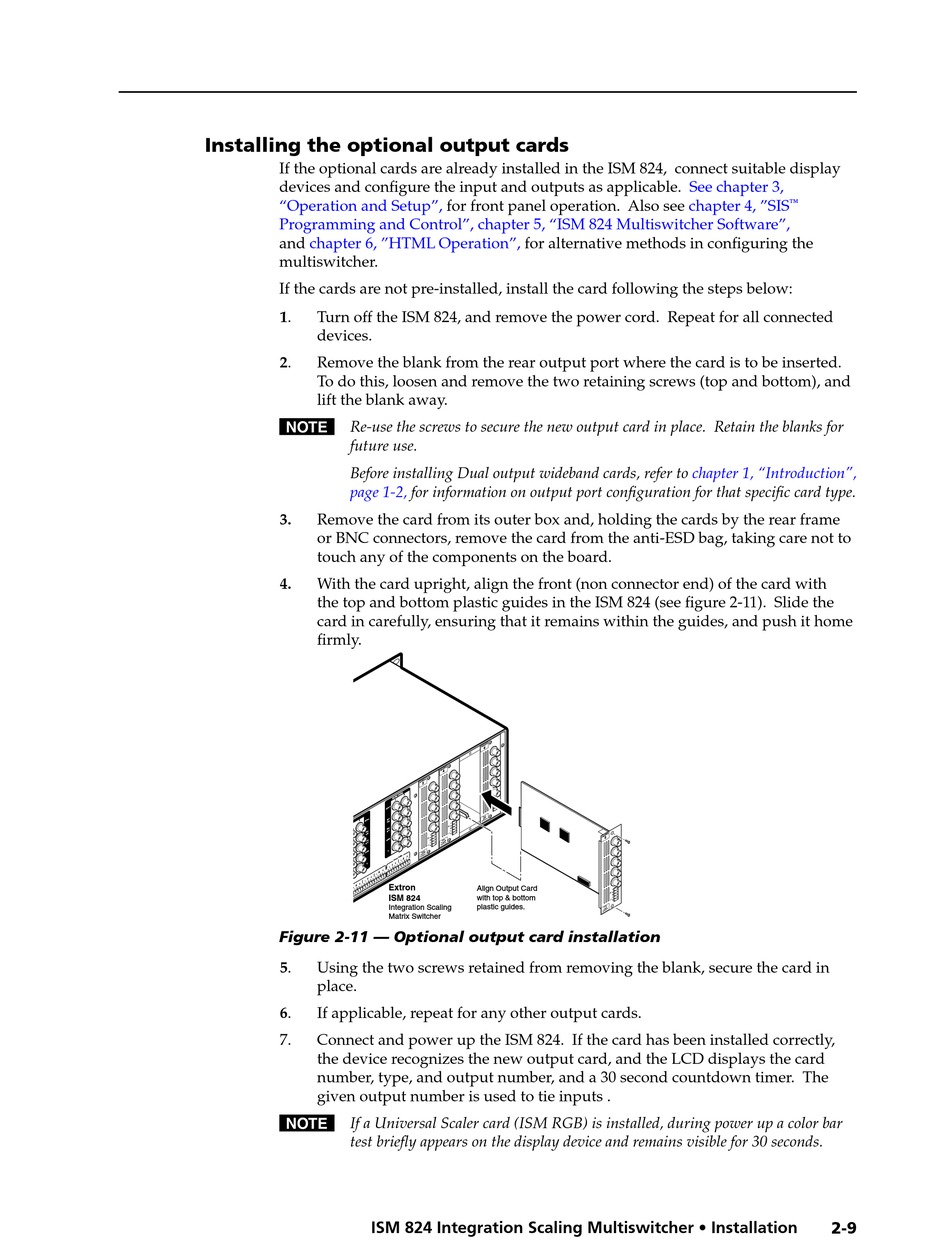

Figure 2-11 — Optional output card installation
Using the two screws retained from removing the blank, secure the card in
5.
place.
If applicable, repeat for any other output cards.
6.
7.
Connect and power up the ISM 824. If the card has been installed correctly,
the device recognizes the new output card, and the LCD displays the card
number, type, and output number, and a 30 second countdown timer. The
given output number is used to tie inputs .
N If a Universal Scaler card (ISM RGB) is installed, during power up a color bar
test briefly appears on the display device and remains visible for 30 seconds.
ISM 824 Integration Scaling Multiswitcher • Installation
