View Comm Settings Menu; "Editing The Communications Settings - Extron electronics ISM 824 User Manual

View Comm Settings menu

The fourth menu level, View Comm Settings is reached by pressing the Menu
button four times from the default display cycle, or if at a different menu, by
pressing the button repeatedly times until this menu is shown on the LCD screen.
Default
Cycle
Menu
Auto
Menu
Input
Configuration
Menu
Output Card
Configuration
Menu
30
sec. View Comm
Settings
Menu
30
sec.
System Reset
Menu

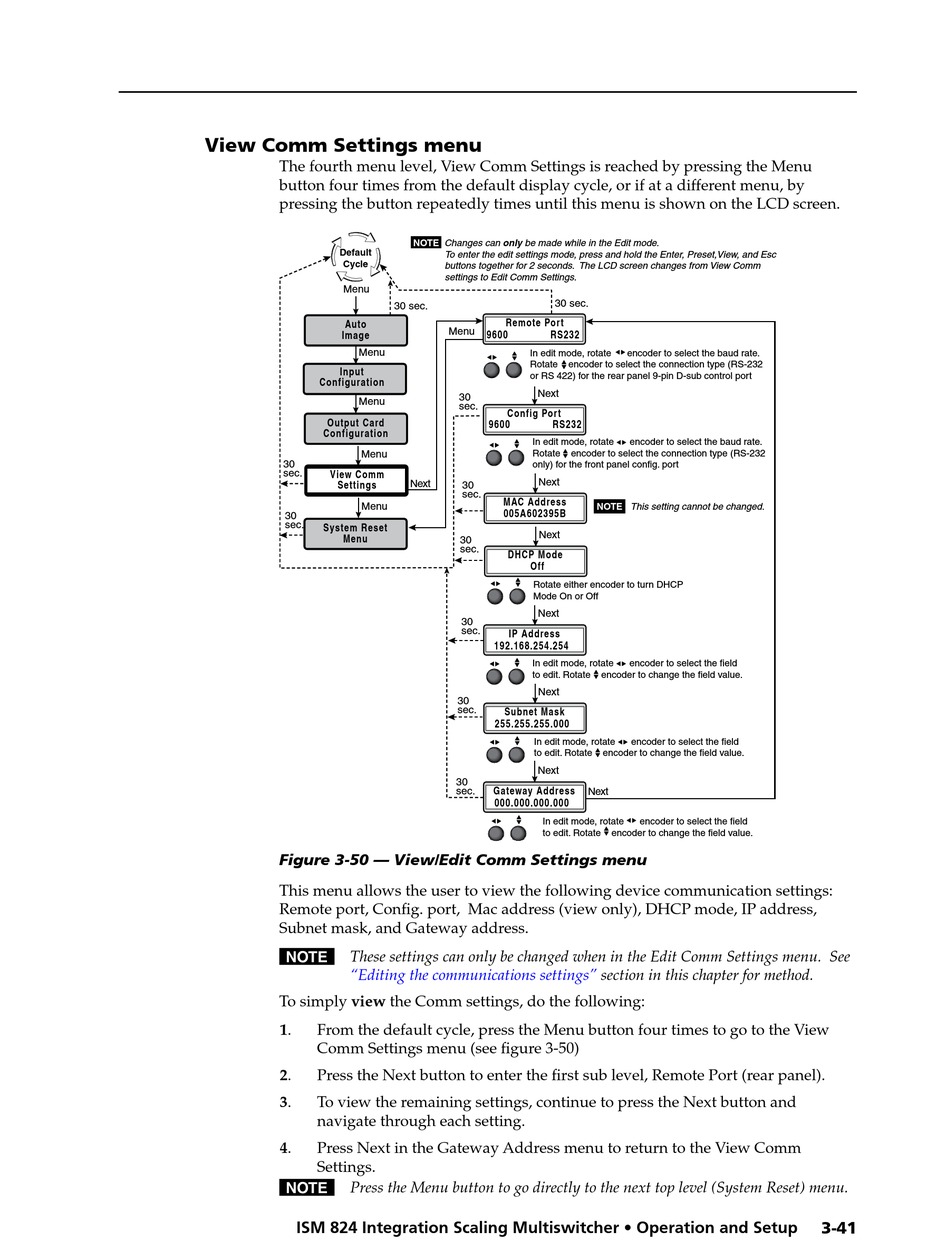

Figure 3-50 — View/Edit Comm Settings menu
This menu allows the user to view the following device communication settings:
Remote port, Config. port, Mac address (view only), DHCP mode, IP address,
Subnet mask, and Gateway address.
N These settings can only be changed when in the Edit Comm Settings menu. See

"Editing the communications settings"

To simply view the Comm settings, do the following:
1. From the default cycle, press the Menu button four times to go to the View
Comm Settings menu (see figure 3-50)
2. Press the Next button to enter the first sub level, Remote Port (rear panel).
3. To view the remaining settings, continue to press the Next button and
navigate through each setting.
4. Press Next in the Gateway Address menu to return to the View Comm
Settings.
N Press the Menu button to go directly to the next top level (System Reset) menu.
ISM 824 Integration Scaling Multiswitcher • Operation and Setup
NOTE Changes can only be made while in the Edit mode.
To enter the edit settings mode, press and hold the Enter, Preset,View, and Esc
buttons together for 2 seconds. The LCD screen changes from View Comm
settings to Edit Comm Settings.
30 sec.
30 sec.
Remote Port
Menu
9600 RS232
In edit mode, rotate
Rotate encoder to select the connection type (RS-232
or RS 422) for the rear panel 9-pin D-sub control port
Next
30
sec.
Config Port
9600 RS232
In edit mode, rotate
Rotate encoder to select the connection type (RS-232
only) for the front panel config. port
Next
Next
30
sec.
MAC Address
005A602395B
Next
30
sec.
DHCP Mode
Off
Rotate either encoder to turn DHCP
Mode On or Off
Next
30
sec.
IP Address
192.168.254.254
In edit mode, rotate
to edit. Rotate
Next
30
sec.
Subnet Mask
255.255.255.000
In edit mode, rotate
to edit. Rotate
Next
30
Gateway Address
sec.
000.000.000.000
In edit mode, rotate
to edit. Rotate
encoder to select the baud rate.
encoder to select the baud rate.
NOTE This setting cannot be changed.
encoder to select the field
encoder to change the field value.
encoder to select the field
encoder to change the field value.
Next
encoder to select the field
encoder to change the field value.
section in this chapter for method.
3-41
