Video Scaler configuration menu

To configure the Video Scaler card using the Output Card Configuration menus (see
figure 3-48), follow the steps in each submenu shown below.
The Output Card Configuration submenus for the Video Scaler card are:
Select Output, Output Config., User Presets, and Advanced Config.
N Within any submenu, press the Menu button to go directly to the top level
(Output Card Configuration) menu.
N If no front panel buttons or encoders are used for 30 seconds, the device times
out and goes back to the default display cycle.

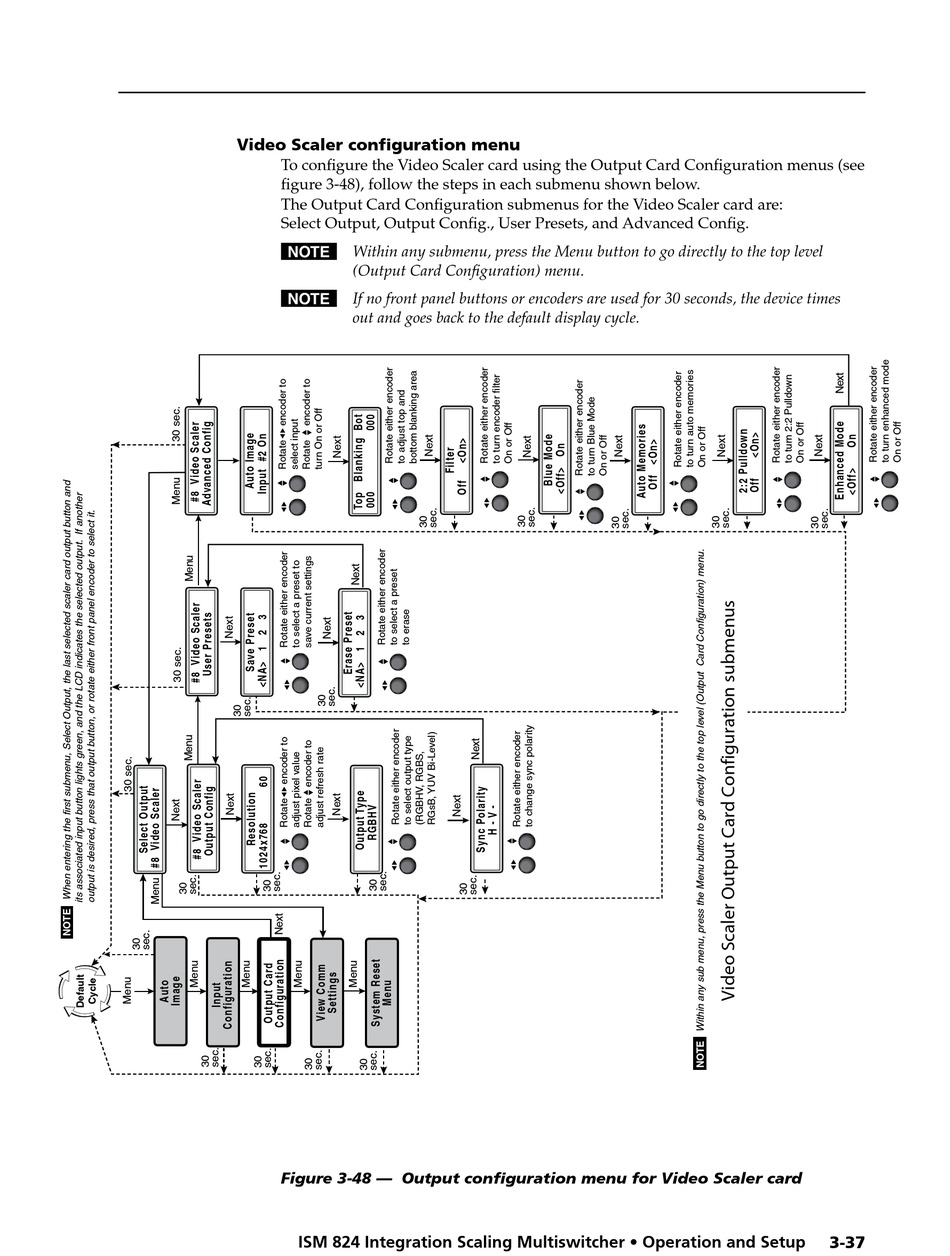

Figure 3-48 — Output configuration menu for Video Scaler card
ISM 824 Integration Scaling Multiswitcher • Operation and Setup
3-37
