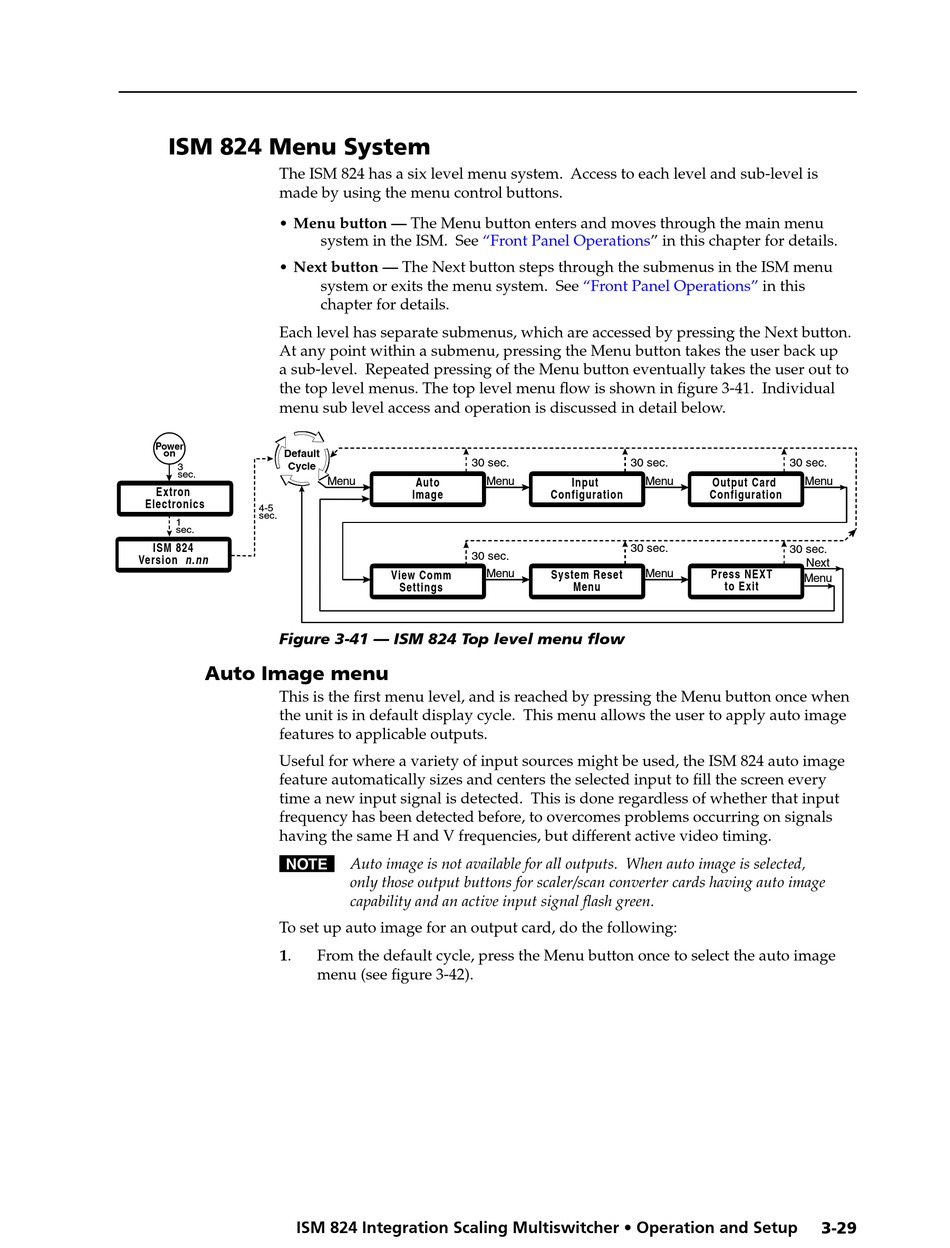

ISM 824 Menu System

The ISM 824 has a six level menu system. Access to each level and sub-level is
made by using the menu control buttons.
Menu button — The Menu button enters and moves through the main menu
•
• Next button — The Next button steps through the submenus in the ISM menu
Each level has separate submenus, which are accessed by pressing the Next button.
At any point within a submenu, pressing the Menu button takes the user back up
a sub-level. Repeated pressing of the Menu button eventually takes the user out to
the top level menus. The top level menu flow is shown in figure 3-41. Individual
menu sub level access and operation is discussed in detail below.
Power
on Default
Cycle
3
sec.
Extron
Electronics
4-5
sec.
1
sec.
ISM 824
Version n.nn
Figure 3-41 — ISM 824 Top level menu flow

Auto Image menu

This is the first menu level, and is reached by pressing the Menu button once when
the unit is in default display cycle. This menu allows the user to apply auto image
features to applicable outputs.
Useful for where a variety of input sources might be used, the ISM 824 auto image
feature automatically sizes and centers the selected input to fill the screen every
time a new input signal is detected. This is done regardless of whether that input
frequency has been detected before, to overcomes problems occurring on signals
having the same H and V frequencies, but different active video timing.
N Auto image is not available for all outputs. When auto image is selected,
To set up auto image for an output card, do the following:
1.
ISM 824 Integration Scaling Multiswitcher • Operation and Setup
system in the ISM. See "Front Panel
system or exits the menu system. See
chapter for details.
30 sec.
Menu Menu
Auto
30 sec.
Menu
View Comm
Settings
only those output buttons for scaler/scan converter cards having auto image
capability and an active input signal flash green.
From the default cycle, press the Menu button once to select the auto image
menu (see figure 3-42).
Operations" in this chapter for details.
"Front Panel Operations"
30 sec.
Menu
Input Output Card
Configuration Configuration
30 sec.
Menu Press NEXT
System Reset
to Exit
Menu
in this
30 sec.
Menu
30 sec.
Next
Menu
3-29
