REVO C 2PH from 60A to 800A - 690V

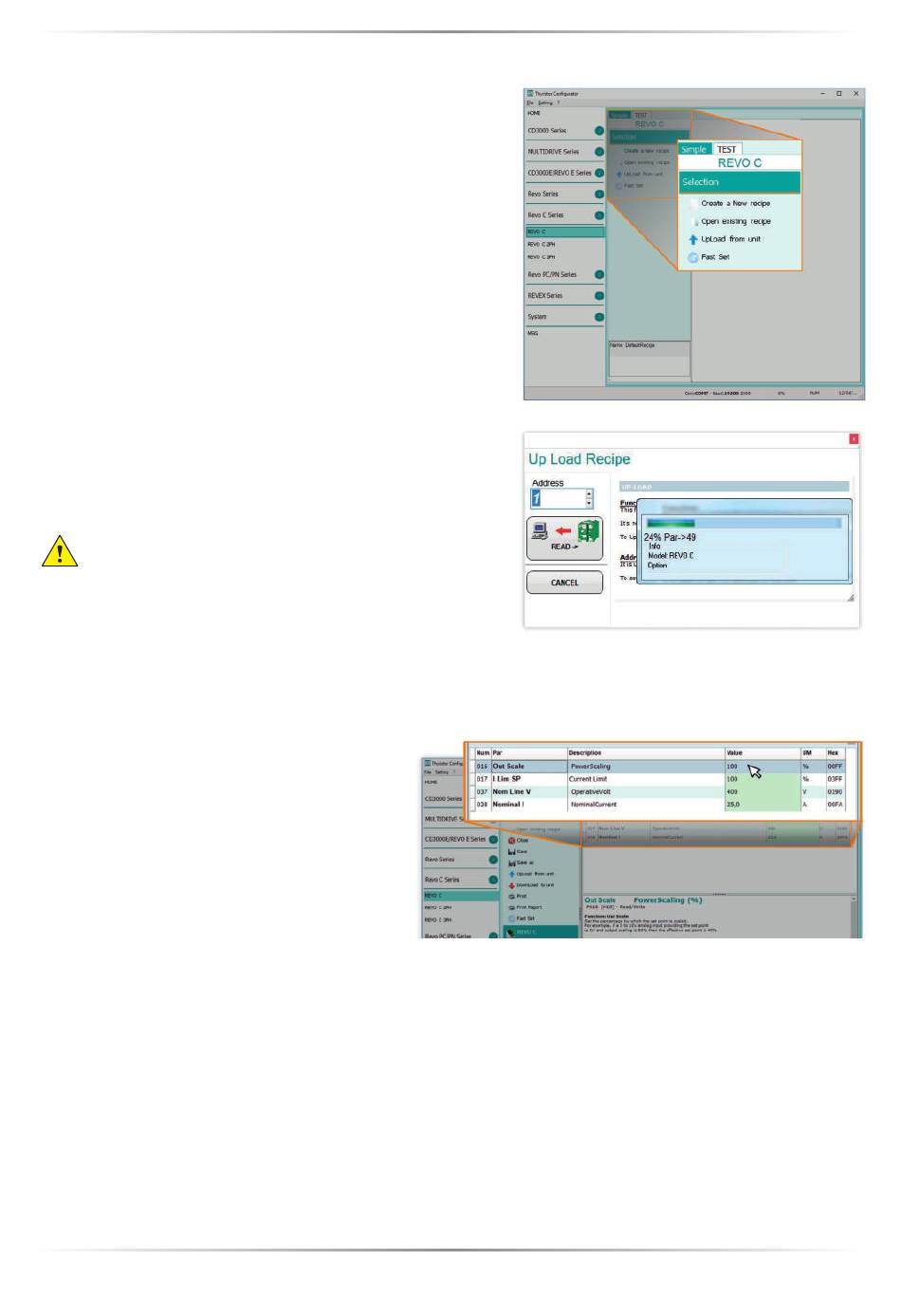

10.5 Using the Confi gurator
After software has been installed, communication has been
set up and model type selected, is possible operate with
power controller.
10.5.1 To view or save a power controller's settings
using "Simple" view section:
1) Click Simple, if not already on the simple view
2) Click
Upload from unit
3) Set the address, if necessary
4) Click
READ->
5) Wait for the software to read the parameter settings
6) Click
OK
7) If need save the settings in a recipe fi le:
- Click
Save
- Name the recipe
- Click button
Save
NOTE! In the simple view the change are not "live", so to
take eff ect the change in simple section is necessary to
download it following the download procedure.
10.5.2 To edit a setting in a recipe:
1) Click Simple, if not already on the simple view
2) Click existing recipe
Open
3) Locate and select the recipe fi le and click
Open
4) Click
OK
5) Click the menu with the setting you want to
change
-
SETUP
-
ADVANCED SETUP
-
HARDWARE
-
COM MUNICATIONS
6) Select the value you want to change
7) Edit the value with the increment and decrement buttons in the fi eld or type the new value and press the
Enter key
8) Repeat steps 5 to 7 for all the changes you want to make
9) To save the settings in a recipe fi le:
- Click
Save
- Name the recipe
- Click button
Save
