REVO C 2PH from 60A to 800A - 690V

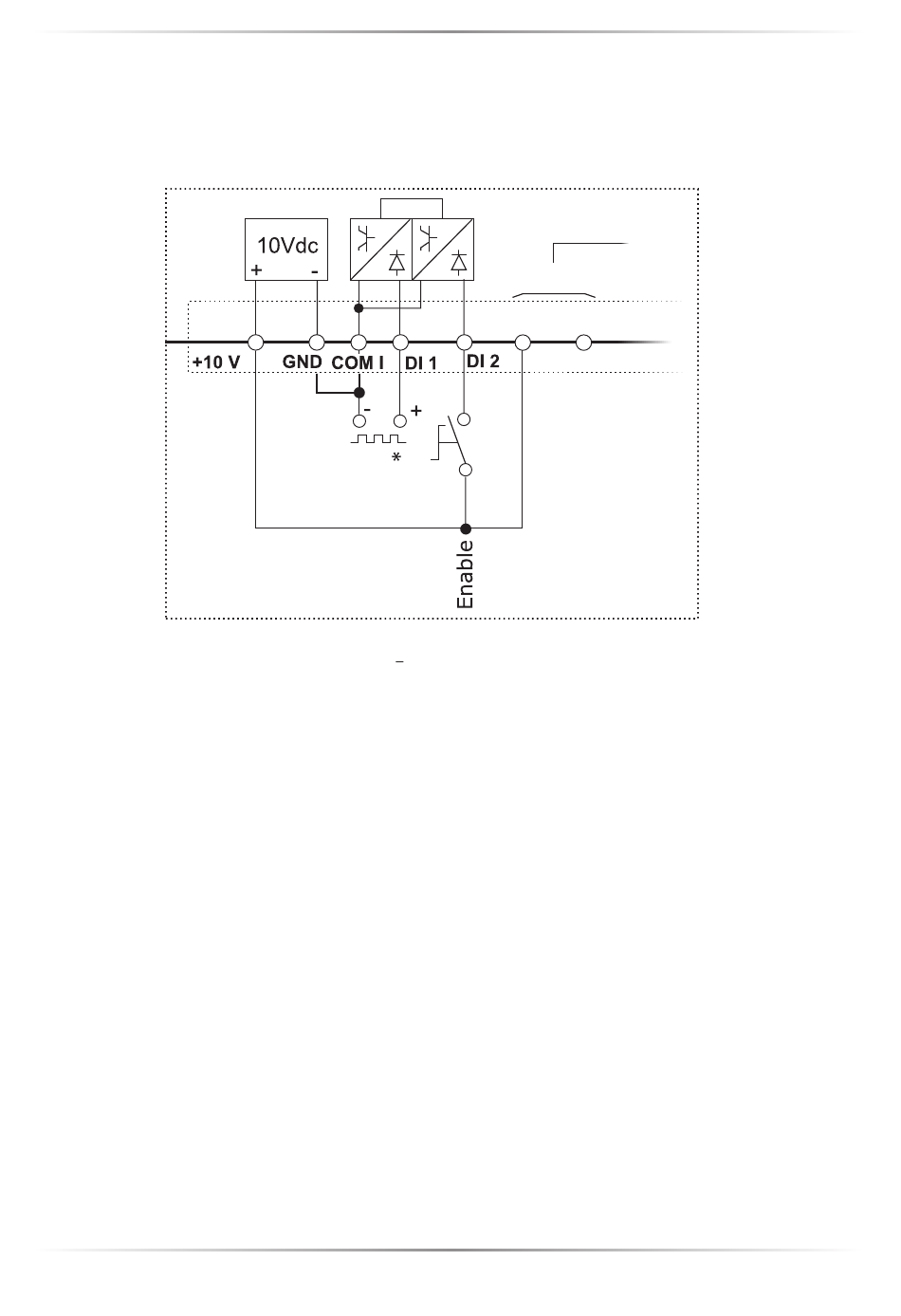

8.7.1 SSR Control Input schematic
For SSR input use follow the schematic below and configure Digital Input 1 as Fast Enable.
M1
* SSR Input: 4÷30Vdc 5mA Max (ON >4Vdc / OFF <1Vdc)
9 6
13
10
SSR
INPUT
Frequency 3Hz Max - On time min. 100 ms
Analog Input 1
5
12 11
32
