10.5.10 To retrieve a data log fi le from the power controller:
1) Click Test, if not already on the test view
2) Click
Online
3) Click
Load Analyzer
4) Click
Connect
5) Select a fi le from the list
6) Click
Download
7) Select a location and click
8) Wait for the fi le to download. This can take
up to ten minutes for the largest fi le
9) To delete the log fi le from the controller
memory, if desired, click
10) Click
Disconnect
11) Close the
Data Log
12) Close the
Load Analyzer

10.6 Software General information

Here it is described the Confi gurator Software and how use it.

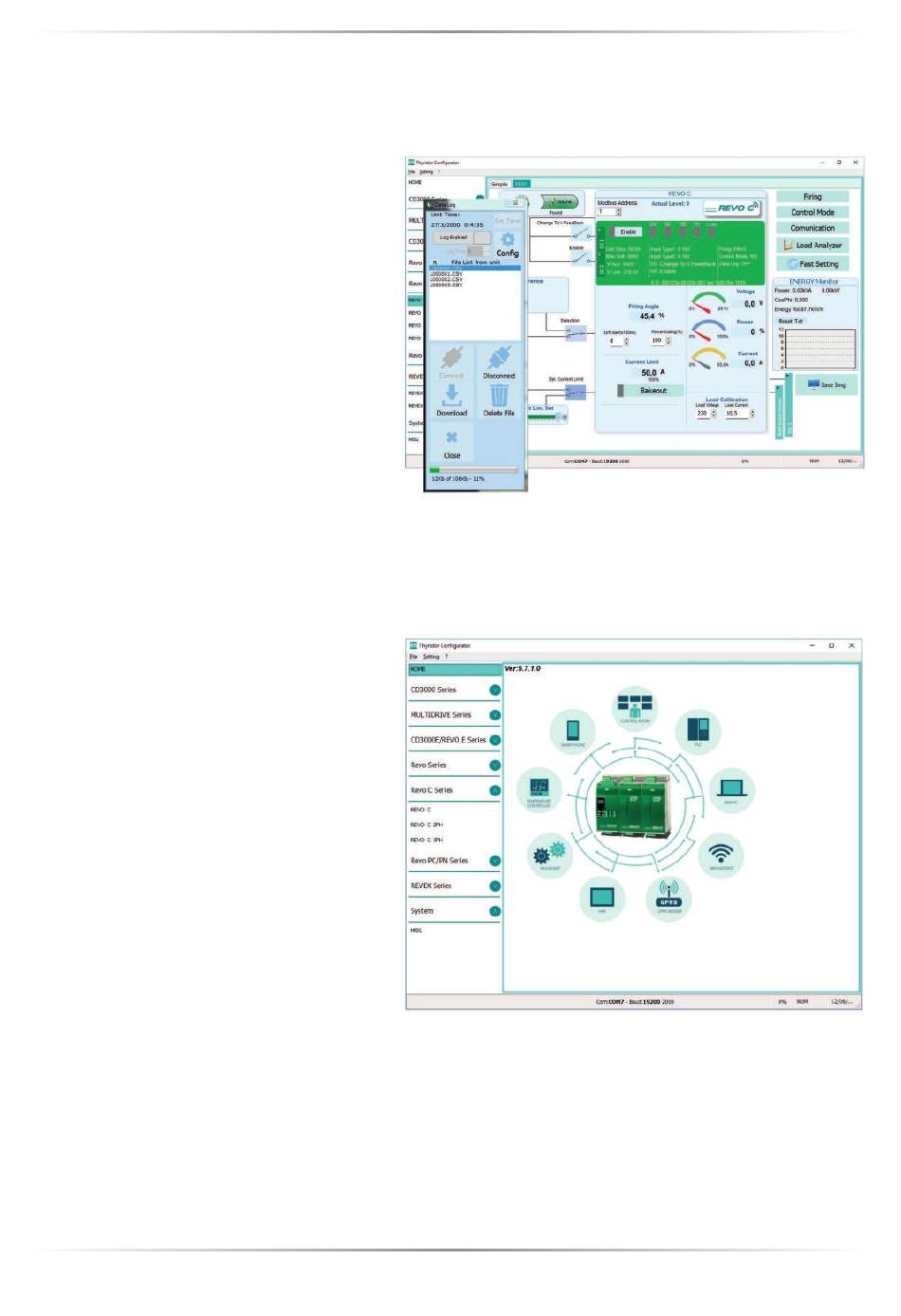

10.6.1 Program Window
Main Menu
Access these menus.
File menu
Exit: close the program
Setting menu
Language: open language Settings dialog
box
Port: open Serial Port dialog box
Serial
Option: open General Option dialog box
? (Help) menu
Log: open a serial
Message
communication message view
About: displays the About dialog with the
program name and version and contact
information
Instruments selector
Select the right instrument to use:
HOME: the default view
REVO-C: open the Simple and Test views for a single-phase power controller
3PH: access the Simple and Test views for a three-phase power controller
REVO-C
MSG: opens a serial communication message view
Status Bar
Indicates information such as time and date, communications port and baud rate.
Save
Delete File
window
window
59
