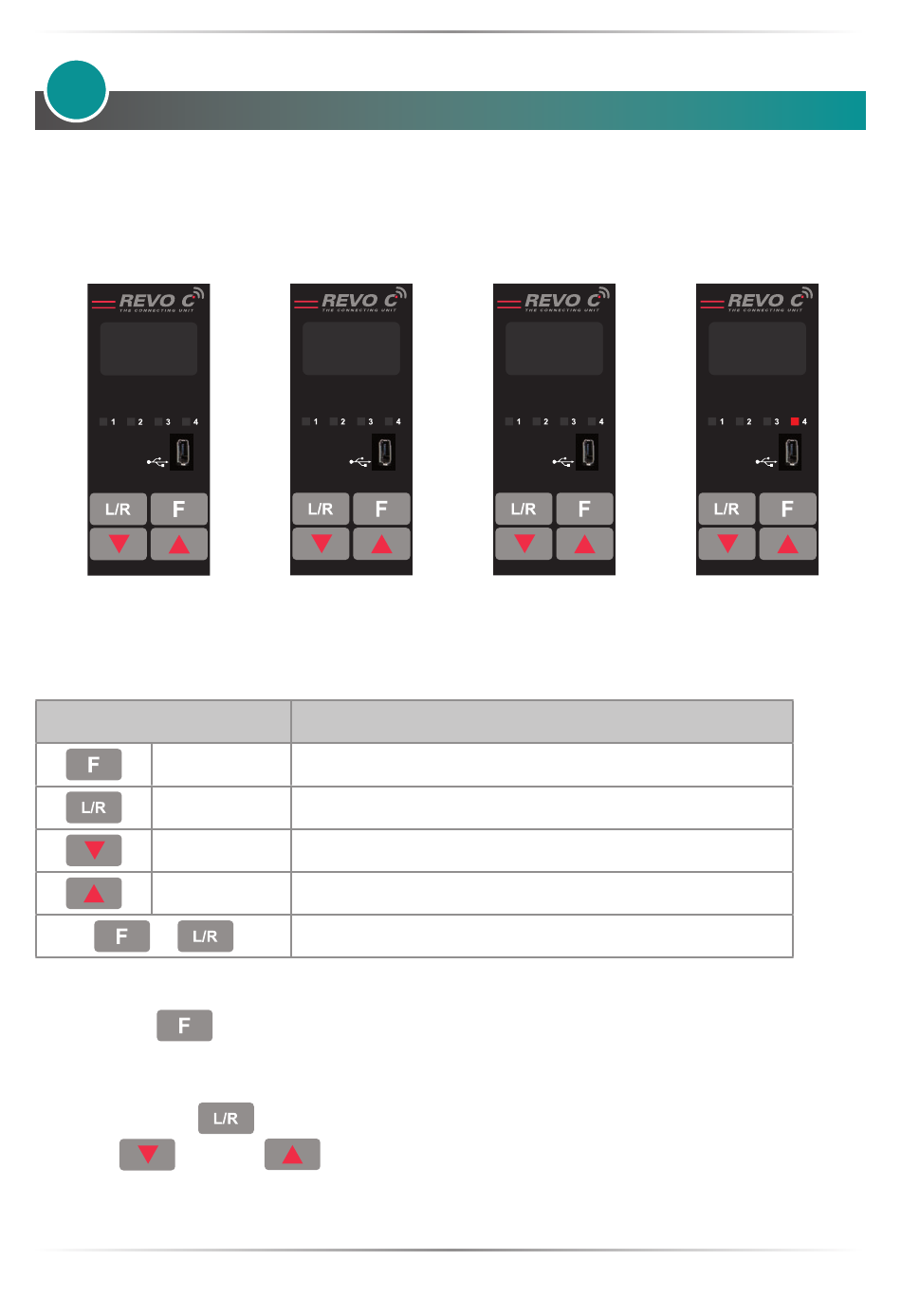

Control Panel

The Control Panel is placed on the front of the thyristor unit, on his display you can visualize the alarms, the
input and output signals and all the configuration parameters.
Iout0.0A
SP 100%
Output Current RMS
On the home page the keys are used as follows:
Press...
Function
Local/Remote
Up
Down
+
To view the status parameters:
Press Function
To set the set point locally:
Press Local/Remote
Use Down and/or Up
Vout0.0V
SP 100%
Output Voltage (RMS)
Scroll through the parameters on the home page
Switch between local and remote set point for power demand
Increment power demand set point when set to local
Decrement power demand set point when set to local
Press and hold for about two seconds to access the menus
once to advance from one parameter to the next
(Note: indicator 1 flashes steadily when set point is set locally)
to set the local set point.
Pout0%
SP 100%
Output Power
(Average)
to...
38
User's manual
Aux High
SP 100%
Alarms
