REVO C 2PH from 60A to 800A - 690V
16

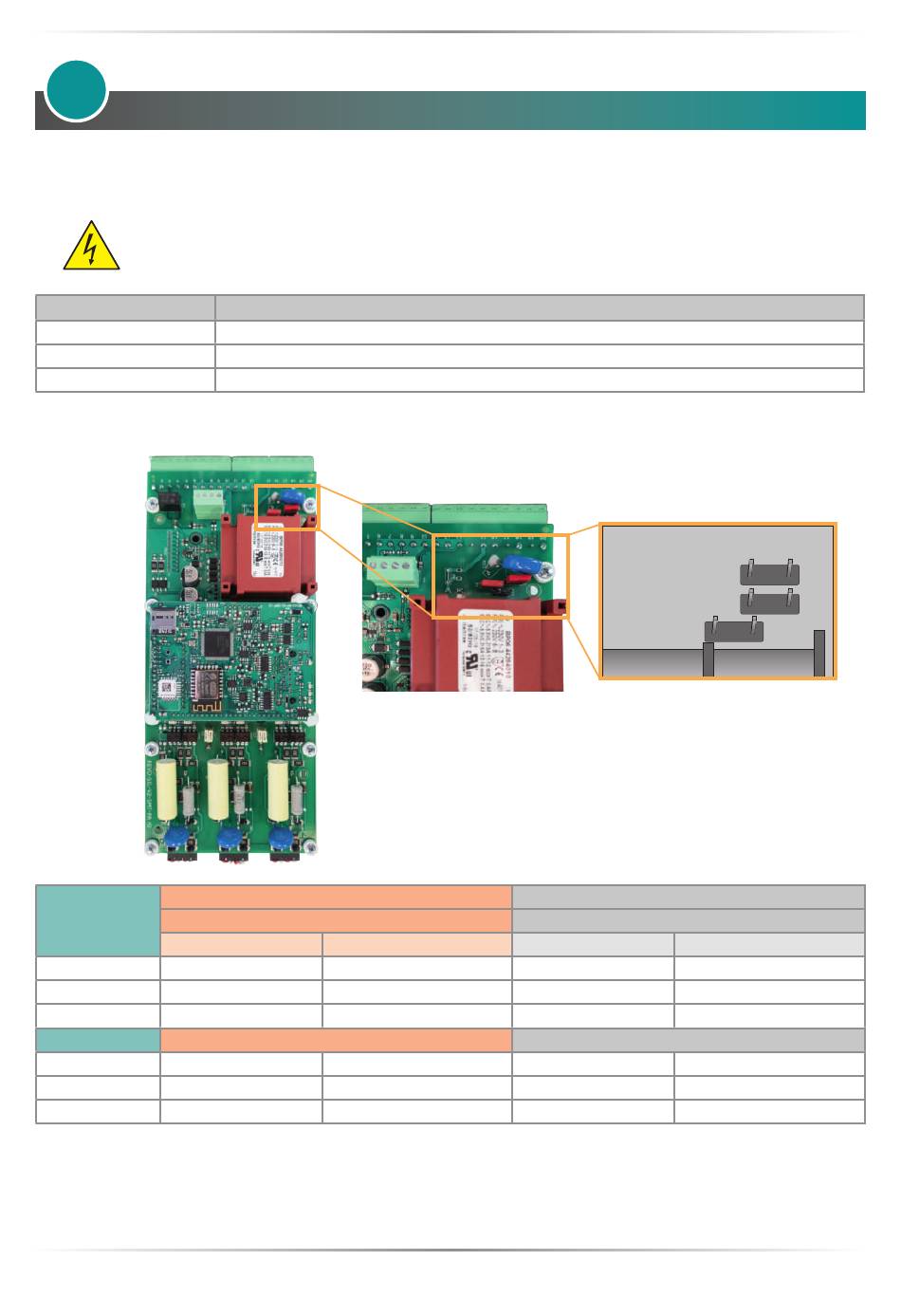

Supply the electronic board

The REVO C thyristor unit, to work, requires a voltage supply for the electronic boards. The Max consumption is 8VA.
The voltage supply for the electronic boards is configured in line with customer requirements that are defined
in the Order Code. The Order Code is written on the identification label.
Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
Terminal M1
18
19
20
To change auxiliary supply voltage sold the correct link-jumper on REVO C board, the type of mounted
transformer depends of the chosen Voltage in the order code.
Order Code
Transformer range
RC2_ _ _-_1
RC2_ _ _-_2
RC2_ _ _-_3
RC2_ _ _-_5
RC2_ _ _-_6
RC2_ _ _-_7
If the Auxiliary Voltage (written on the identification label) is different from Supply Voltage (to the load), use an
external transformer with primary equal to load voltage and secondary equal to the Auxiliary Voltage.
Attention! never link all the jumpers JP1+JP2+JP3 at the same time or JP3 + any other jumper, JP3 must be
always alone, follow only the configuration shown.
Description
Voltage Supply for Electronic Boards (Auxiliary Voltage)
Not Used
Voltage Supply for Electronic Boards (Auxiliary Voltage)
As ordered
Jumper JP1 + JP2 are linked
Line voltage
90:135V
180:265V 200/208/220/230/240V
238:330V
Only Jumper JP3 is linked
380/400/415/440/480V
342:528V
540:759V
540:759V
Transformer range
100/120V
277V
600V
690V
76
User's manual
JP1
JP2
JP3
Change to
Link only Jumper JP3
Line voltage
180:265V 200/208/220/230/240
342:528V 380/400/415/440/480
540:759V
Link Jumper JP1 + JP2
180:265V 200/208/220/230/240V
238:330V
238:330V
600/690
277V
277V
