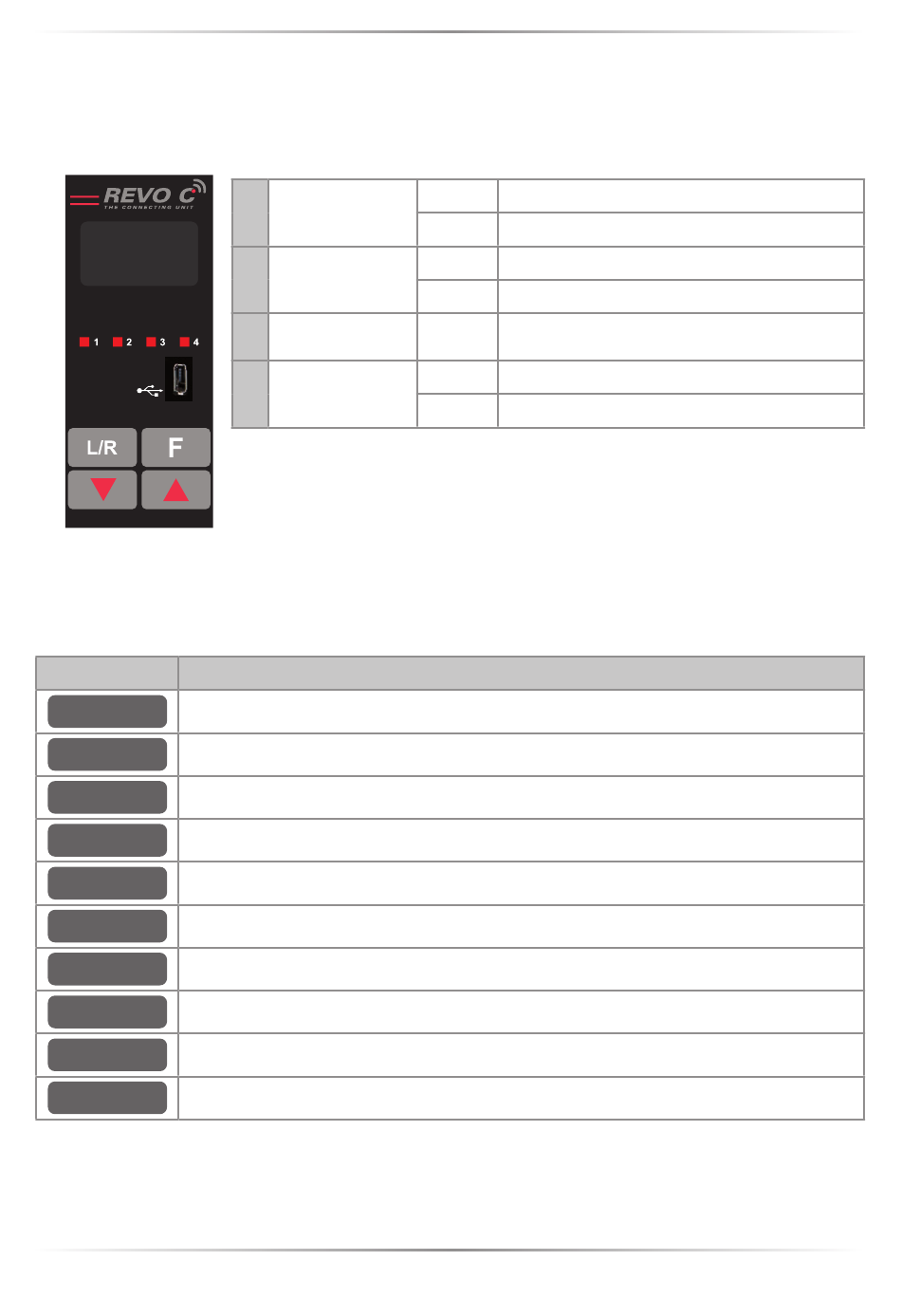

9.2 Control Panel Led

The four indicators on the control panel show the general state of the power controller.
Aux High
SP 100%

9.3 Displayed alarms

Alarm Description
HeatBrk
Heater Break
Aux High
Aux voltage too high
Aux Low
Aux voltage too low
ComError
Communication Watchdog error
Line Loss
Line power not detected
SD Error
SD card error
SHRT
Short Circuit on SCR
SCR Temp
Thermal Switch over temperature
Line Loss
L1 and L2 not detected
Phase Loss
L1 or L2 or L3 not detected
Local/Remote
1
Enable
2
Communications
3
Alarm
4
Flashing Power output set locally or via communications
Off
Power output set remotely (via analog input)
On Output enabled
Off Output disabled
Flashing Active communications
Flashing Active alarm
Off
No alarm
