10.5.8 To reset the power totals:
1) Click Test, if not already on the test view
2) Click
Online
3) Click
Reset Totals
4) Click
Yes

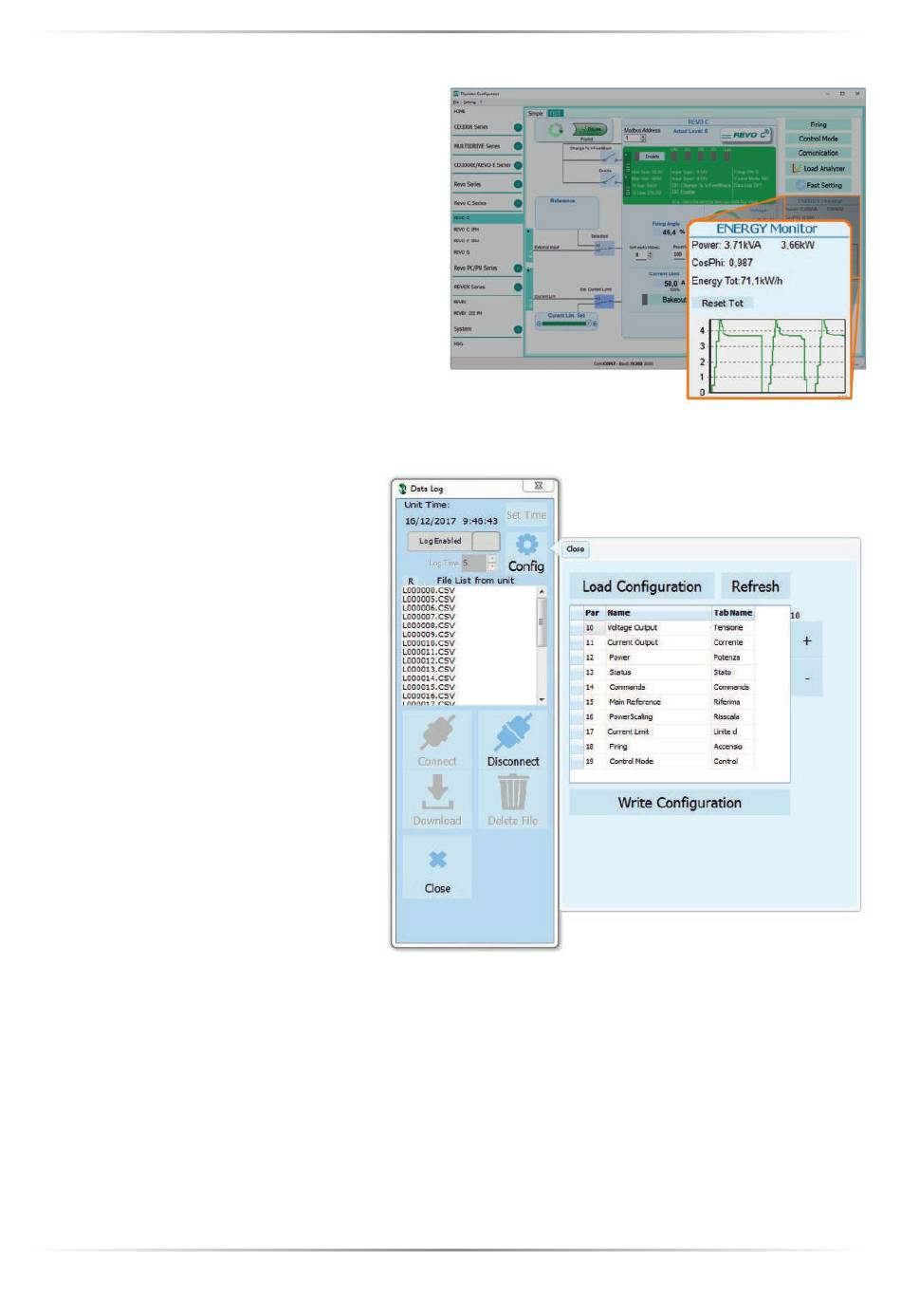

10.5.9 Setting Up and Using Data Logging
To set up data logging:
1) Click Test, if not already on the test view
2) Click
Online
3) Click
Load Analyzer
4) On the
Load Analyzer
Log
5) In the window ensure the
Data Log
slider is set to
Log Enabled
6) Click
Set Time
7) If necessary Set the date and time and
close the date/time window
8) Set to the number of seconds
Log Time
between records
9) Click
Connect
10) Click Confi g
11) Click Load Confi guration
current list of logged parameters
12) For up to ten parameters to log:
-Click to add a parameter to the list
+
-In a row in the list either: Type a parameter's Modbus address in the
OR
-Select the parameter from the drop down list in the
Write Confi guration
13) Click
14) Click
Close
15) Click
Disconnect
16) Close the
Data Log
view click
Data
to view the
to send the parameter list to the controller
window
Par
fi eld
Name
