Advantages compared with analog thyristor unit

Communication RS485 is a standard feature of REVO C this allows the use of many information like: current,
power, load state and all the parameters for diagnostic and configuration. Ulterior advantages of the digital
system vs the analogical is the flexibility and the possibility of implement special characteristics without change
the hardware. Several strategies can be implemented and selected through the configuration parameters.

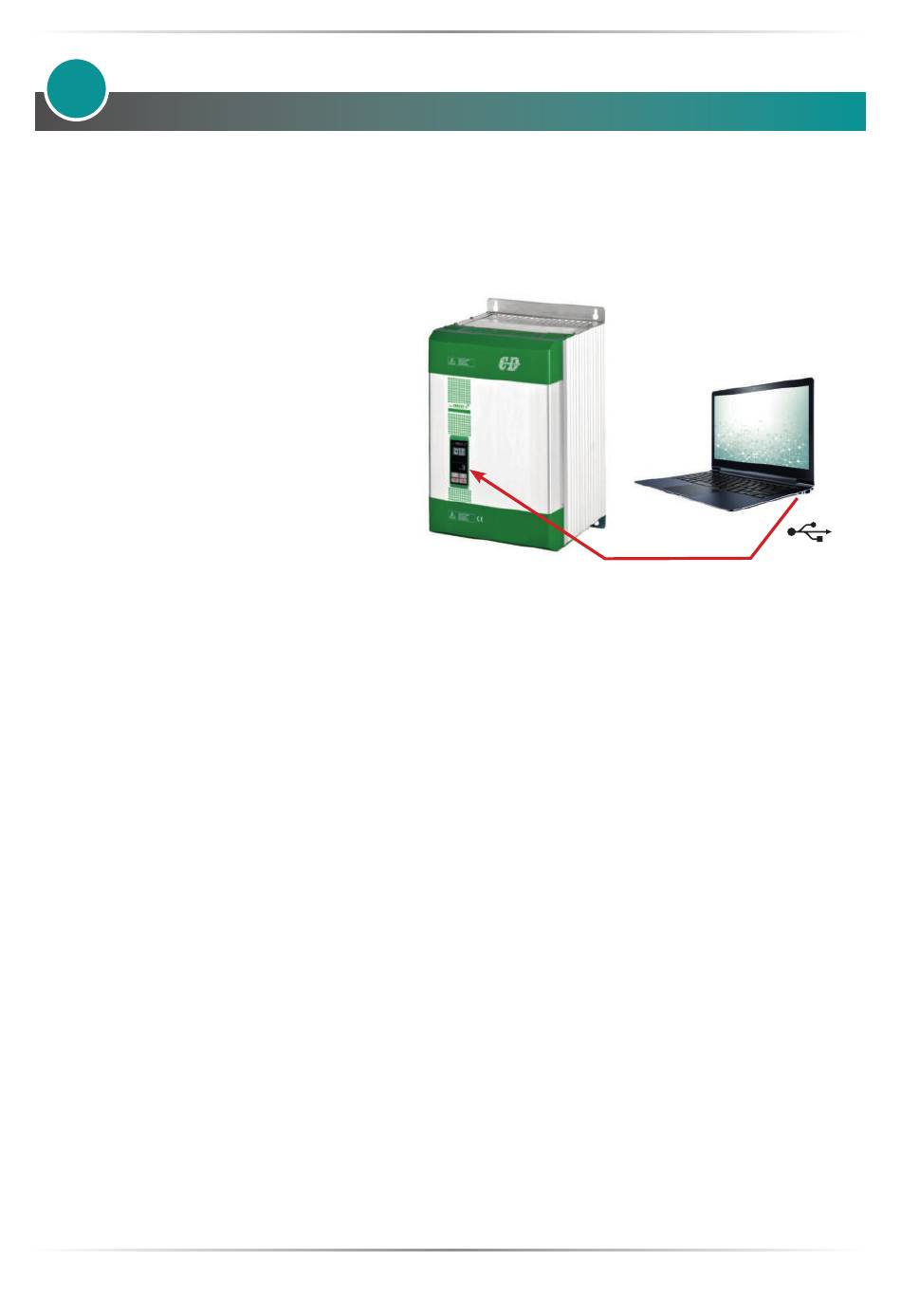

With software configuration, you can have access to the configuration parameters. To connect the Thyristor
unit to the computer use a micro USB cable.

1.1 Overview

Integrated semiconductor fusing, current transformer and user interface
• Saves installation time and eases setup and commissioning
• Delivers a user-friendly, intuitive interface
Industry-leading design and serviceability
• Offers a robust SCR design to meet a rugged industrial environment's high quality and reliability needs
• Provides quick and easy access to maintain and service fuses and individual legs in minimal time
• Enables fast troubleshooting by providing helpful thermal system diagnostics
Comprehensive power controller range
• Provides wide range of options from simple single phase to complex three-phase loads to 690V
100kA short circuit current rating (SCCR)
• Enables greater protection in the event of a short circuit
Control modes: contactor, voltage, current or power
• Satisfies a wide range of demanding thermal applications
Load firing modes: zero-cross, burst fire
• Handles a wide range of load types including nichrome, medium and long waveform infrared lamps, moly,
transformers, silicon carbide, UV lamps and tungsten
• Protects and extends the life of connected loads
Wide range of communication protocols
• Enable factory and process automation with connectivity to process and equipment data via Modbus®
RTU, Modbus® TCP, Wi-Fi, Profibus, Profinet, USB device (configuration and data file transfers)
Open heater and shorted SCR indication
• Minimizes production downtime with easy to understand, intelligent, troubleshooting diagnostics
Integrated USB and user interface for configuration
• Easily and safely program configuration settings as the user interface can be powered through USB
connec tion
• Eliminates need to work in a high voltage hazard environment. High voltage to the power controller and
system panel can be shut off and locked out for safety while configuring controller.
