REVEX
2PH from 30A to 40A
2

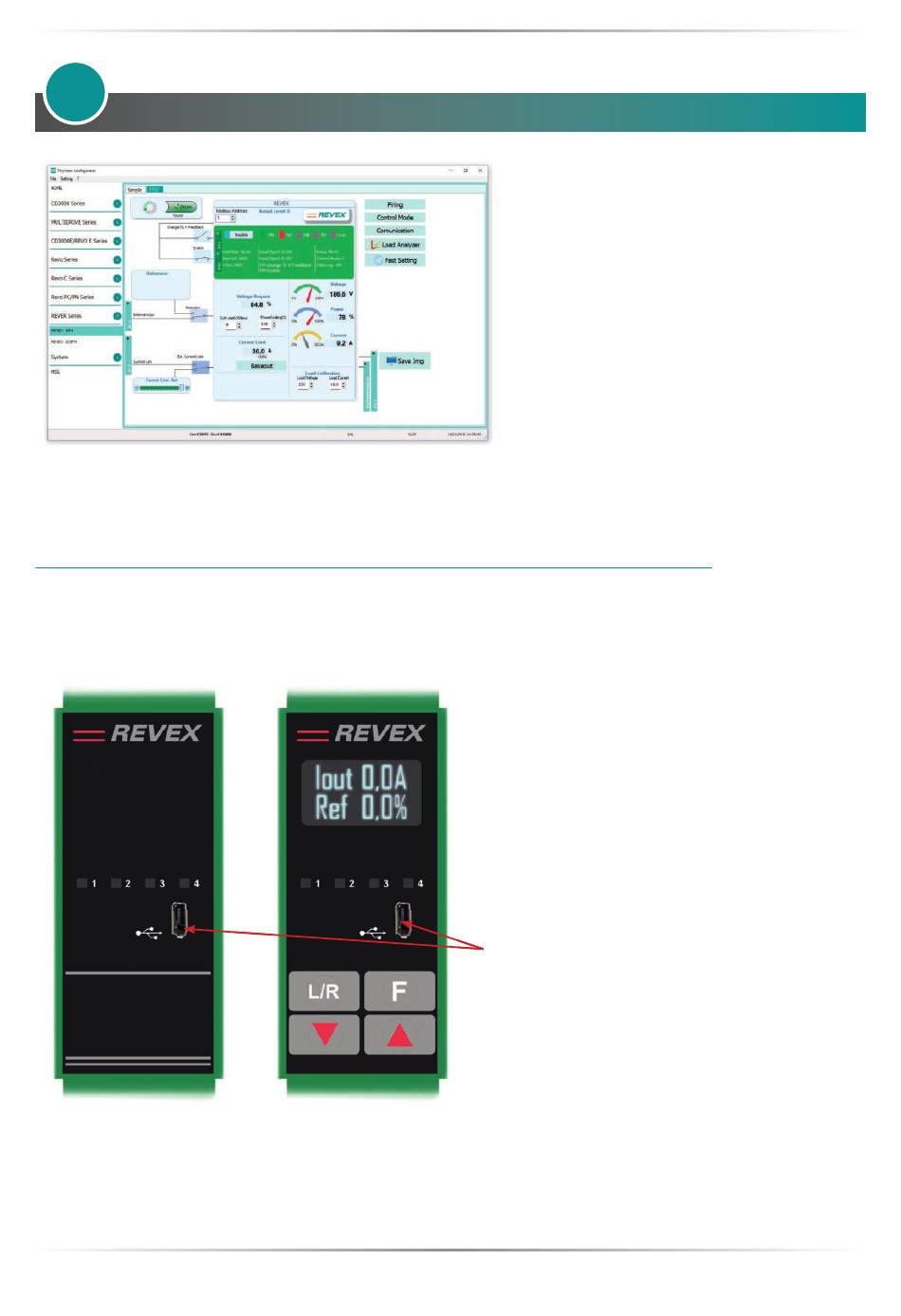

Software Configurator

Software Configurator download link:
https:/ /www.cdautomation.com/wp-content/uploads/ThyristorConfigurator_ver6.zip
without display
Option code:
2/3
on digit 12
with display
Option code:
0/5
on digit 12
11
Thyristor configurator software is free and is
possible download it from our site.
If the Order Code is in line with requirement,
then unit has been already configured in
Factory and it's ready to use.
You need the software only to modify the
ordered configuration. Anyway we suggest
to check the unit on the machine with the
"Test unit" section.
For install the software, launch the program
and follow the instructions on the screen.
Run the software configurator and set the
correct serial port number by menu setting-
serial com – port number.
To connect the unit at the PC, it's necessary
to use the micro USB 2.0 Modbus RTU cable.
USB connection need a driver to work
properly, you can find it from our site.
However the configuration software installer
will install as default the correct driver.
Micro USB
User's manual
