8.5 Power Terminals

Warning: Before connecting or disconnecting the unit check
that power and control cables are isolated from voltage sources.
Terminal
L1
L2
L3
T1
T2
Not controlled by the thyristor (Only S13/S14)
T3

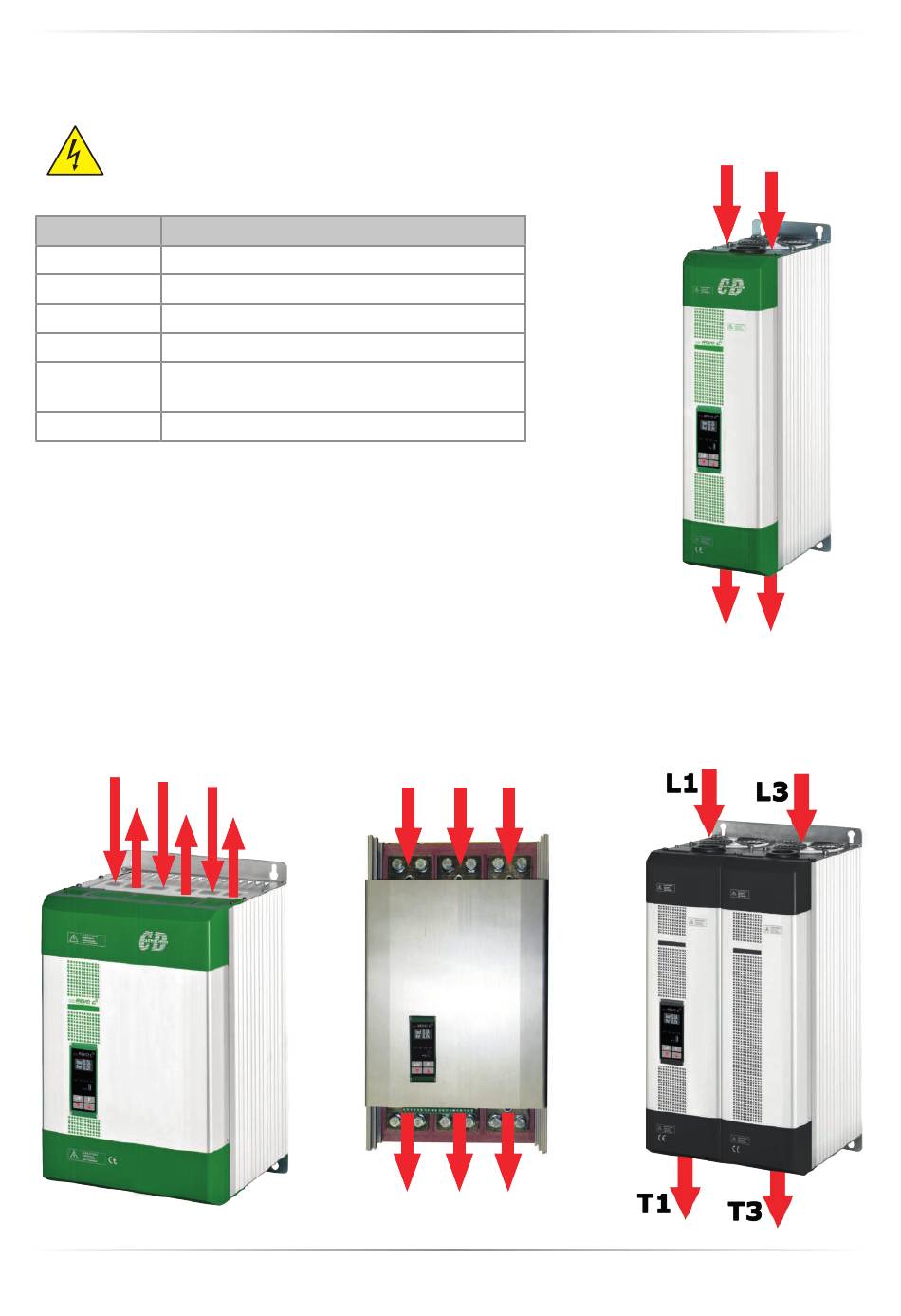

REVO-C 2PH
120-210A (S13)
L1
L2 L3
T1 T2 T3
Description
Line Input Phase 1
Line Input Phase 2 (Only S13/S14)
Line Input Phase 3
Load Output Phase 1
Load Output Phase 2 -
Load Output Phase 3
300A-700A (S14)
REVO-C 2PH
L1 L2 L3
T1 T2 T3
27
User's manual
REVO-C 2PH
60-90A (S11)
L1
L3
T1
T3
REVO-C 2PH
800A (S16)
