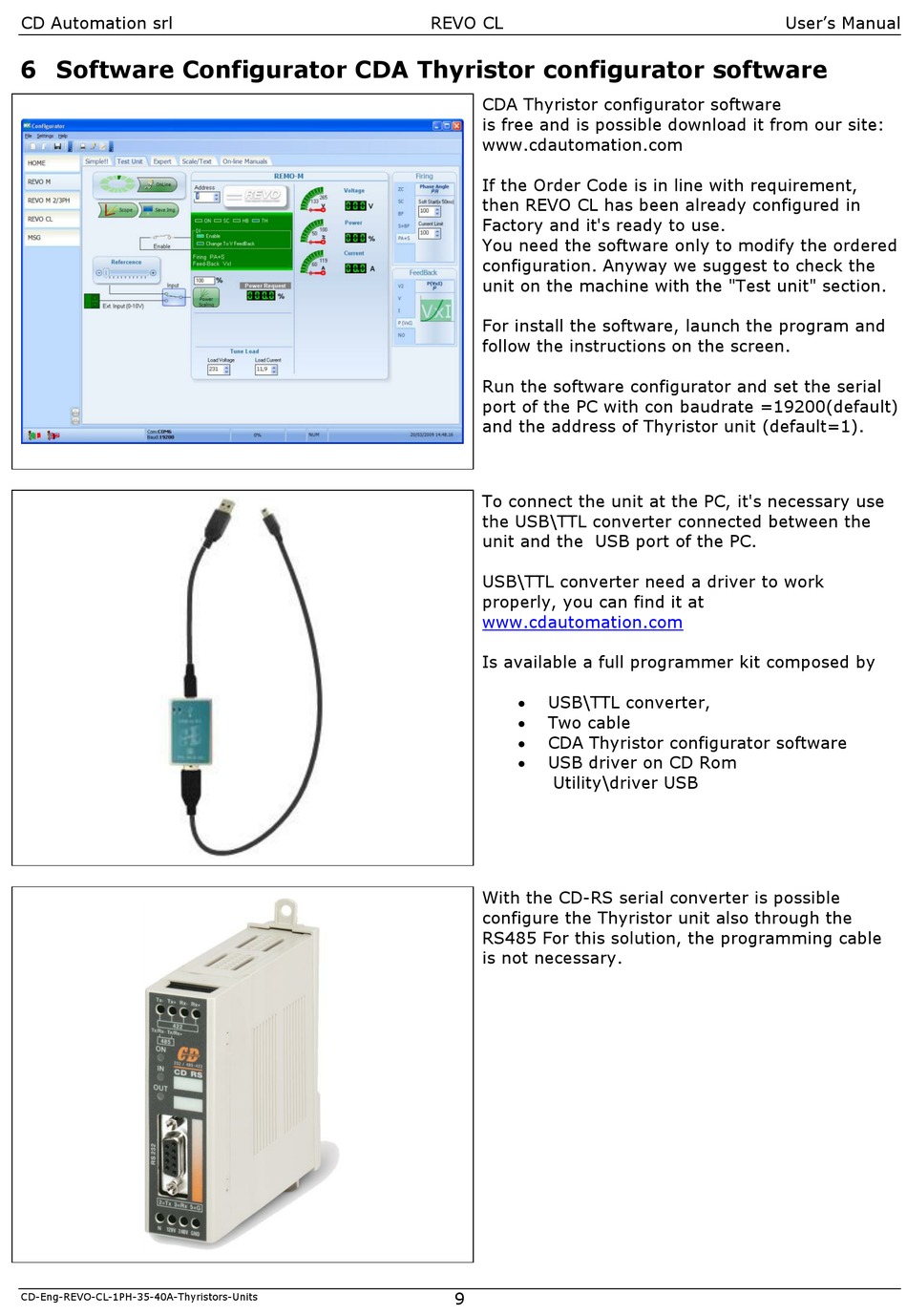

6 Software Configurator CDA Thyristor configurator software

CD-Eng-REVO-CL-1PH-35-40A-Thyristors-Units
REVO CL
CDA Thyristor configurator software
is free and is possible download it from our site:
www.cdautomation.com
If the Order Code is in line with requirement,
then REVO CL has been already configured in
Factory and it's ready to use.
You need the software only to modify the ordered
configuration. Anyway we suggest to check the
unit on the machine with the "Test unit" section.
For install the software, launch the program and
follow the instructions on the screen.
Run the software configurator and set the serial
port of the PC with con baudrate =19200(default)
and the address of Thyristor unit (default=1).
To connect the unit at the PC, it's necessary use
the USB\TTL converter connected between the
unit and the USB port of the PC.
USB\TTL converter need a driver to work
properly, you can find it at
www.cdautomation.com
Is available a full programmer kit composed by
 USB\TTL converter,
 Two cable
 CDA Thyristor configurator software
 USB driver on CD Rom
Utility\driver USB
With the CD-RS serial converter is possible
configure the Thyristor unit also through the
RS485 For this solution, the programming cable
is not necessary.
