24Vdc input Auxiliary supplemental power

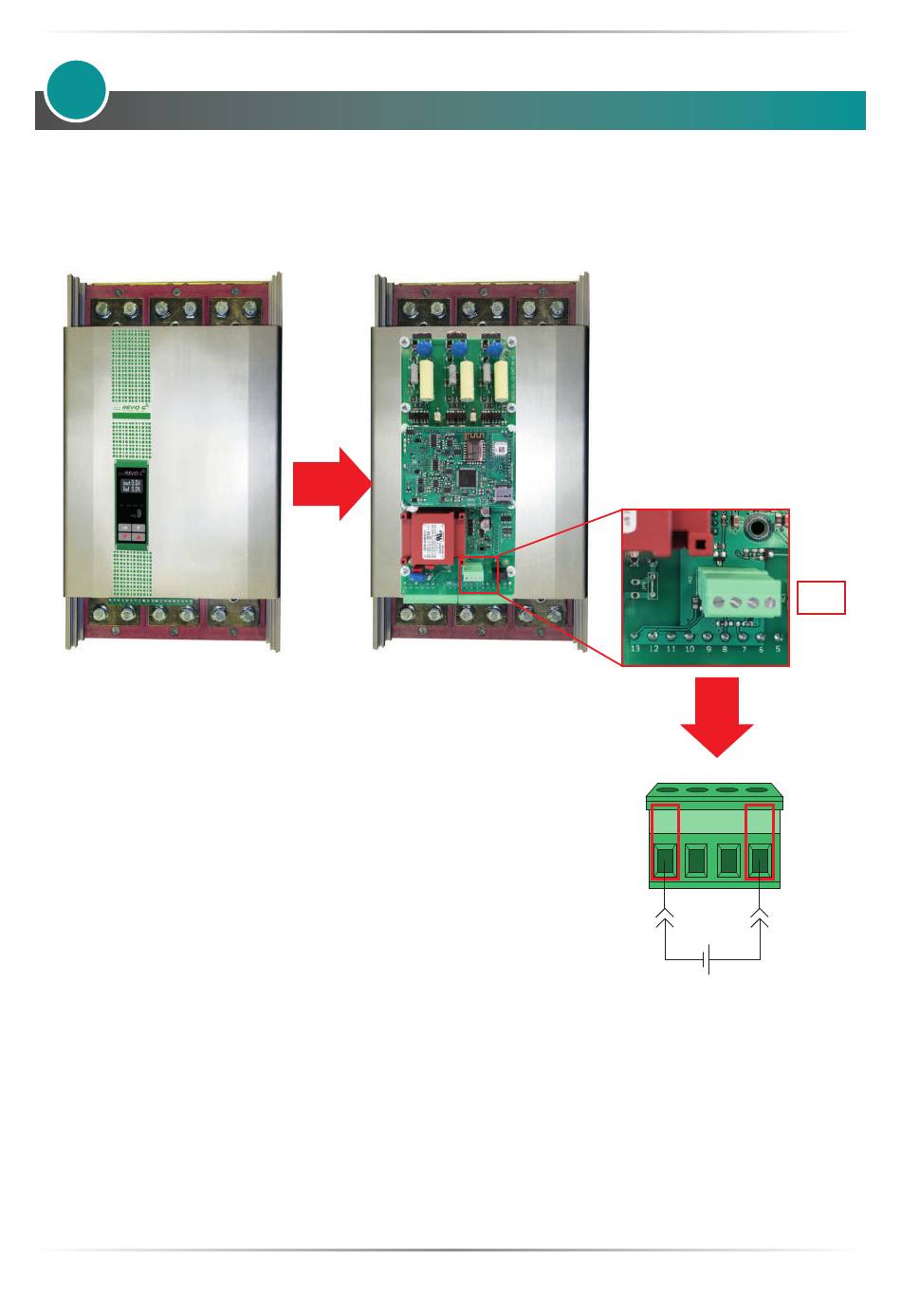

The 24Vdc Auxiliary Supply input in Terminal Block M2, terminals 1 and 4, can be used as an auxiliary power
supply when the main network fails. This auxiliary power supply keeps the communication circuits powered
allowing data to be transferred to the supervision system.
1 2 3 4
M2
1 2 3 4
–
+
+24VDC Input
± 5%
Current: 500mA
