2-2 Spectrum Analyzer Function Verification
Test Setup
to rear panel
connector

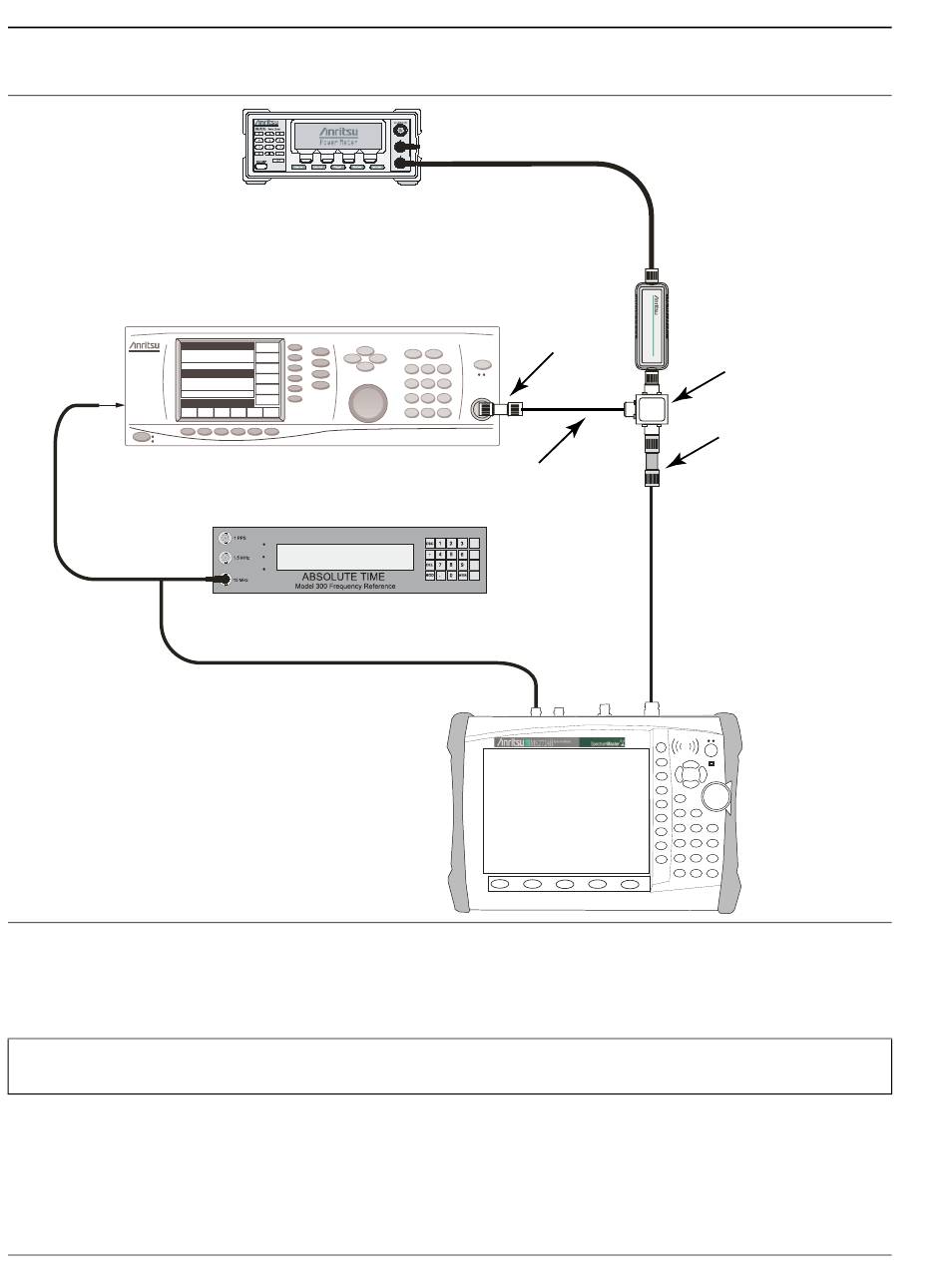

Figure 2-12. Fixed Level with Varying Frequency – Test Setup
Procedure:
1. Connect the equipment as shown in
To maintain test setup integrity, Do Not Disconnect Sensor B, the power splitter, or the fixed
Note
attenuator.
2. Set the MS2723B or MS2724B to Spectrum Analyzer mode and then preset the Spectrum Master.
3. Press the BW soft key. Then set the RBW to 1 kHz, and set the VBW to 10 Hz.
4. Press the Span soft key, set span to 10 kHz.
5. Set the MG3692x frequency to 10.1 MHz CW.
2-26
ML2438A Power Meter
MG369XA Source
10 MHz Reference
MS2724B
Figure 2-12.
PN: 10580-00165 Rev. D
Adapter
15NNF50-1.5B
Models MS2723B and MS2724B MM
Performance Verification
Sensor B
1870A
Power Splitter
10 dB
Attenuator
