Anritsu Spectrum Master MS2723B Maintenance Manual page 77

Performance Verification
MG3700A
MG3700
Vector Signal
Generator
250kHz-6GHz
(to back panel)
10 MHz Reference

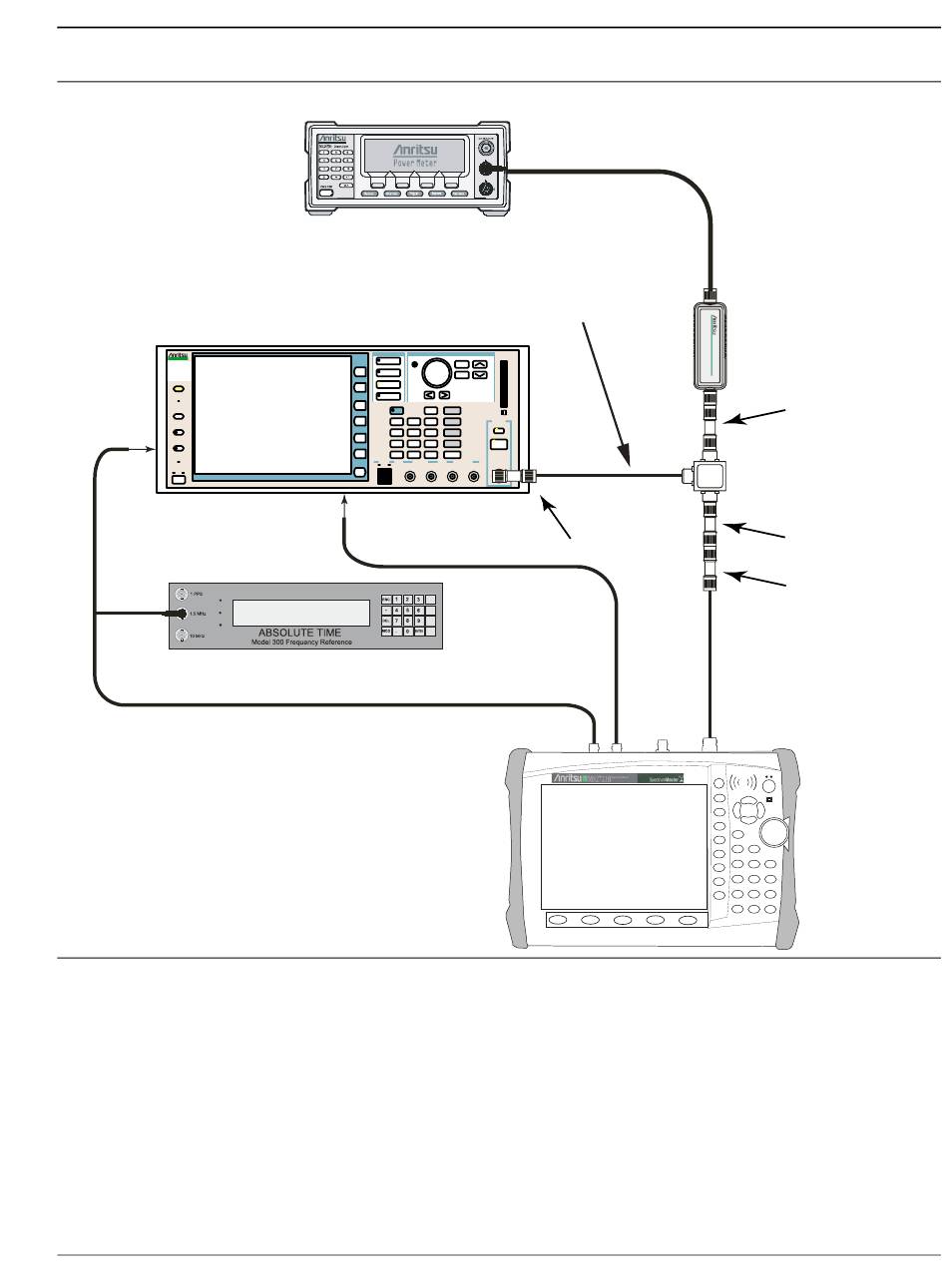

Figure 2-24. TD-SCDMA Signal Analyzer Option Verification – Test Setup
Setup Procedure:
1. Connect the equipment as shown in
2. Calibrate the power sensor prior to connecting to the power splitter.
3. On the power meter, press the Sensor key, the Cal Factor soft key, and then the Freq soft key. Use the
keypad to enter 2010 MHz as the input signal frequency, which sets the power meter to the proper power
sensor calibration factor. Press the System key to display the power reading.
4. Set the power meter to Averaging, Moving, and 256 samples.
5. Set the MS272xB to TD-SCDMA Signal Analyzer mode and preset the instrument.
Models MS2723B and MS2724B MM
ML2438A Power Meter
Function Cursor/Edit
Ethernet Control Input Modulation Input
AUX Input/Output
Connector 1
To Ext Ref In
MS2724B
Figure 2-24.
PN: 10580-00165 Rev. D
2-9 TD-SCDMA Signal Analyzer Option Verification
15NNF50-1.5B
RF Output
Adapter
Ext
Trigger In
MA2482D
Power Sensor
10dB Fixed
Attenuator
Power
Splitter 1870A
N(m) to N(m)
Adapter
10dB Fixed
Attenuator
2-63
