2-10 EV-DO Signal Analyzer Option Verification
MG3700A
MG3700
Vector Signal
Generator
250kHz-6GHz
(to back panel)
10 MHz Reference

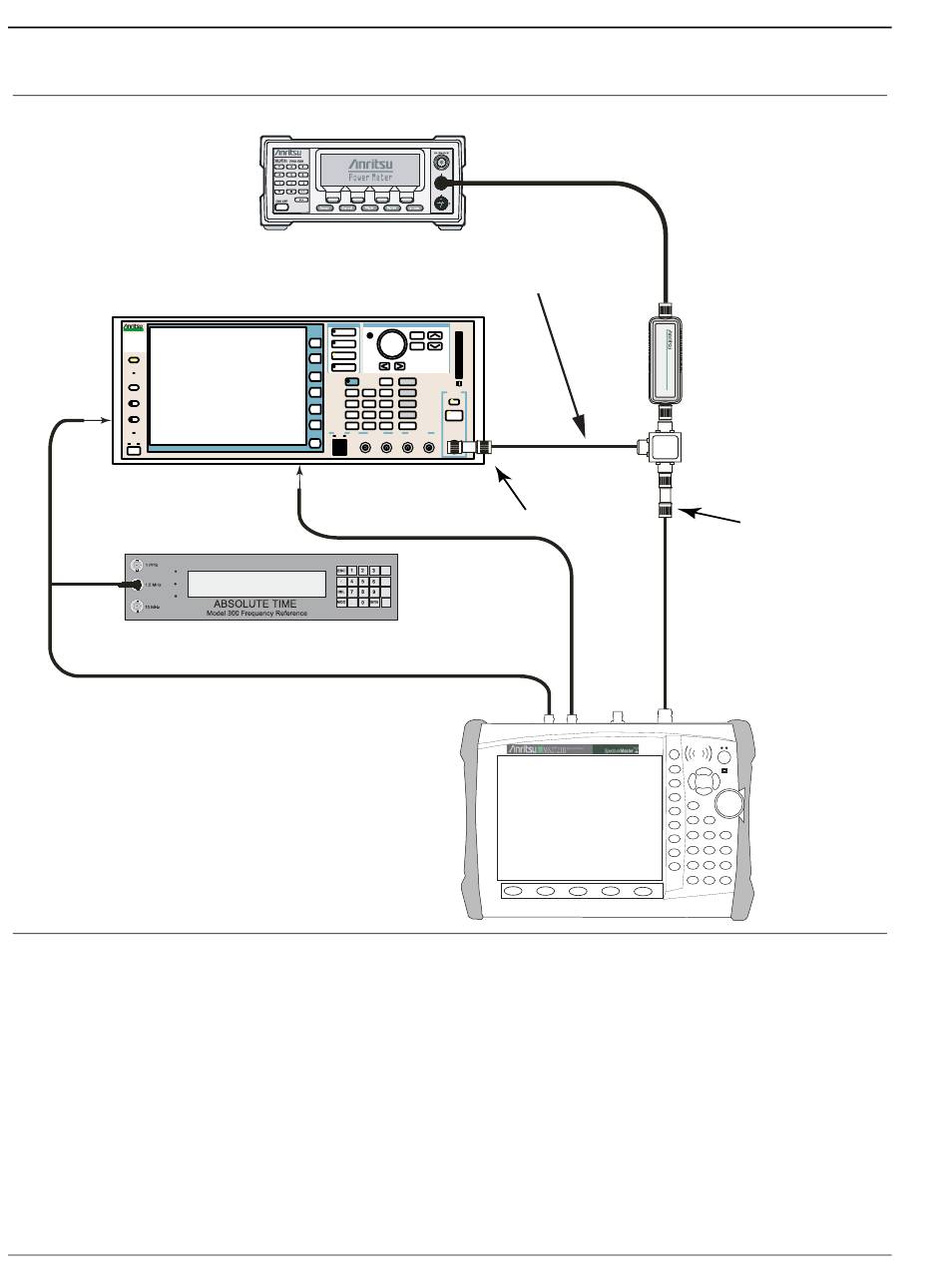

Figure 2-25. EV-DO Signal Analyzer – Test Setup
Set up Procedure:
1. Connect the equipment as shown in
2. Calibrate the power sensor prior to connecting to the power splitter.
3. On the power meter, press the Sensor key, the Cal Factor soft key, and then the Freq soft key. Use the
keypad to enter 870.03 MHz as the input signal frequency, which sets the power meter to the proper
power sensor calibration factor. Press the System key to display the power reading.
4. Set the MS2723B or MS2724B mode to EV-DO Signal Analyzer. Preset the instrument.
2-66
ML2438A Power Meter
Function Cursor/Edit
Ethernet Control Input Modulation Input
AUX Input/Output
Connector 1
To Ext Ref In
MS2724B
Figure 2-25.
PN: 10580-00165 Rev. D
15NNF50-1.5B
RF Output
Adapter
Ext
Trigger In
Performance Verification
MA2482D
Power Sensor
Power
Splitter 1870A
N(m) to N(m)
Adapter
