Anritsu Spectrum Master MS2723B Maintenance Manual page 72

2-8 Fixed WiMAX Signal Analyzer Verification
.
MG3700
Vector Signal
Generator
250kHz-6GHz
(to back panel)

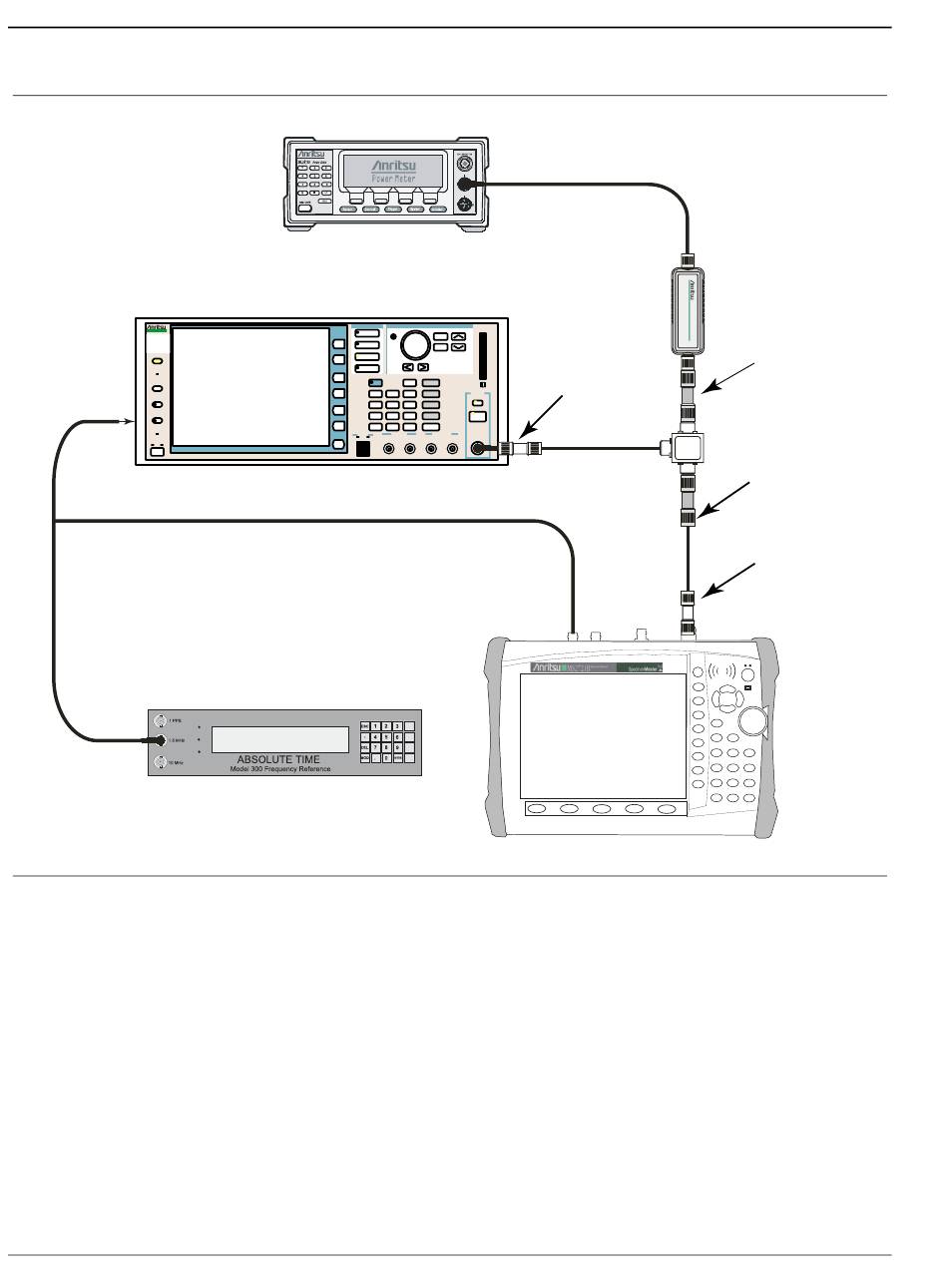

Figure 2-23. Fixed WiMAX Signal Analyzer – Test Setup
Procedure:
1. Connect the MA2482D Power Sensor to the power meter and zero the meter.
2. Set the calibration factor frequency of the power sensor to 2600.5 MHz.
3. Connect the Power Sensor, 1870A splitter, and 10 dB attenuators (quantity 2) as shown in
Figure 2-23, "Fixed WiMAX Signal Analyzer – Test Setup" on page 2-58
4. Set the MG3700A as follows:
a. Press the yellow Preset button (answer yes to the question).
b. Press the Set key.
c. Press the (F1) soft key to select "Load File to Memory".
d. Press the (F1) soft key again to select "Select Package".
2-58
ML2438A Power Meter
MG3700A
Function
Ethernet
10 MHz Reference
PN: 10580-00165 Rev. D
Cursor/Edit
34NN50A
Adapter
RF Output
Control Input Modulation Input
15NN50-1.5B
Performance Verification
Sensor
Attenuator
Power
Splitter 1870A
Attenuator
34NN50A
Adapter
MS2724B
Models MS2723B and MS2724B MM
10 dB
10 dB
