Chapter 4: System Setup

C 4: s
haPter ystem

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit's power
CAUTION! CAUTION!
CAUTION! is off and disconnected from the power sources to prevent
electric shock or system damage.

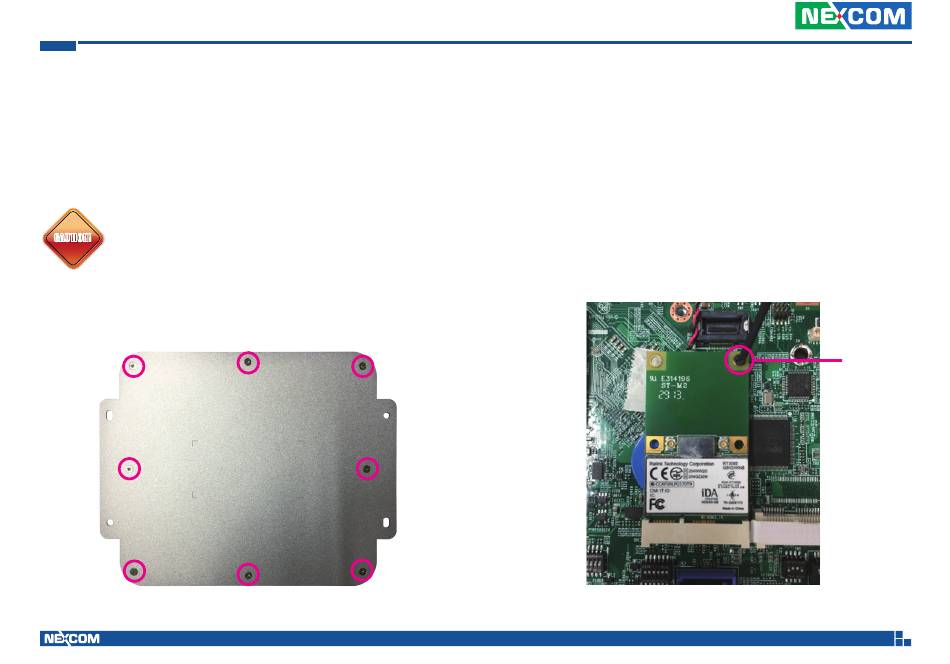

1. The screws circled on the bottom are used to secure the chassis.
Remove these screws and put them in a safe place for later use.
Bottom View
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
s
etuP
27

Installing a WLAN Mode

1. Locate the WLAN Mini PCI Express slot (CN8). Insert the module into
the Mini PCI Express slot at a 45 degrees angle until the gold-plated
connector on the edge of the module completely disappears inside the
slot. Then fasten a screw into the mounting hole to secure the module.
Mounting
screw
