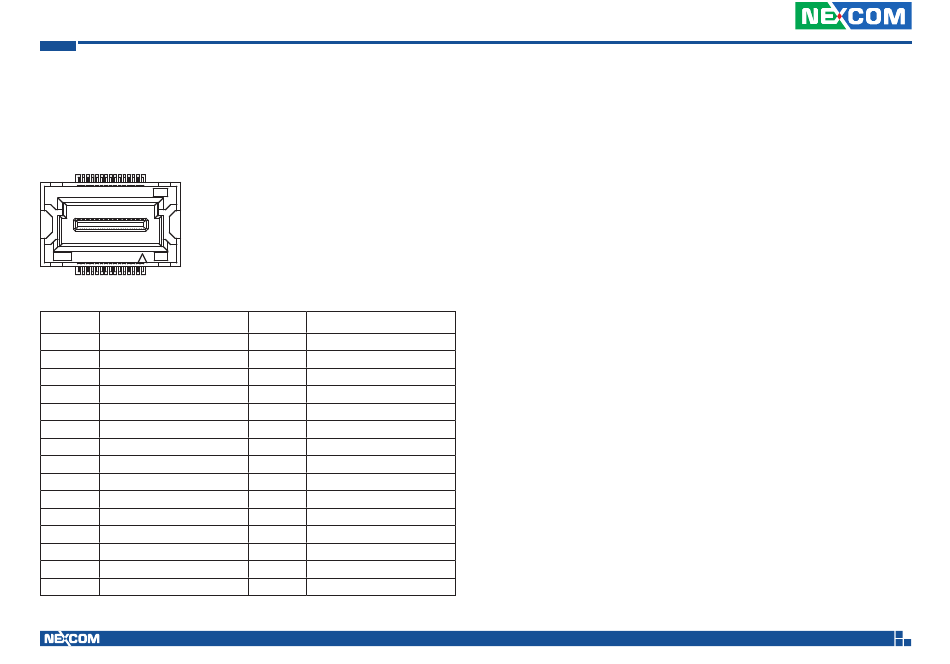

Chapter 3: Jumpers and Switches

HDMI BD to BD

Connector size: 2 x 15 = 30-pin header
Connector location: JP5
30 2
29 1
Pin Definition
1 GND
3 DPC0_LANE0_P_C
5 DPC0_LANE0_N_C
7 GND
9 DPC0_LANE1_P_C
11 DPC0_LANE1_N_C
13 GND
15 DPC0_LANE2_P_C
17 DPC0_LANE2_N_C
19 GND
21 DPC0_LANE3_P_C
23 DPC0_LANE3_N_C
25 GND
27 HDMI_DATA
29 HDMI_CLK
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 HDMI_HPD
4 GND
6 GND
8 GND
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 VCC3
26 VCC3
28 VCC5
30 VCC5
