Chapter 2: External Connectors Pinout Description

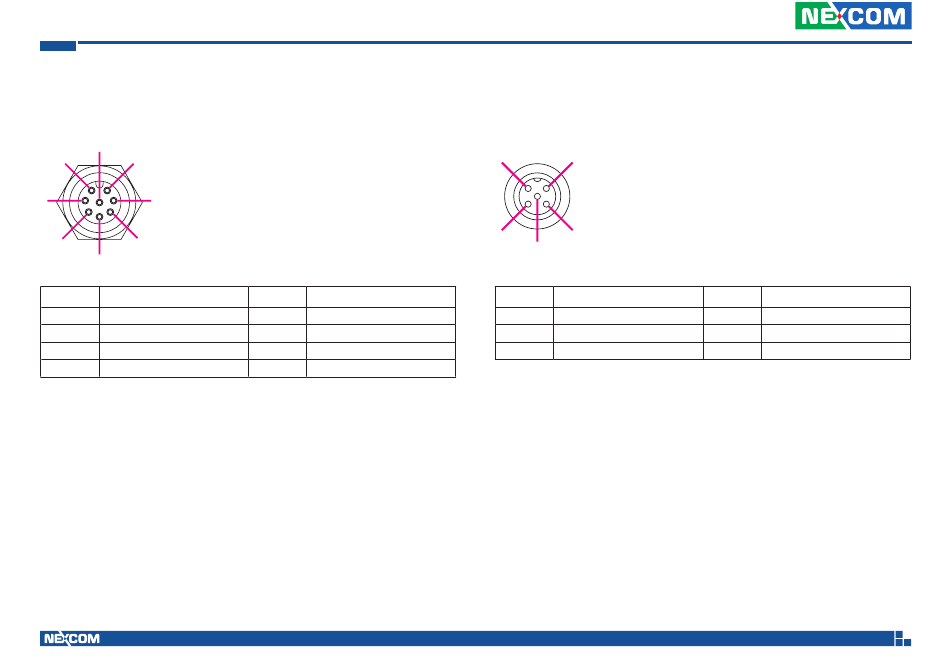

M12 LAN Ports: LAN1/LAN2

Connector number: 5
8
1 2
7 3
4
6
5
Pin Definition
1 LAN_MDI_0P_R
3 LAN_MDI_1P_R
5 LAN_MDI_2P_R
7 LAN_MDI_3P_R
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LAN_MDI_0N_R
4 LAN_MDI_1N_R
6 LAN_MDI_2N_R
8 LAN_MDI_3N_R

Power Connector

Connector number: 6
1 2
4 3
5
Pin Definition
1 VIN
3 GND
5 IGNITION
8
Pin Definition
2 VIN
4 GND
