Chapter 3: Jumpers and Switches
VTC 1911 Connector Specification & Jumper Setting

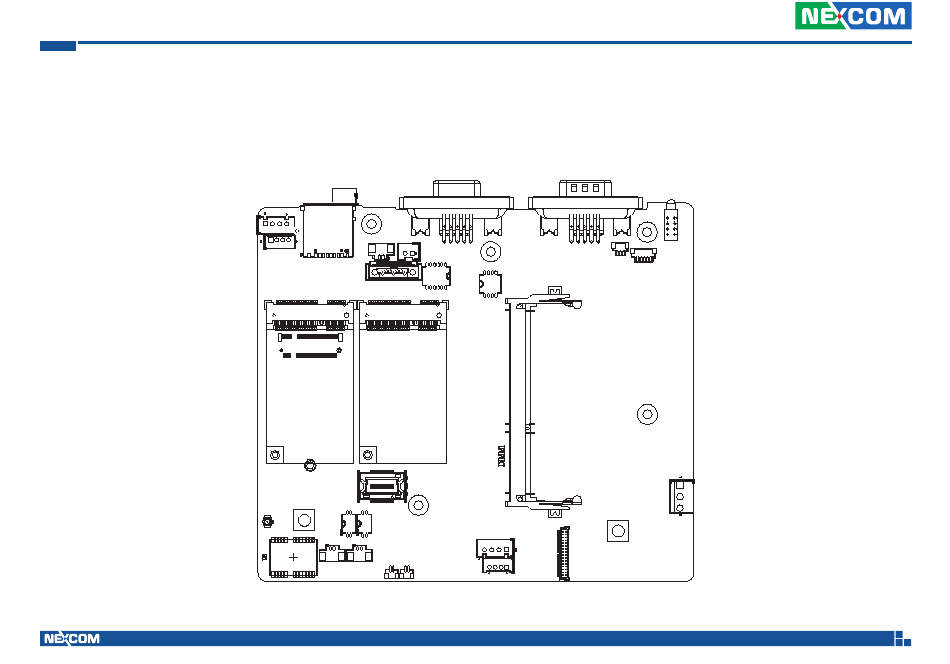

VTC 1911 carrier board placement
The figure below is the carrier board used in the VTC 1911 system. It shows the locations of the jumpers and connectors.
J1
J8
J6
LED4
J2
SW4
J12
J13
SW5
CN7
CN2
CN8
CN3
JP5
CN11
CN1
SW2
SW3
J9
J11
CN6 J5
J10
CN5
J4
12
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
VTC 1911 User Manual
