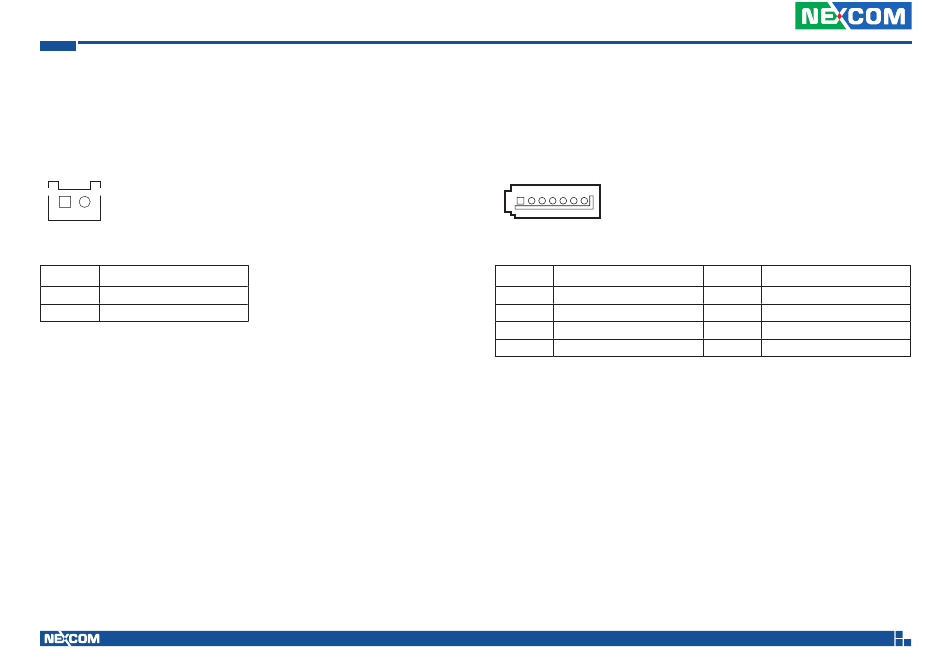

Chapter 3: Jumpers and Switches
Power On/Off Button
Connector size: 1 x 2 = 2-pin header (1.0mm)
Connector location: CN6
1
2
Pin
Definition
1
PWRBT_IN#
2
GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
SATA Connector
Connector size: 1 x 7 = 7-pin header (1.27mm)
Connector location: CN7
1
7
Pin
Definition
1
GND
3
SATA_TXN0
5
SATA_RXN0
7
GND
21
Pin
Definition
2
SATA_TXP0
4
GND
6
SATA_RXP0
