Appendix F: Pin Definition for the Multiport Cables

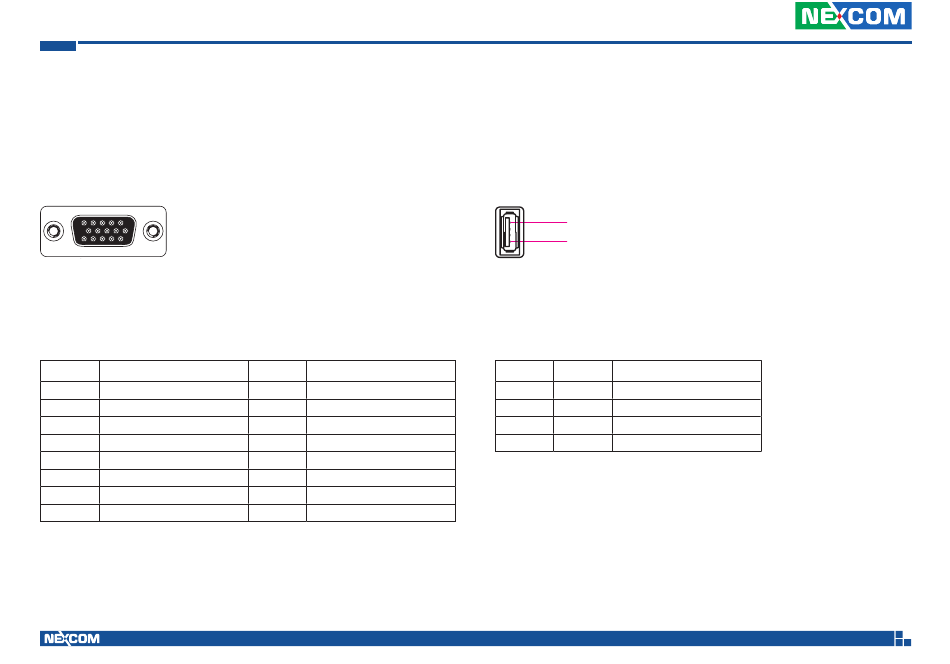

P6 Connector Pinout

5 1
Female
15 11
Pin Definition
1 USB-
3 MCU_485_TX-
5 MIC_R_IN
7 GND
9 SPK_OUT_L
11 DATA_L
13 DATA_GND
15 Audio_GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB VCC
4 SPK_OUT_R
6 USB+
8 MCU_485_TX+
10 MIC_L_IN
12 DATA_H
14 GND

P1 to P5 Connector Pinouts

USB 2.0 Connector

Connector location: P1
4
1
P6 Pin P1 Pin
2 1
1 2
6 3
7 4
51
Definition
USB VCC
USB-
USB+
GND
