Chapter 2: Jumpers and Connectors

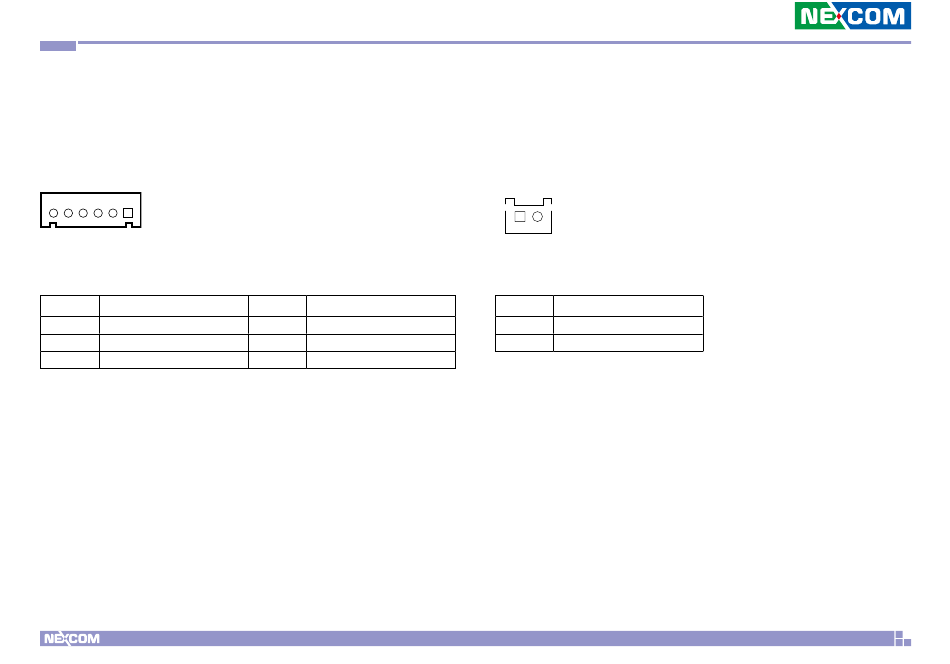

USB Touch

Connector type: 1x6 6-pin header JST, 2.5mm pitch
Connector location: W_USB
6
1
Pin
Definition
1
+5V_USB2_P2
3
S_USB2DP2
5
S_USB2DP6
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
S_USB2DN2
4
S_USB2DN6
6
GND

System Power Button Header

Connector type: 1x2 2-pin header JST, 2.0mm pitch
Connector location: J1
1
2
Pin
Definition
1
GND
2
PWRBTN#
